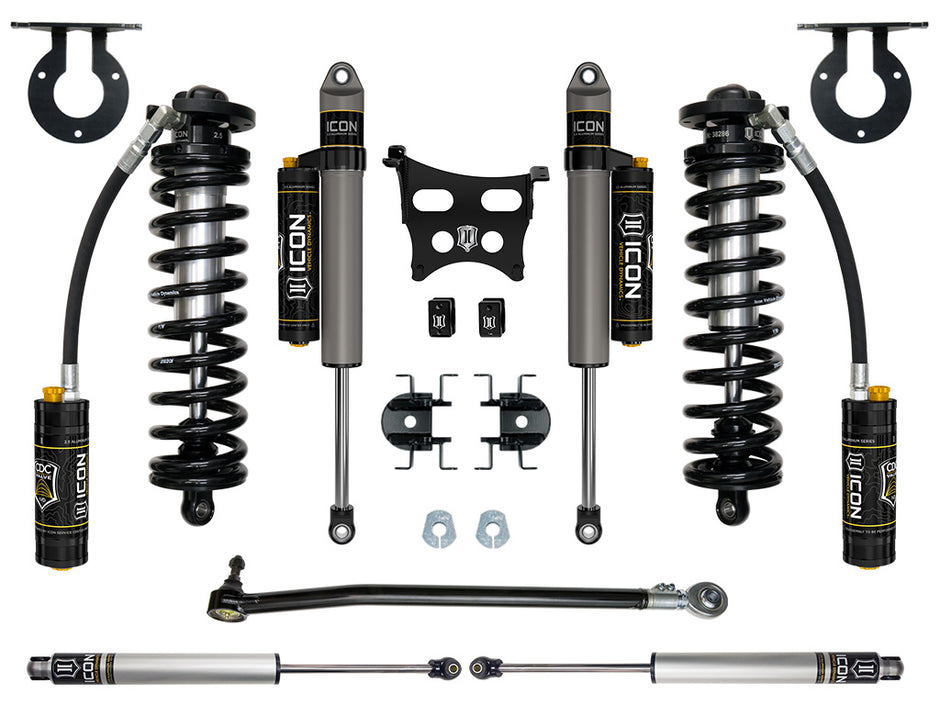

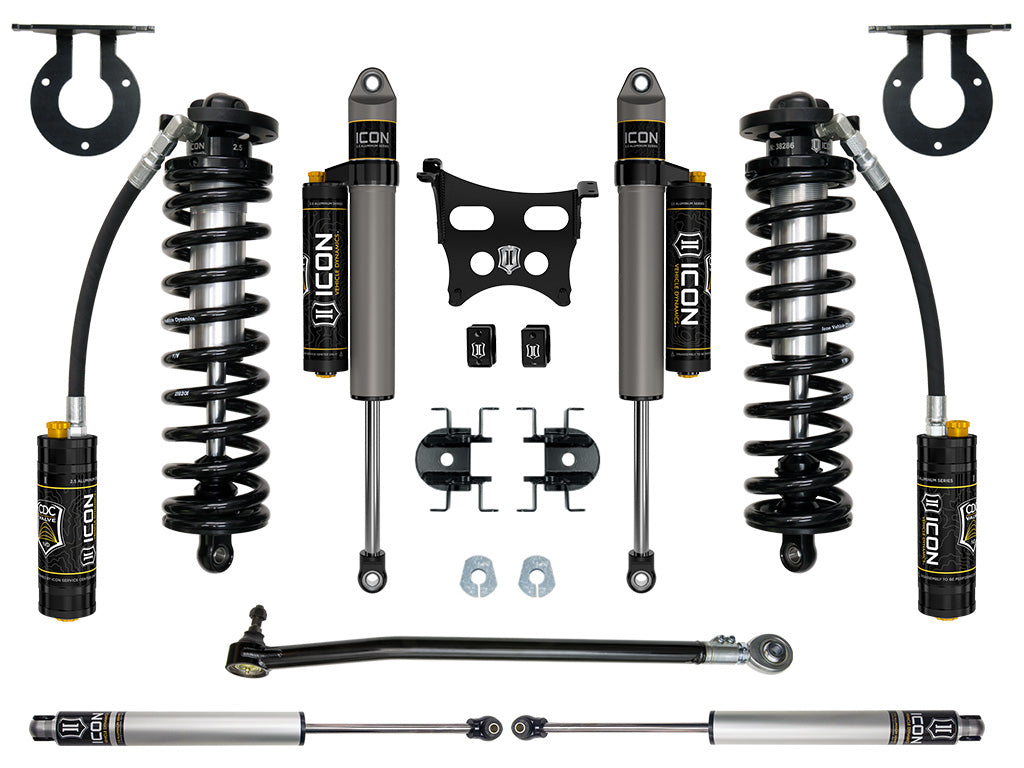

ICON 2023 Ford F-250/F-350 Super Duty 4WD 2.5-3" Lift Stage 4 Coilover Conversion System

This ICON Vehicle Dynamics 2.5-3” coilover system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 4 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. ICON's Stage 4 System is comprised of ICON 2.5 Series CDCV remote reservoir coilovers with adjustable ride height, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, on-vehicle adjustable front track bar, and ICON CDCV 2.5 Aluminum Series piggyback reservoir rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• Bolt-in system fits in OE coil bucket location
• Adjustable track bar ensures proper axle placement and improves handling
• Dual steering stabilizer kit for smooth wheel control while driving
• ICON engineered coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Ride height adjustable coilovers provide 2.5-3" of lift
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish

Vehicle Specific

• ICON 23 FORD F250/F350 2.5-3" STAGE 4 COILOVER CONVERSION SYSTEM

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103423906
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 3
• 7325: 2
• 9271: Linear
• 11410: 3.5
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Damping Adjustment Type: Manual
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 3
• Minimum Lift Front: 1.5
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 142.0000 POUNDS
