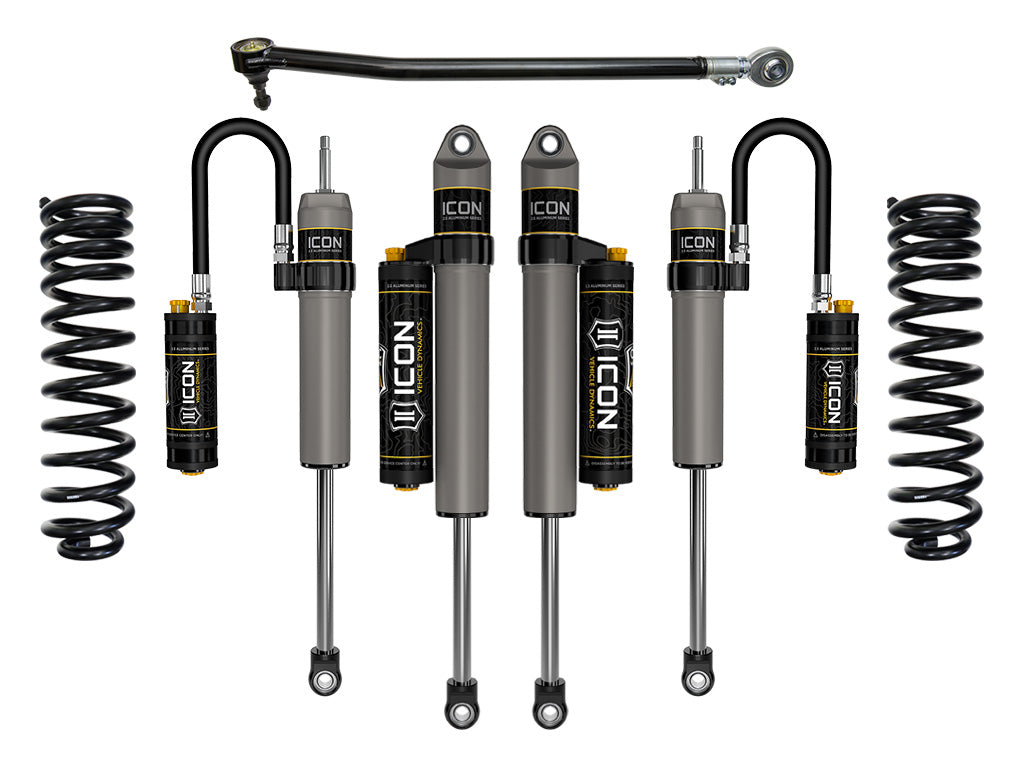

This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 4 system is perfect for on-road and off-road use including towing, job site duty, and spirited off-road adventure. ICON's Stage 4 System combines dual rate coil springs optimized for trucks equipped with gasoline engines, alignment cams, ICON CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, and an all-new adjustable track bar designed specifically for the 2017-2024 Super Duty. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.
- Fits 2023 F-250 / F-350 4WD gas applications
- Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- Approximately 25% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- ICON CDC Valve allows quick and easy end user compression adjustability
- Shocks are fully rebuildable and revalvable
Vehicle Specific
- ICON 23 FORD F250/F350 GAS 2.5" STAGE 4 SUSPENSION SYSTEM
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103426266
-
30: Yes
-
2064: Steel
-
2371: Yes
-
3096: Black
-
3097: Yes
-
3390: Performance
-
4427: Black
-
4428: Steel
-
5520: 2.5
-
7325: 2
-
11410: 2.5
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Active or Passive Suspension: Passive
-
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
-
Adjustable Compression: Yes
-
Adjustable Damping: Yes
-
Adjustable Rebound: No
-
California Prop 65 Warning: Yes
-
Coil Quantity Front: 2
-
Damping Adjustment Type: Manual
-
Front Reservoir Style: Remote
-
Front Shock Body Diameter: 2.5
-
Front Spring Rate Type: Progressive Dual Rate
-
Maximum Lift Front: 2.5
-
Minimum Lift Front: 1.5
-
OEM Wheels & Tires Fitment: Yes
-
Rear Reservoir Style: Piggyback
-
Rear Shock Body Diameter: 2.5
-
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
-
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
-
Country of Origin: United States
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 27.0000 x 12.0000 x 6.0000 inches
-
Weight: 144.0000 POUNDS
PDF:
