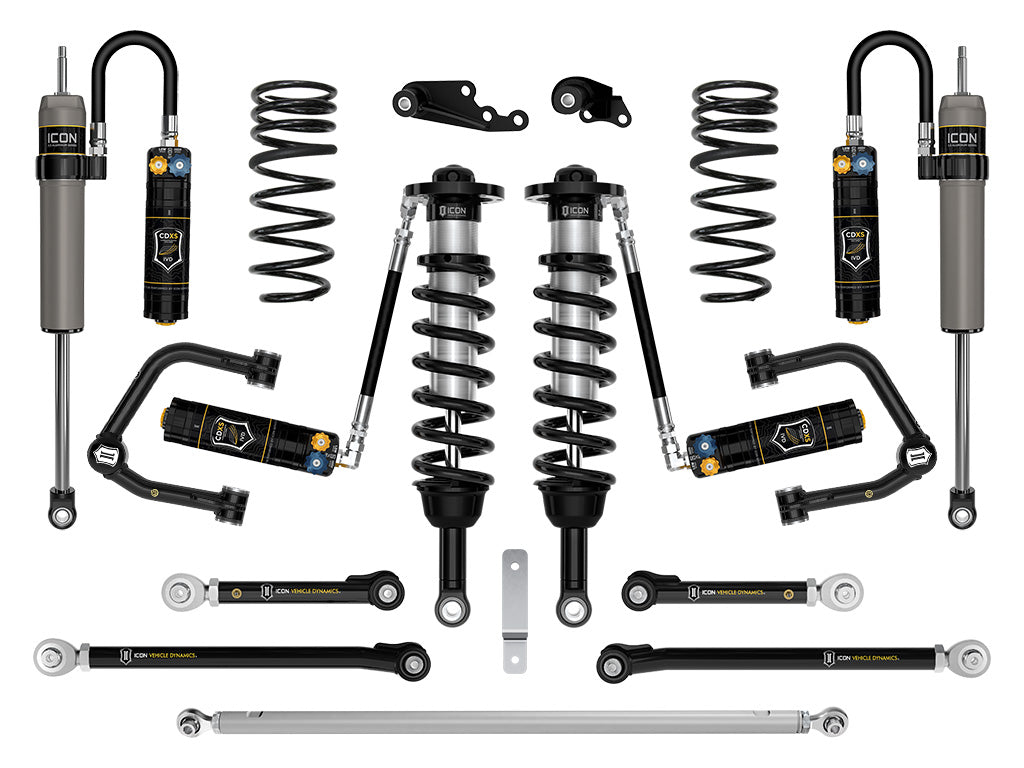

Continue shoppingICON 2024-2025 Lexus GX550 1.25-3" Lift Stage 9 Suspension System CDXS Tubular
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$7,654.29
-0%
Regular price
$7,654.29
Regular price
$7,654.29
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
The included ICON tubular upper control arm kit is designed to improve the overall performance of the Lexus GX550 with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON tubular rear upper and lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. ICON 2.5 Aluminum Series CDXS remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Lexus GX550 Stage 9 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
- On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
- All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable coilovers provide 1.25-3" front lift height over stock
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- ICON 24-25 GX550 1.25-3" STAGE 9 SUSPENSION SYSTEM CDXS TUBULAR
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103431802
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 3
- 7325: 2
- 7326: 2
- 9271: Linear
- 11410: 3
- 11411: 2
- Active or Passive Suspension: Passive
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Compression: Yes
- Adjustable Control Arm: No
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Coil Quantity Front: 2
- Damping Adjustment Type: Dual Speed Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 3
- Maximum Lift Rear: 2
- Minimum Lift Front: 1.25
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Remote
- Rear Shock Body Diameter: 2.5
- Rear Spring Rate Type: Progressive Dual Rate
- Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 241.0000 POUNDS
