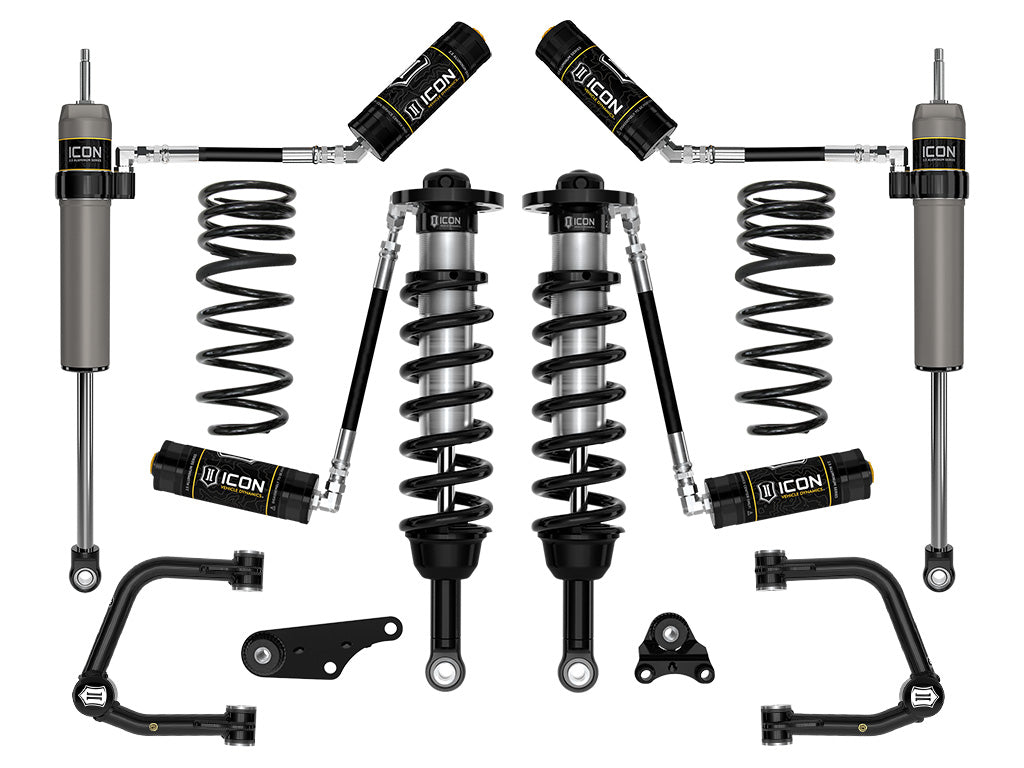

ICON 2024-2025 Toyota Land Cruiser 250 Series 1.25-3" Lift Stage 5 Suspension System Tubular

The included ICON tubular upper control arm kit is designed to improve the overall performance of the Land Cruiser with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Land Cruiser 250 Series Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift

Vehicle Specific

• ICON 24-25 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 5 SUSPENSION SYSTEM TUBULAR

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103430621
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 3
• 7325: 2
• 7326: 2
• 9271: Linear
• 11410: 3
• 11411: 2
• Active or Passive Suspension: Passive
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Compression: No
• Adjustable Control Arm: No
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 3
• Maximum Lift Rear: 2
• Minimum Lift Front: 1.25
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5
• Rear Spring Rate Type: Progressive Dual Rate
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
• Reservoir Style: Remote

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 183.0000 POUNDS
