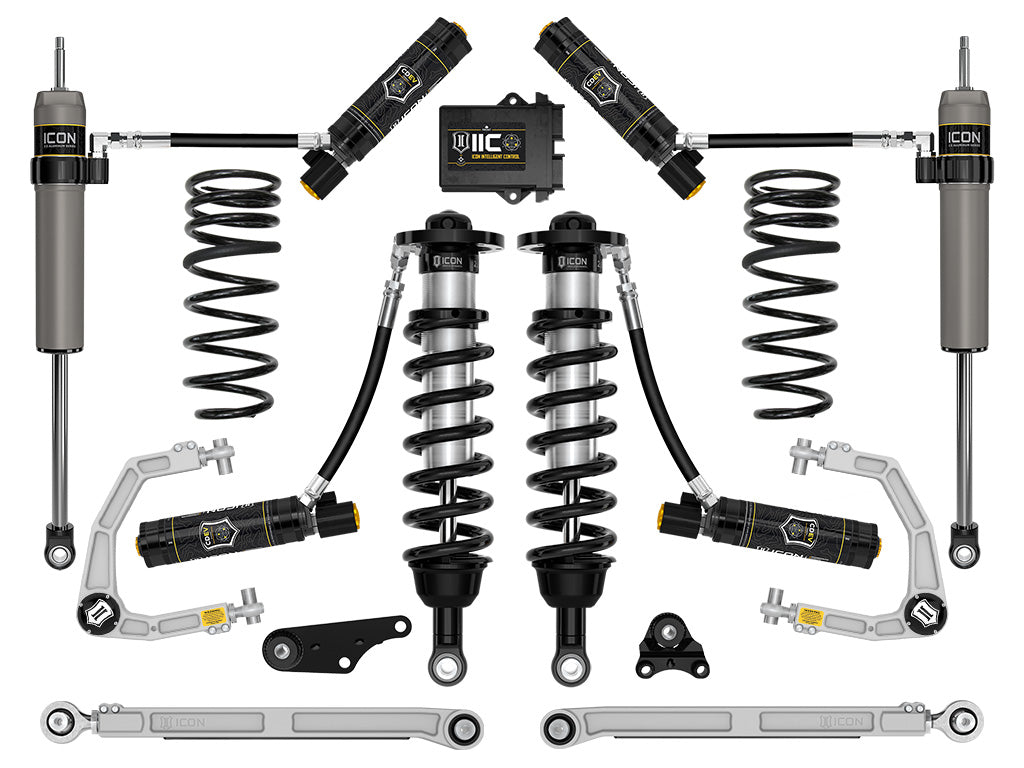

ICON 2024-2025 Toyota Tacoma 1.25-3" Lift Stage 10 Suspension System Billet Triple Rate Rear Springs

The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON billet rear lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 10 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Increased wheel travel and improved ride quality over stock
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift

Vehicle Specific

• ICON 24-25 TACOMA 1.25-3" STAGE 10 SUSPENSION SYSTEM BILLET WITH TRIPLE RATE SPRING

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103429243
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3
• 7325: 2
• 7326: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Active
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Damping Adjustment Type: Electronic
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 3
• Maximum Lift Rear: .5
• Minimum Lift Front: 1.25
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5
• Rear Spring Rate Type: Progressive Triple Rate
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 188.0000 POUNDS
