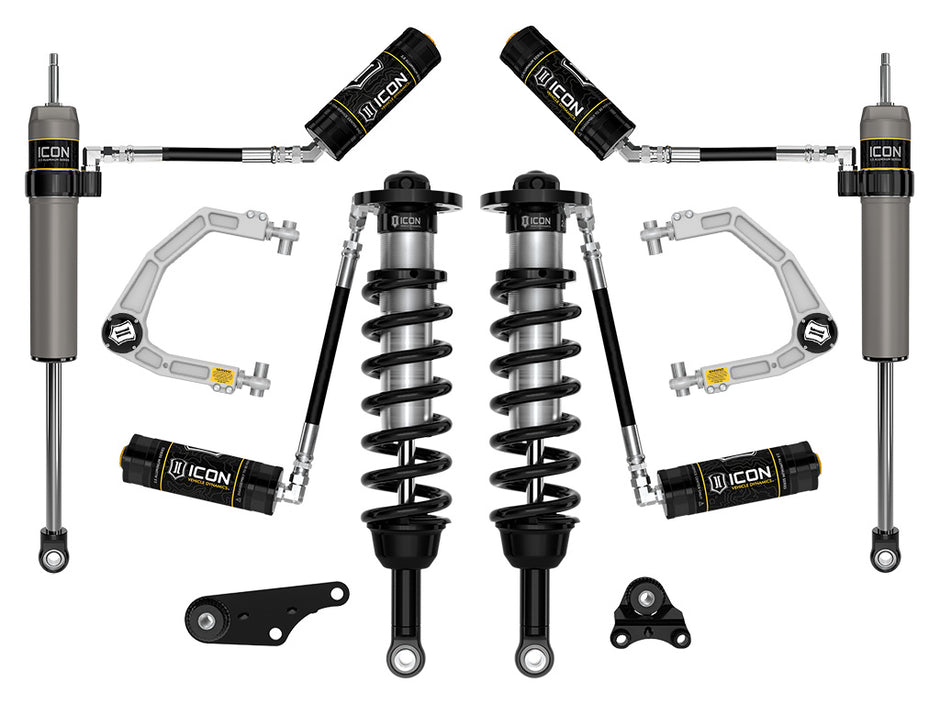

ICON 2024-2025 Toyota Tacoma 1.25-3" Lift Stage 4 Suspension System Billet

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON engineered coil springs

Vehicle Specific

• ICON 24-25 TACOMA 1.25-3" STAGE 4 SUSPENSION SYSTEM BILLET

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103429038
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3
• 7325: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Compression: No
• Adjustable Control Arm: Yes
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 3
• Minimum Lift Front: 1.25
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 121.0000 POUNDS
