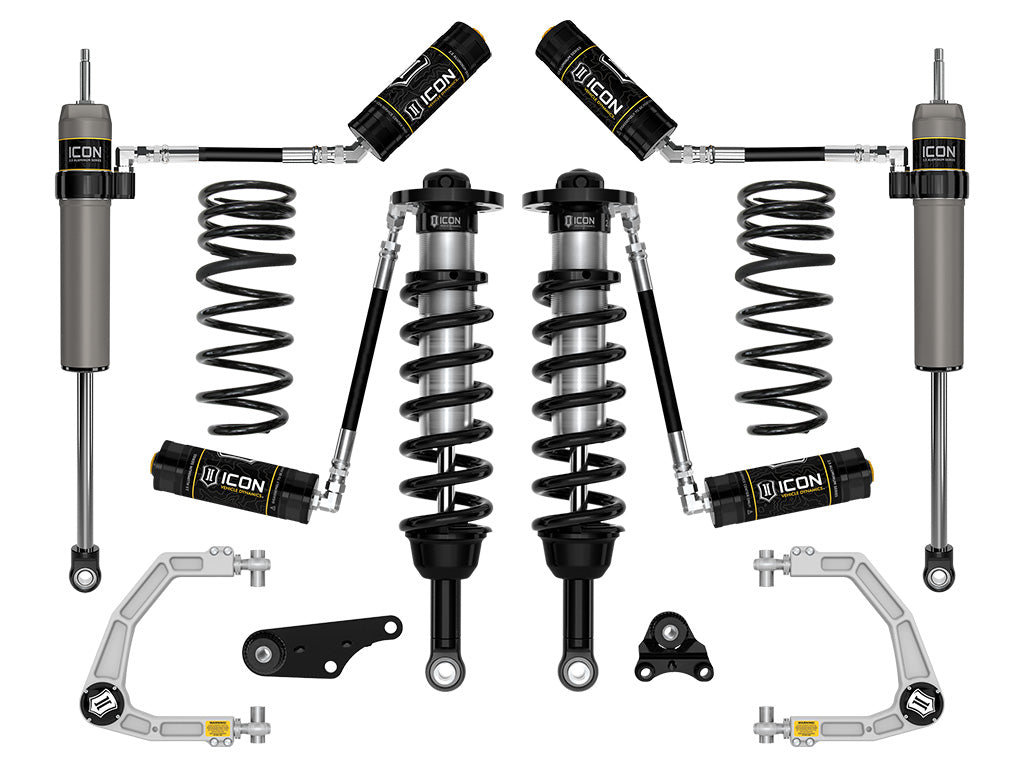

ICON 2024-2025 Toyota Tacoma 1.25-3" Lift Stage 4 Suspension System Billet Overland Rear Springs

The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These rear springs are designed to net .5" of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• ICON engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

Vehicle Specific

• ICON 24-25 TACOMA 1.25-3" STAGE 4 SUSPENSION SYSTEM BILLET OVERLAND REAR COILS

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103432755
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3
• 7325: 2
• 7326: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Compression: No
• Adjustable Control Arm: Yes
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 3
• Maximum Lift Rear: .5
• Minimum Lift Front: 1.25
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5
• Rear Spring Rate Type: Progressive Dual Rate
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 161.0000 POUNDS
