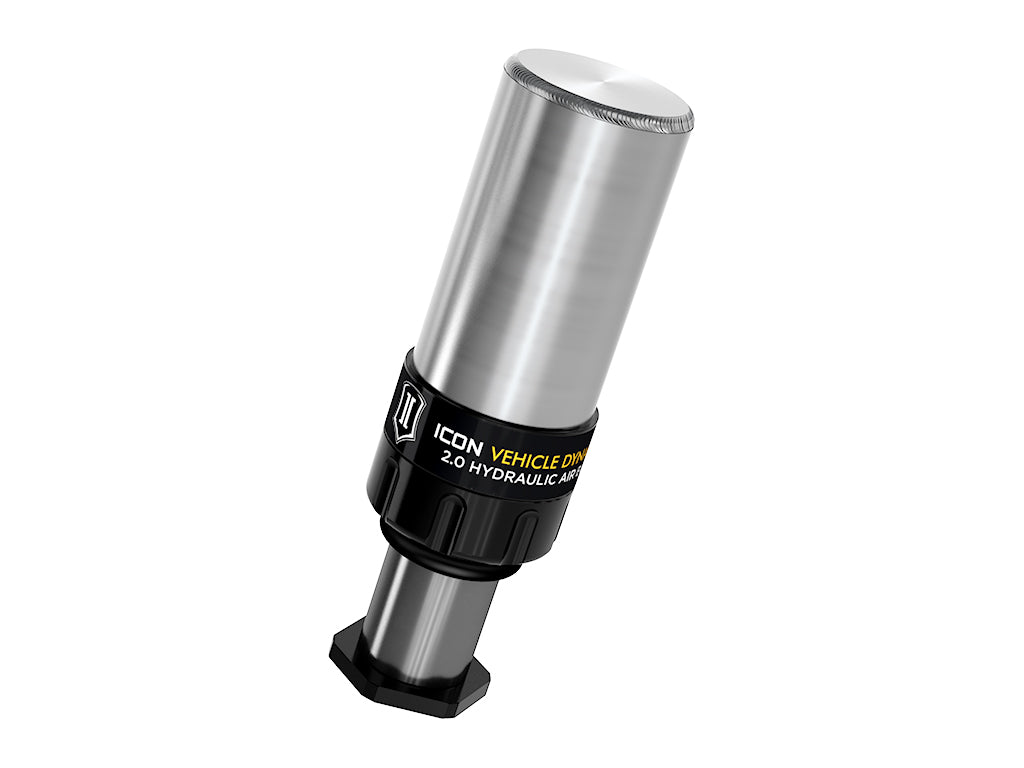

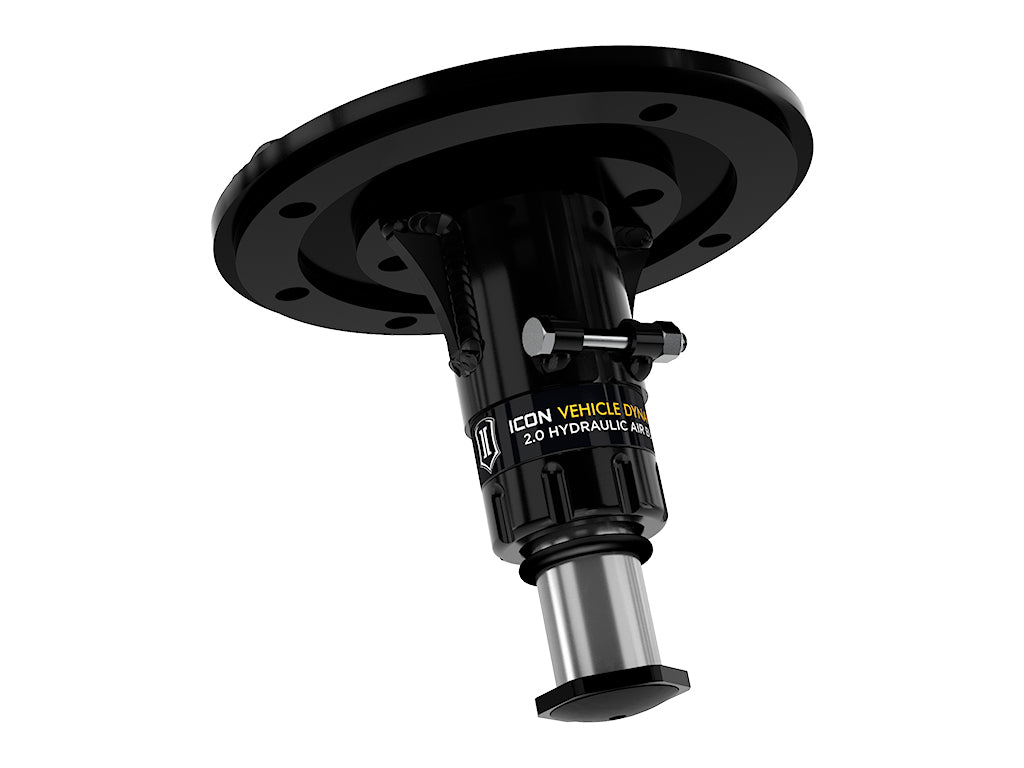

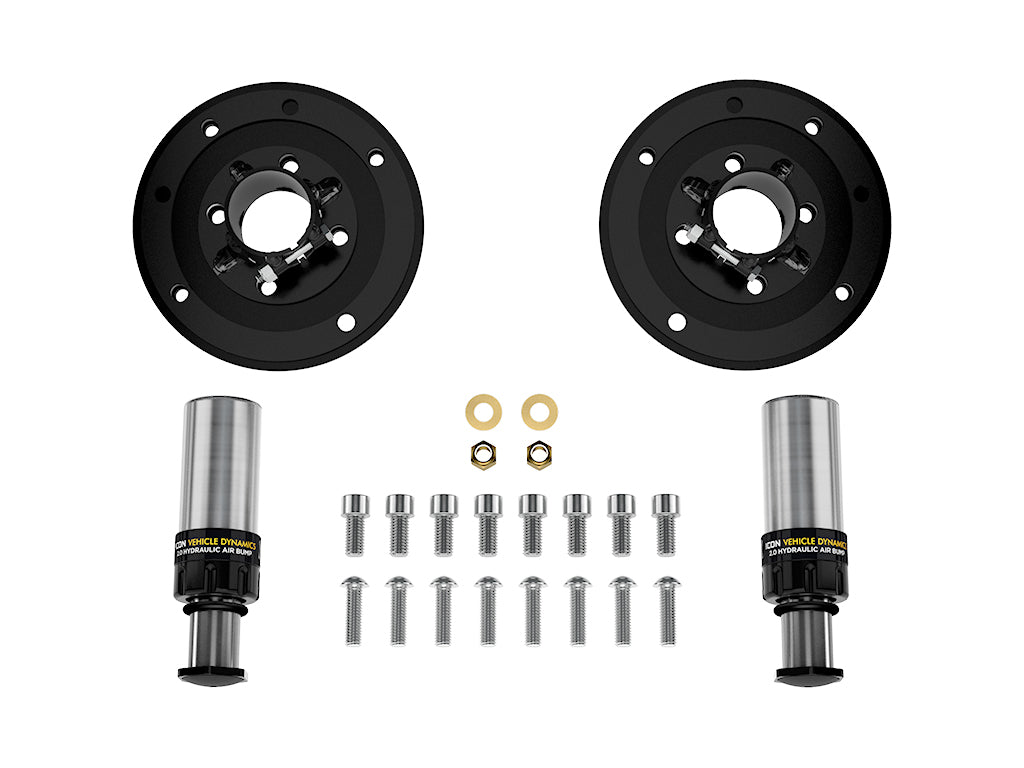

ICON 2024-2025 Toyota Tacoma Rear 2.0" Hydraulic Bump Stop Kit 1.75" Travel

This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. Simply installing on top of the rear coil springs with the included mounting brackets, you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound – This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.

• 2.0” diameter bump stops with 1.75” of travel
• Semi-gloss black powder coat finish on brackets for corrosion resistance
• 100% bolt-on installation on top of rear coil springs
• Multi stage CAD plated body for maximum corrosion resistance
• Heavy duty 1.25" diameter hardened, nitro steel shafts
• Velocity/position sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
• Replaceable, noise reducing striker pads
• CNC machined 6061 billet aluminum components
• Bump stops are fully rebuildable and re-tunable
• CNC laser cut steel mounting brackets

Vehicle Specific

• ICON 24-25 TACOMA 2.0 HYD BUMP STOP KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103431109
• 10: Aluminium
• 3390: Performance
• Attachment Type: Bolt On
• Bumper Material: Hydraulic
• Bumper Type: Hydraulic
• California Prop 65 Warning: Yes
• Color: Black
• Diameter: 2
• Grade: Performance
• Mounting Hardware Included: yes
• Mounting Hardware Required: No
• Outside Diameter: 2
• Travel Length: 1.75

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 10.0000 x 10.0000 x 4.0000 inches
• Weight: 14.0000 POUNDS
