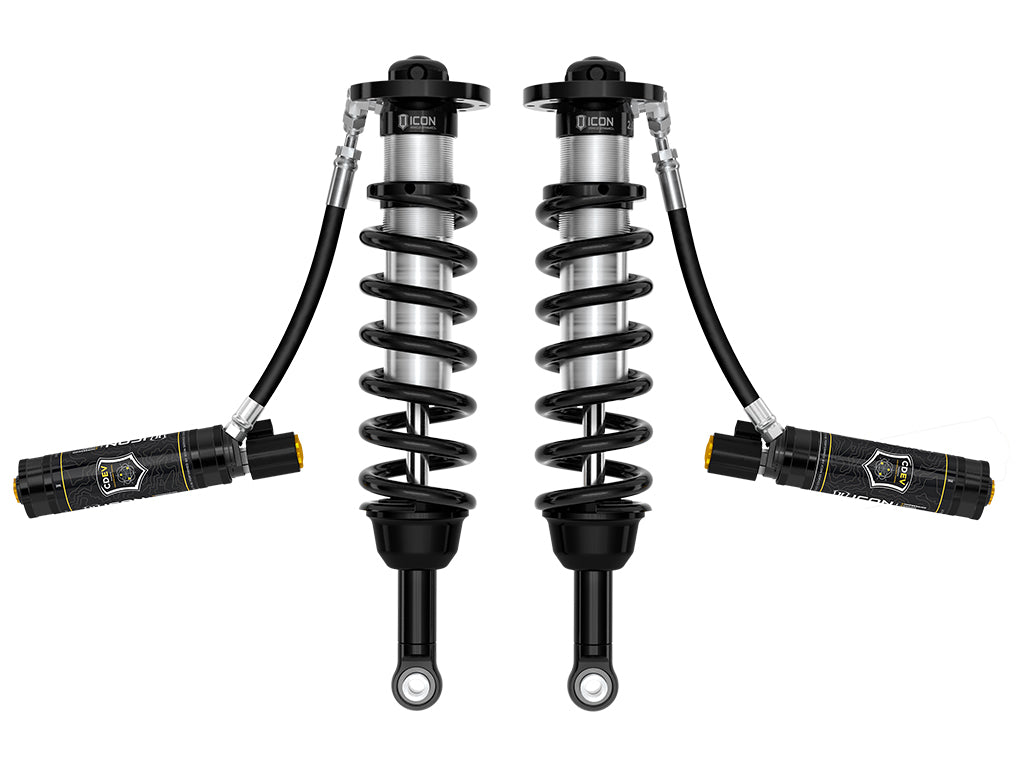

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDEV front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Fully rebuildable and re-tunable
- Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
- Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
- 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
Vehicle Specific
- ICON 25 4RUNNER 4WD FRONT 2.5 VS RR CDEV COILOVER KIT
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103435275
-
306: Yes
-
2064: Steel
-
2329: Steel
-
3085: Single Tube
-
3096: Black
-
3390: Performance
-
7233: No
-
8703: No
-
9476: Yes
-
9783: Yes
-
10107: 550
-
10527: Yes
-
10528: Yes
-
10530: Active
-
10535: 3
-
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
-
Adjustable Damping: Yes
-
Body Diameter: 2.5
-
California Prop 65 Warning: Yes
-
Coil Over Springs Included: Yes
-
Compressed Length: 19.2
-
Cylinder Color: Silver
-
Cylinder Finish: Cadmium Plated
-
Damping Adjustment Type: Electronic
-
Damping Type: Oil
-
Dust Shield: No
-
Extended Length: 24.85
-
Gas Charged: Yes
-
Lower Mount Type: Eyelet
-
Material: Aluminum
-
Maximum Lift: 3
-
Minimum Lift: 1.25
-
OEM Wheels & Tires Fitment: Yes
-
Reservoir Style: Remote
-
Self-Leveling: No
-
Shaft Diameter: 0.875
-
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
-
Shock Absorber Rod End Measuring Point: Center of Eyelet
-
Spring Rate Type: Linear
-
Travel Length: 5.65
-
Upper Mount Type: Mounting Plate
-
Valving Type: Digressive
Extended Information:
-
Country of Origin: US
-
Emissions : 4
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 31.0000 x 13.0000 x 7.0000 inches
-
Weight: 61.0000 POUNDS
