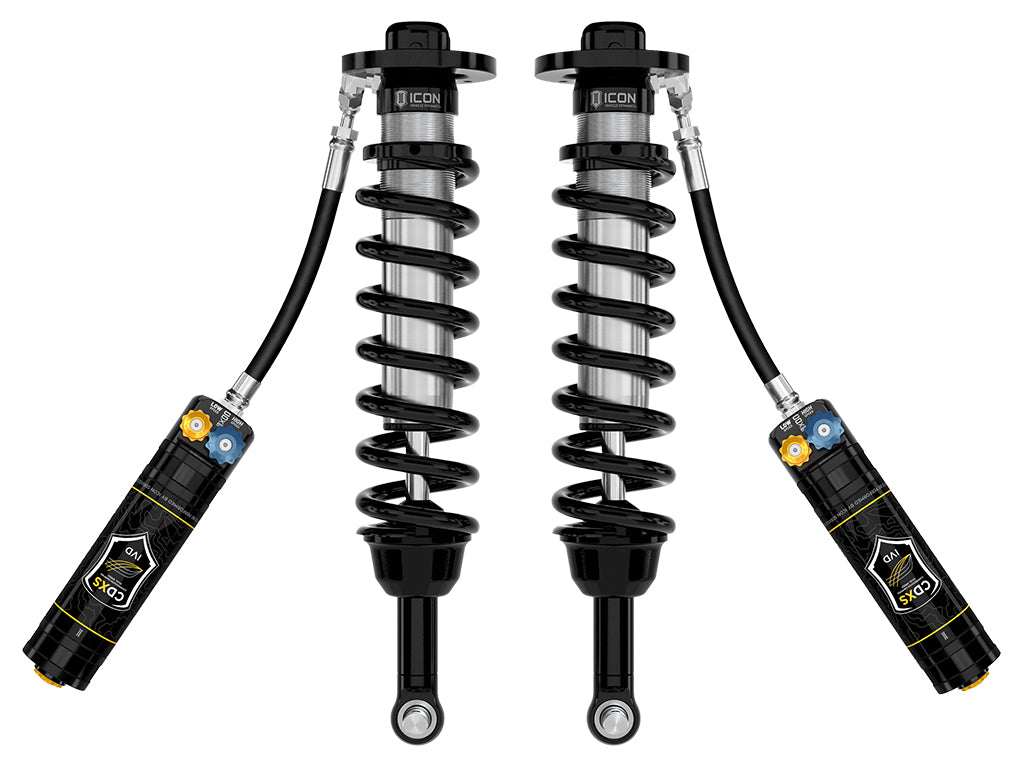

ICON 2025 Toyota 4Runner 4WD 1.25-3" Lift Front 2.5 Series Coilover Kit Remote Reservoir W/ CDXS

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDXS front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with 2.5 Aluminum Series CDXS rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Fully rebuildable and re-tunable
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance

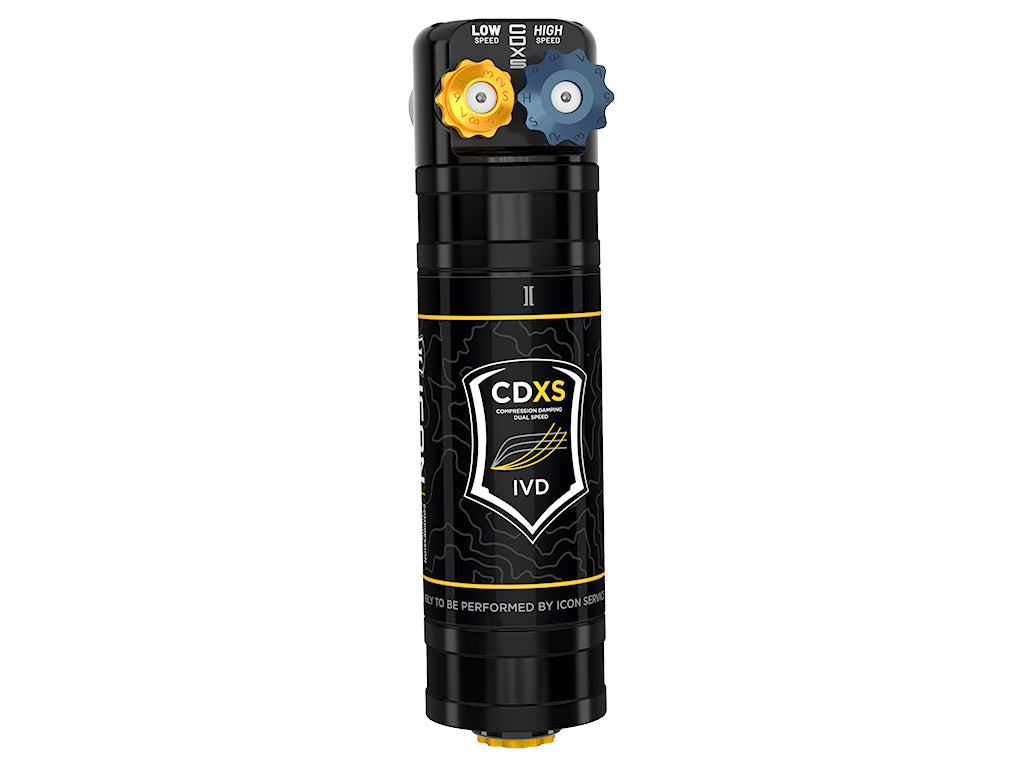

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection

Vehicle Specific

• ICON 25 4RUNNER 4WD FRONT 2.5 VS RR CDXS COILOVER KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103435190
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: Yes
• 10107: 550
• 10527: Yes
• 10528: Yes
• 10530: Passive
• 10535: 3
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Damping: Yes
• Body Diameter: 2.5
• Boot Included: No
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 19.2
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Adjustment Type: Dual Speed/Manual
• Damping Type: Oil
• Dust Shield: No
• Extended Length: 24.85
• Gas Charged: Yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Maximum Lift: 3
• Minimum Lift: 1.25
• OEM Wheels & Tires Fitment: Yes
• Reservoir Style: Remote
• Self-Leveling: No
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eyelet
• Spring Rate Type: Linear
• Travel Length: 5.65
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 58.0000 POUNDS
