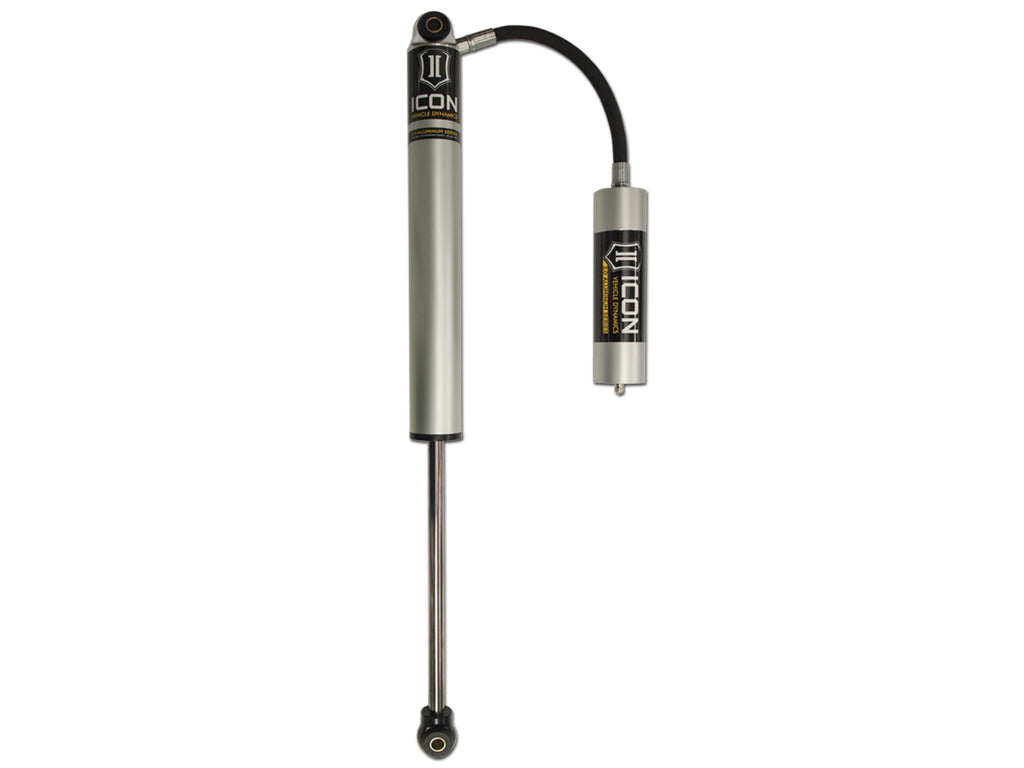

ICON Universal 2.0 Aluminum Series Front Shock Remote Reservoir 9.5” Travel

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 100% rebuildable
• 100% revalveable
• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8” chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• Application-specific reservoir mounting hardware
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation

Vehicle Specific

• ICON UNIVERSAL 9.5" TRAVEL 2.0 RR IFSV

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103400327
• 37: 23
• 38: 9.45
• 48: EYELET
• 49: EYELET
• 50: NO
• 51: Yes
• 52: 2
• 107: 13.55
• 108: 9.45
• 200: Anodized
• 408: CENTER OF EYELET
• 409: CENTER OF EYELET
• 1385: Gray
• 2329: Aluminum
• 3085: Single Tube
• 3390: Performance
• 8703: No
• 9476: Yes
• 9783: No
• 9792: No
• 9908: Yes
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable Damping: No
• Bushing Color: Black
• Bushing Included: yes
• Bushing Material: Polyurethane
• California Prop 65 Warning: Yes
• Coil Over Springs Included: NO
• Dust Shield: NO
• Material: Aluminum
• Mounting Width: 1.5" x 1/2" Bolt (Upper&Lower)
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shaft Diameter: 0.625
• Shaft Material: Chrome

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 40.0000 x 3.0000 x 7.0000 inches
• Weight: 7.0000 POUNDS
