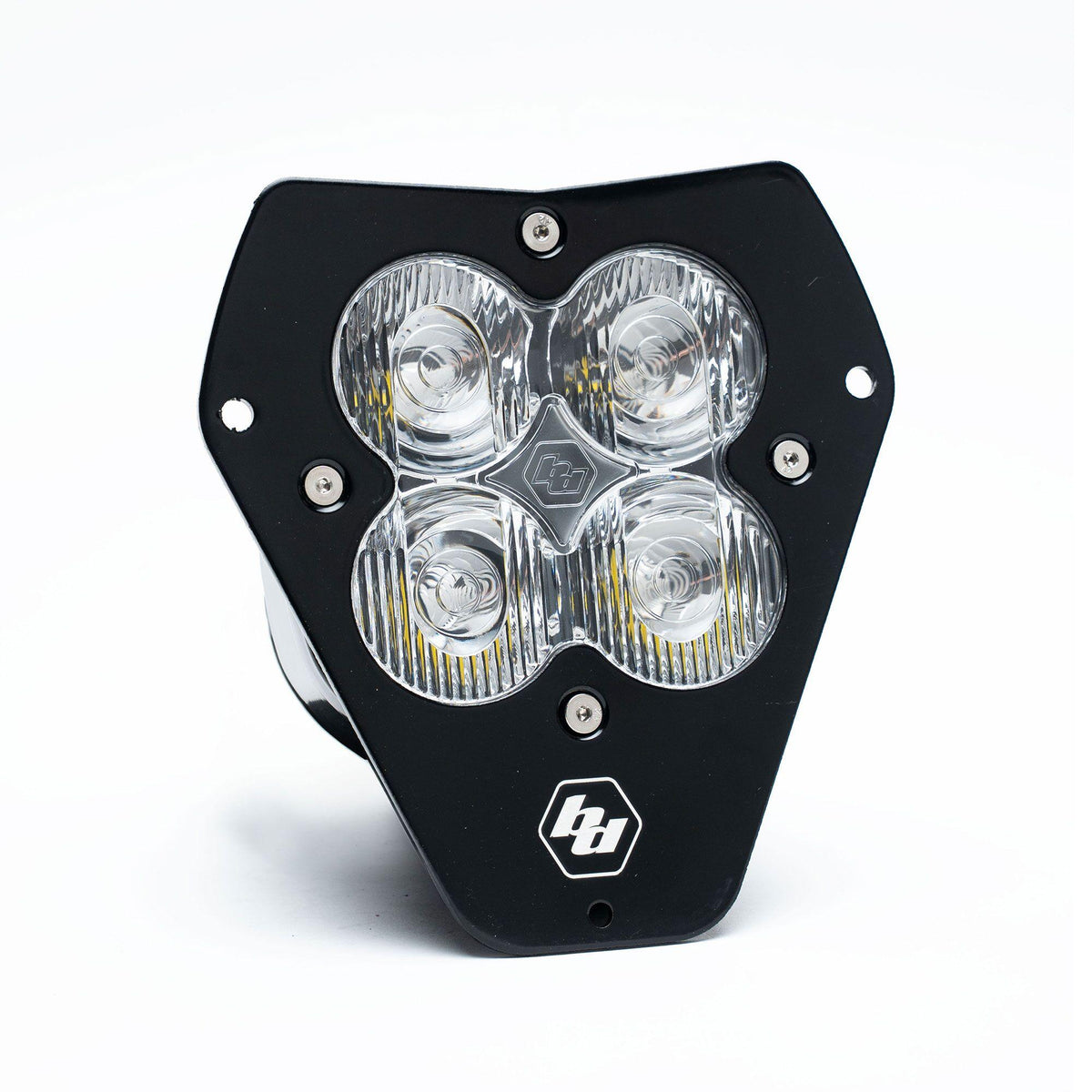

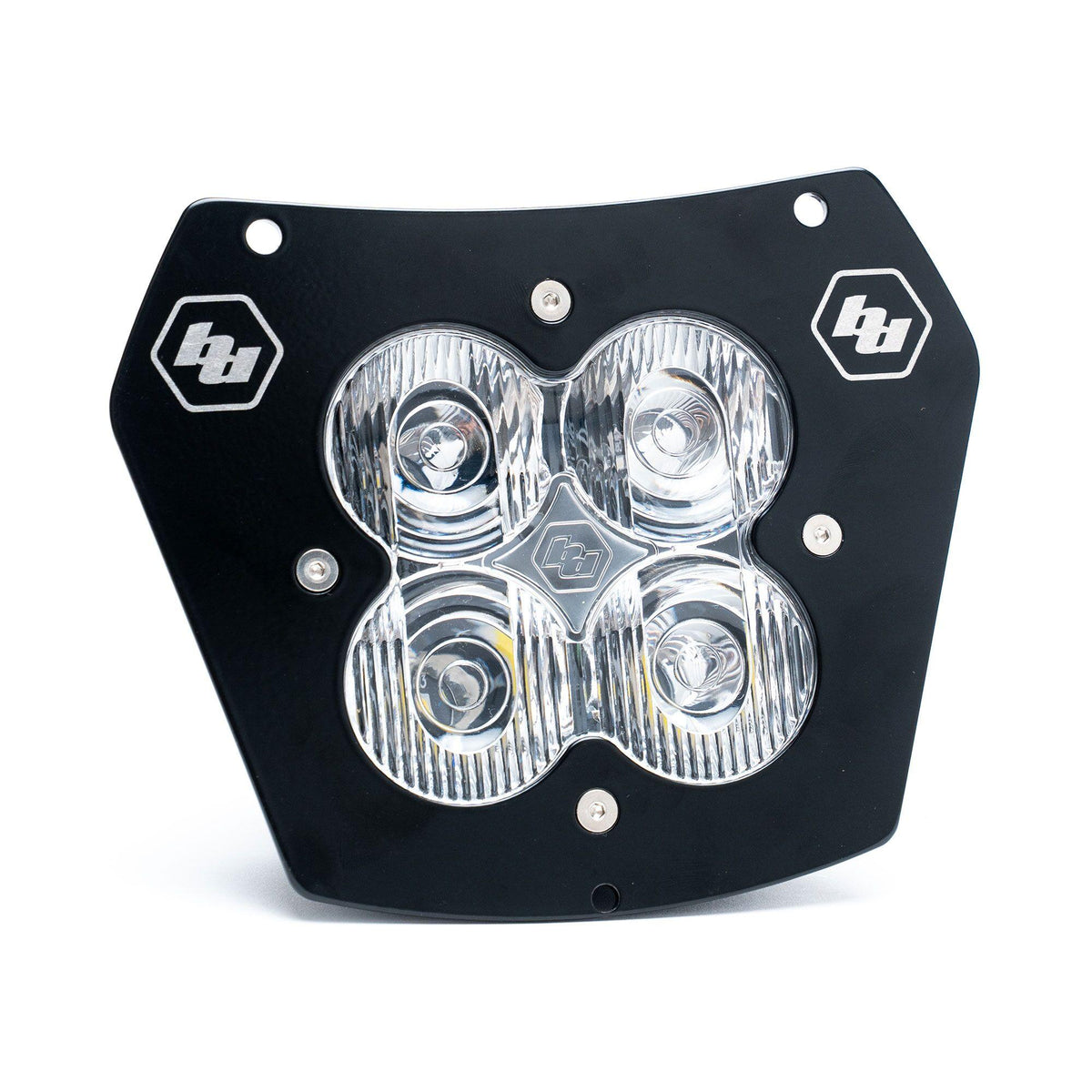

KTM XL40 (A/C) Headlight Kit - KTM 200XC ('08-09); 200/250/300/450 XC-W ('08-12); 250/300 XC ('08-12); 250 XC-F ('08-10); 250 XCF-W ('08-10); 250/300/450 XC-W ('08-12); 300 XC ('08-12); 400 XC-W ('08-11); 450/530 EXC-R ('08-11); 450 XC-F ('

Upgrade your off-road lighting with the Baja Designs XL40 (A/C) LED Headlight Kit — purpose-built for 2008–2012 KTM models. This kit includes a regulator/rectifier that converts your bike's A/C power to D/C, enabling fast, plug-and-play installation with the stock harness. Inspired by the performance of the XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes. Engineered for dirt bikes with lower-output OEM stators, it draws just 43.5W — a powerful upgrade without the large power draw.

• Engineered for dirt bikes with lower-output OEM stators, it draws just 43

Attributes:

• Brand Name: Baja Designs
• GTIN: 00810160464600
• Amperage Rating (A): 3.4
• Average Rated Life (hr.): 49930
• Beam Pattern: Trail
• Bezel Material: Powder Coated Cast Aluminum
• Brightness (Lumens): 5,224 (Hi) / 1,435 (Low)
• DES: XL40 (A/C) LED Headlight Kit
• Depth (in.): 3.65
• Description: Trail; Clear
• EXT: KTM XL40 (A/C) Headlight Kit - KTM 200XC ('08-09); 200/250/300/450 XC-W ('08-12); 250/300 XC ('08-12); 250 XC-F ('08-10); 250 XCF-W ('08-10); 250/300/450 XC-W ('08-12); 300 XC ('08-12); 400 XC-W ('08-11); 450/530 EXC-R ('08-11); 450 XC-F ('
• Effective Lighting Score (ELS): High: 92°/5.9/226’/5224; Low: 74°/5.9/119’/1435
• Height (in.): 4.43
• Housing Color: Black
• Housing Material: Powder Coated Cast Aluminum
• Length (in.): 4.43
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: Beam
• Lighting Quantity: 4
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: XL40
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• TLE: KTM XL40 (A/C) Headlight Kit - KTM 200XC ('08-09); 200/250/300/450 XC-W ('08-12); 250/300 XC ('08-12); 250 XC-F ('08-10); 250 XCF-W ('08-10); 250/300/450 XC-W ('08-12); 300 XC ('08-12); 400 XC-W ('08-11); 450/530 EXC-R ('08-11); 450 XC-F ('
• Universal or Specific: Universal
• Wattage (W): 43.5
• Weight (lbs.): 2.45
• Wiring Harness Included: No

Extended Information:

• Country of Origin: Mexico
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
