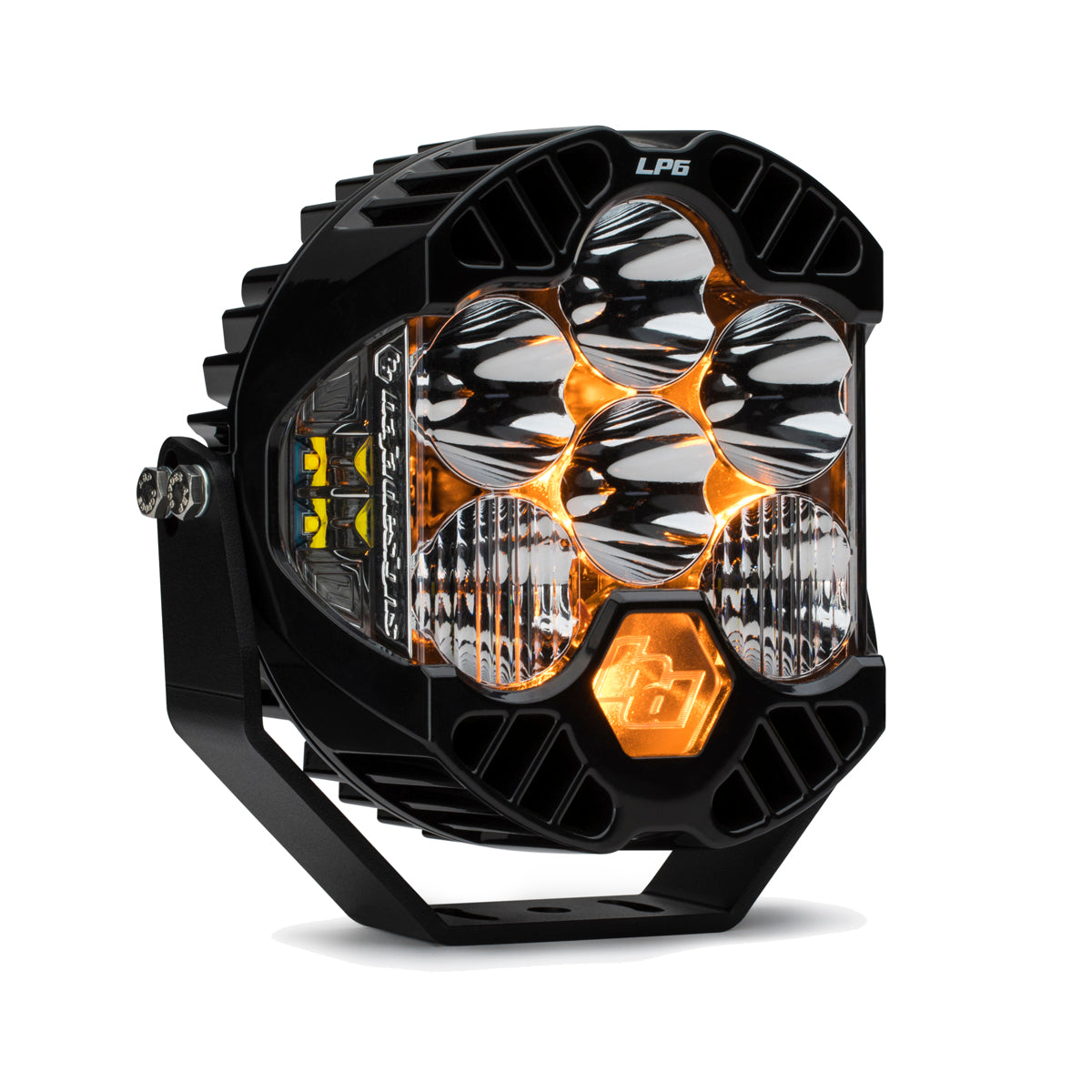

LP6 Pro LED Light Pod (Driving/Combo; Clear)

The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 total lumens and of 200-degree spread of usable LED light thanks to the dedicated peripheral lighting of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an colored daytime running light, low power, and high-power mode, the LP6 easily fulfills all your lighting needs.

• This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance

Attributes:

• Brand Name: Baja Designs
• GTIN: 00819314028606
• Add-On: Accessories-278001-Rock Guard (Black)
• Amperage Rating (A): 7.500
• Average Rated Life (hr.): 49,930
• Backlight Amperage Rating (A): 0.300
• Backlight Wattage (W): 4.140
• Beam Pattern: Driving/Combo
• Bezel Material: Powder Coat Cast Aluminum
• Brightness (Lumens): 11225
• DES: LP6 Pro LED Auxiliary Light Pod
• Depth (in.): 3.200
• Description: Driving/Combo; Clear
• EXT: LP6 Pro LED Light Pod (Driving/Combo; Clear)
• Height (in.): 6.500
• Housing Color: Black
• Housing Material: Powder Coat Cast Aluminum
• Length (in.): 6.500
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: High Beam/Low Beam/Day-Time Running Backlighting
• Lighting Quantity: 6
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: LP6 Pro LED Light Pod
• Secondary Amperage Rating (A): 1.000
• Secondary Brightness (Lumens): 1972
• Secondary Light Quantity: 4 LEDs
• Secondary Lighting Technology: LED
• Secondary Lighting Type: Integrated Peripheral Technology (IPT)
• Secondary Wattage (W): 15
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• TLE: LP6 Pro LED Light Pod (Driving/Combo; Clear)
• Terminal Connector: DT06-4S Deutsch
• Terminal Type: Mating Connector
• Universal or Specific: Universal
• Wattage (W): 103.500
• Weight (lbs.): 4.200
• Wiring Harness Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15.000 x 12.000 x 8.000 inches
• Weight: 5.000 POUNDS
