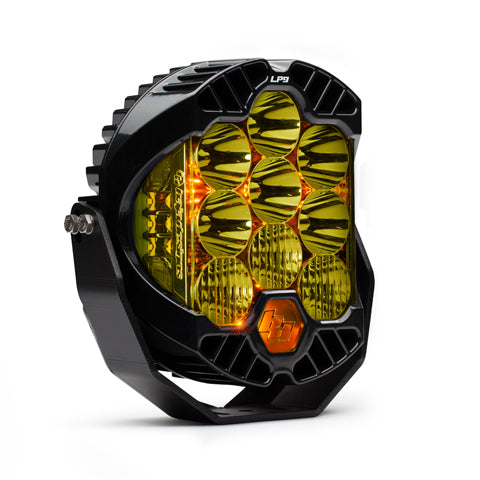

LP9 Pro LED Light Pod (Driving/Combo; Baja Amber)

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

• The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear

Attributes:

• Brand Name: Baja Designs
• GTIN: 00819314026633
• Add-On: Accessories-328001-Rock Guard (Black)
• Amperage Rating (A): 9
• Average Rated Life (hr.): 49,930
• Backlight Amperage Rating (A): 0.200
• Backlight Wattage (W): 2.800
• Beam Pattern: Driving/Combo
• Bezel Material: Powder Coat Cast Aluminum
• Brightness (Lumens): 12547
• DES: LP9 Pro LED Auxiliary Light Pod
• Depth (in.): 3.250
• Description: Driving/Combo; Amber
• EXT: LP9 Pro LED Light Pod (Driving/Combo; Baja Amber)
• Height (in.): 8
• Housing Color: Black
• Housing Material: Powder Coat Cast Aluminum
• Length (in.): 8
• Lens Color: Amber
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: High Beam/Low Beam/Day-Time Running Backlighting
• Lighting Quantity: 9
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Patent No.: 5,504,603
• Product Type: LP9 Pro LED Light Pod
• Secondary Amperage Rating (A): 1.520
• Secondary Brightness (Lumens): 2302
• Secondary Light Quantity: 6 LEDs
• Secondary Lighting Technology: LED
• Secondary Lighting Type: Integrated Peripheral Technology (IPT)
• Secondary Wattage (W): 21
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• TLE: LP9 Pro LED Light Pod (Driving/Combo; Baja Amber)
• Terminal Connector: DT06-4S Deutsch
• Terminal Type: Mating Connector
• Universal or Specific: Universal
• Wattage (W): 124.200
• Weight (lbs.): 6.500
• Wiring Harness Included: No

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12.000 x 10.000 x 8.000 inches
• Weight: 6.500 POUNDS
