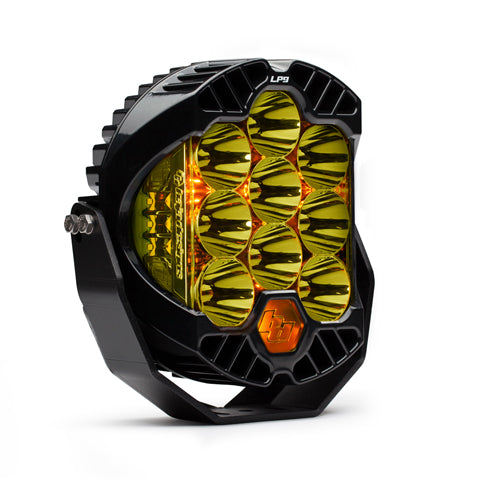

LP9 Racer Edition LED Light Pod (Racer Spot; Baja Amber)

A design that was inspired by Baja Designs’ legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs. Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

• Satisfaction Guarantee – 30-Day Money Back Guarantee

Attributes:

• Brand Name: Baja Designs
• GTIN: 00819314026664
• Add-On: Accessories-328001-Rock Guard (Black)
• Amperage Rating (A): 9.600
• Average Rated Life (hr.): 49,930
• Backlight Amperage Rating (A): 0.200
• Backlight Wattage (W): 2.800
• Beam Pattern: Racer Edition Spot
• Bezel Material: Powder Coat Cast Aluminum
• Brightness (Lumens): 8374
• DES: LP9 Racer Edition LED Auxiliary Light Pod
• Depth (in.): 3.250
• Description: Racer Edition Spot; Amber
• EXT: LP9 Racer Edition LED Light Pod (Racer Spot; Baja Amber)
• Height (in.): 8
• Housing Color: Black
• Housing Material: Powder Coat Cast Aluminum
• Length (in.): 8
• Lens Color: Amber
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: High Beam/Low Beam/Day-Time Running Backlighting
• Lighting Quantity: 9
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Patent No.: 5,504,603
• Product Type: LP9 Racer Edition LED Light Pod
• Secondary Amperage Rating (A): 1.520
• Secondary Brightness (Lumens): 2302
• Secondary Light Quantity: 6 LEDs
• Secondary Lighting Technology: LED
• Secondary Lighting Type: Integrated Peripheral Technology (IPT)
• Secondary Wattage (W): 21
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• TLE: LP9 Racer Edition LED Light Pod (Racer Spot; Baja Amber)
• Terminal Connector: DT06-4S Deutsch
• Terminal Type: Mating Connector
• Universal or Specific: Universal
• Wattage (W): 132.480
• Weight (lbs.): 6.500
• Wiring Harness Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12.000 x 10.000 x 8.000 inches
• Weight: 6.500 POUNDS
