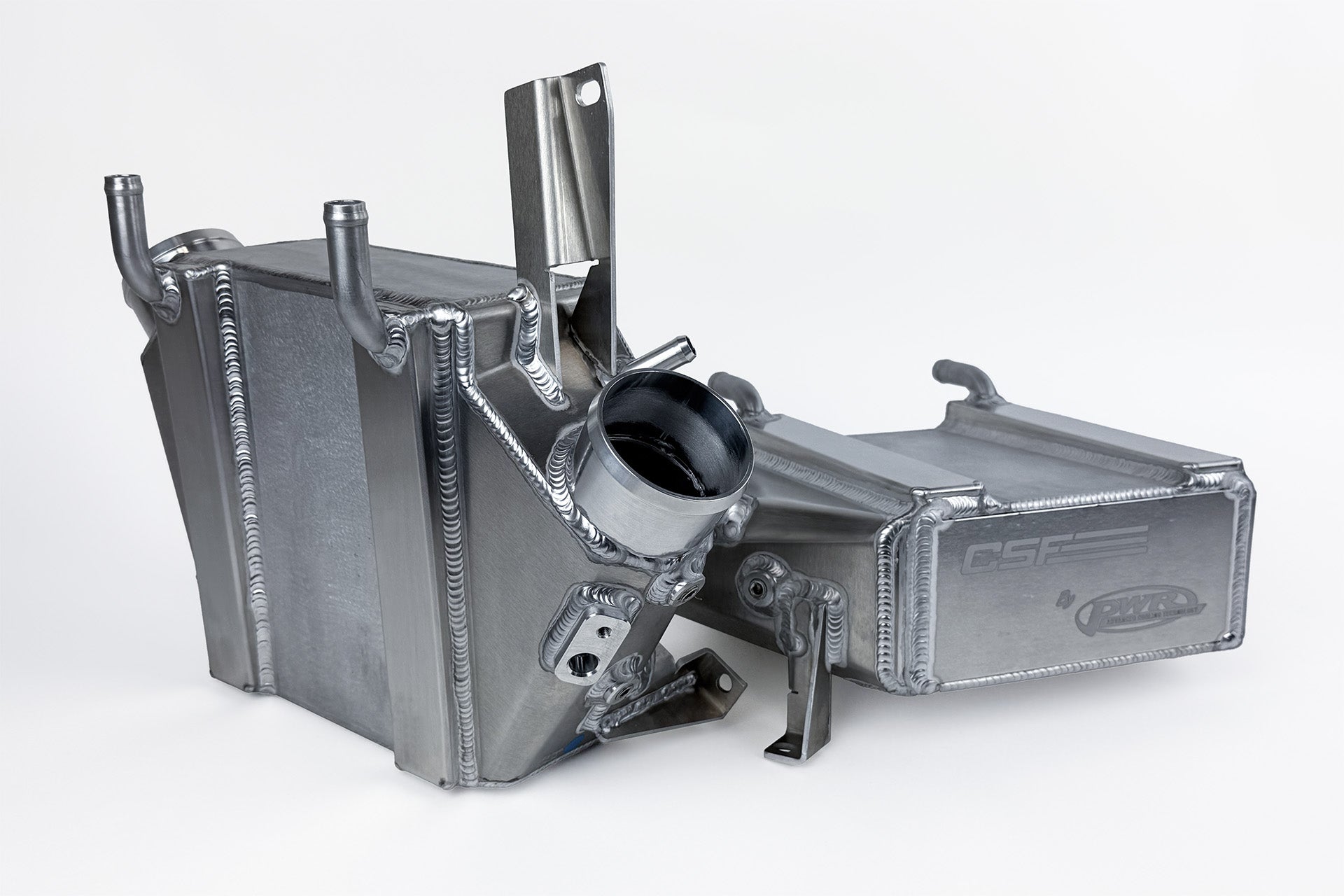

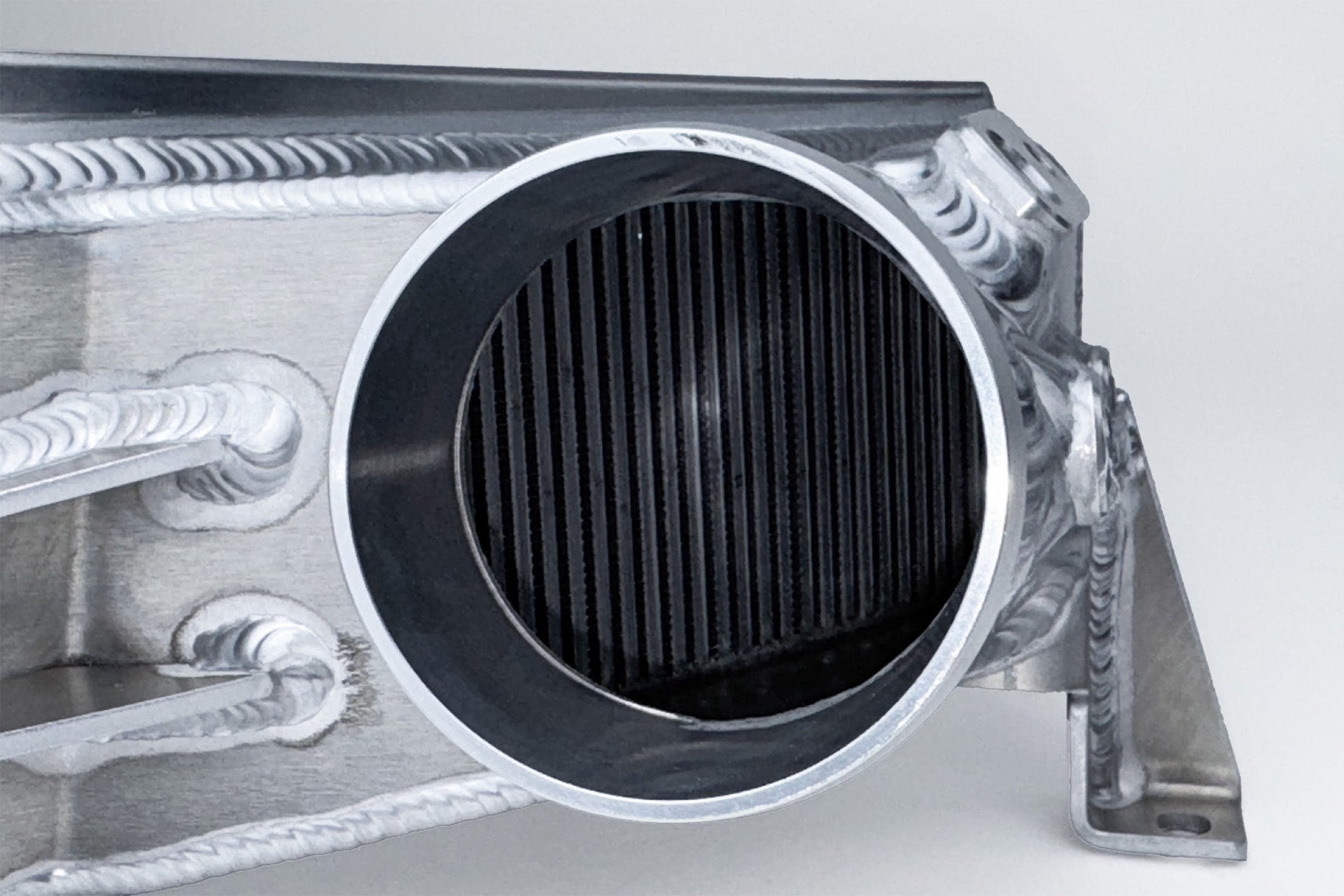

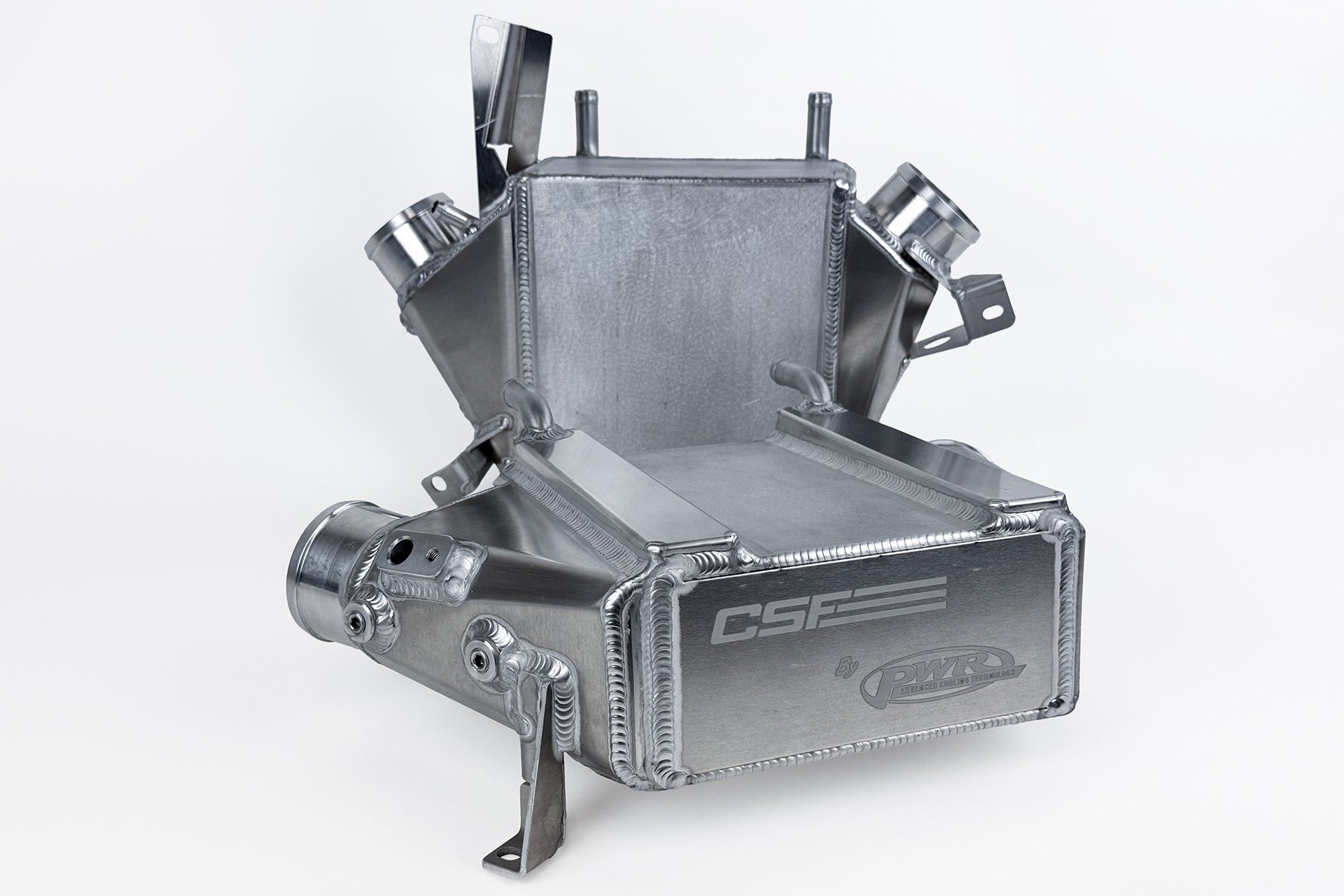

McLaren 720S / 765LT / 750S / GT / GTS Charge-Air-Coolers

Tank Design & Construction: One of the other shortcomings of the factory coolers is their ability to handle high boost. The factory coolers are an all metal construction with extrusion formed tanks brazed to the cores. This is much stronger than the more common plastic tank with crimped-on gasket seals, but it still leaves room for improvement. The brazed joint is still a weak spot in the system and can burst at higher boost pressures. The new CSF Charge-Air-Coolers fully TIG welded the all aluminum tanks to the cores. This construction method offers the strongest possible coolers that will handle much higher boost pressures than the factory coolers.

• Sold as a pair (Left & Right Charge-Air-Coolers / Intercoolers)
• Individually Leak and Pressure Tested
• Limited Lifetime Warranty
• Faster recovery of Intake Air Temperatures (IATs)
• No pressure drop compared to OEM core
• High performance bar/plate intercooler core by PWR pressure tested to 120psi
• Plug-and-Play "Drop-in Fit" Installation - Requires No Modifications
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353083529
• ADD-ON: 8212
• Color: Silver
• Core Color: Silver
• Core Length: 220mm
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 87mm
• Core Width: 194mm
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Quantity: 1
• Inlet Tank Material: Aluminum
• Installation Type: Drop-In Fit Installation
• Mounting Hardware Included: No
• Outlet Fitting Gender: Male
• Outlet Quantity: 1
• Outlet Type: Barbed
• Type: Air-to-Water
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 25 x 25 x 25 inches
• Weight: 50 POUNDS
