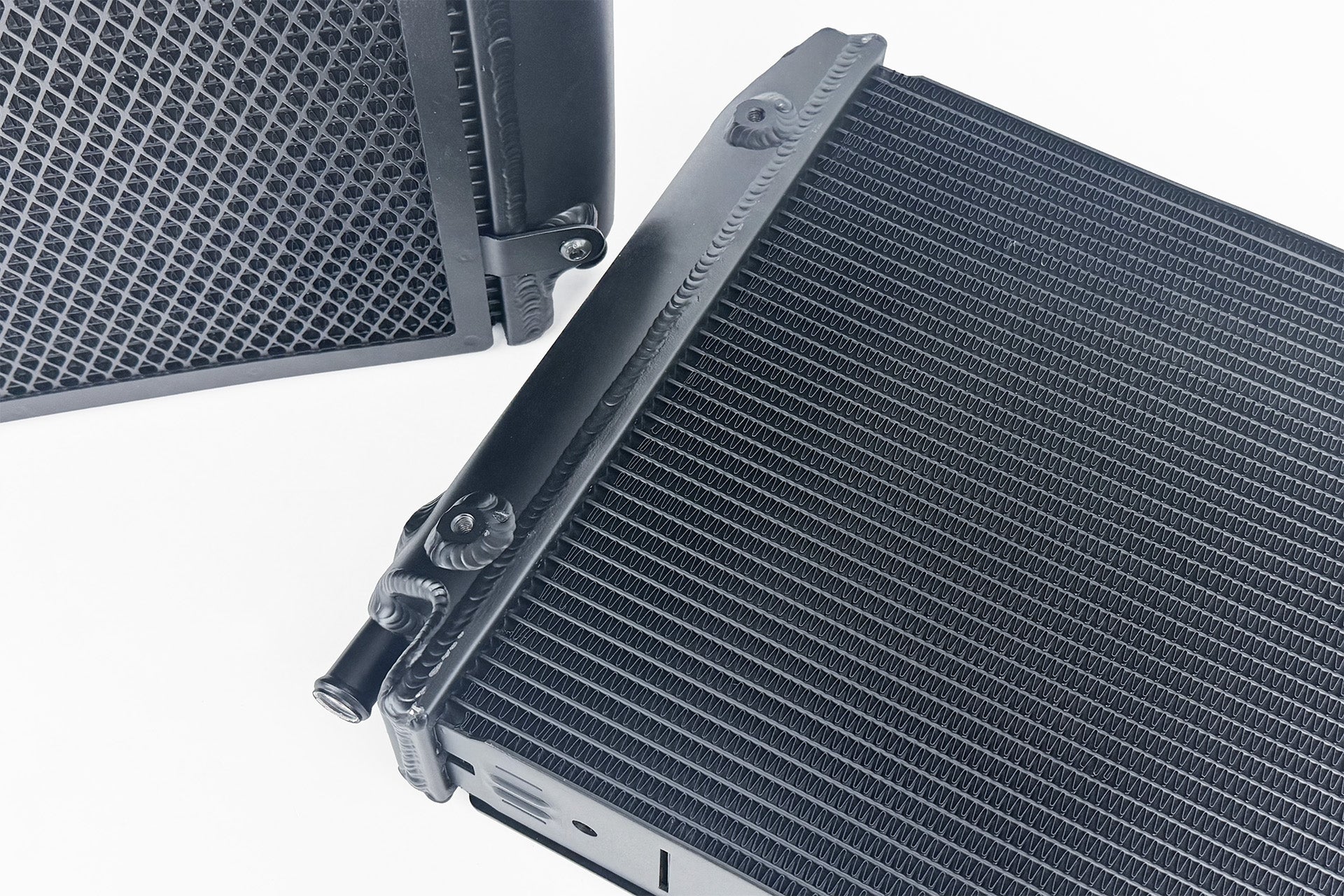

McLaren MP4-12C / 650S / 675LT Turbocharger Heat Exchanger

The CSF #8213 and #8212 heat exchangers cover all 12C, 650S/675LT, 570S/570GT/600LT, 720S/765LT, 750S, and GT/GTS models. There is some overlap in fitment for the 650S and 675LT models so you should consult a McLaren dealership with your VIN to confirm which coolers your application requires. The difference in the two heat exchanger models is the core height (measurement between tanks). The CSF #8212 (McLaren OE: 13L0183CP or 11L0375CP) are 59mm (2.3 in) taller than the CSF #8213 (McLaren OE: 11L0241CP).

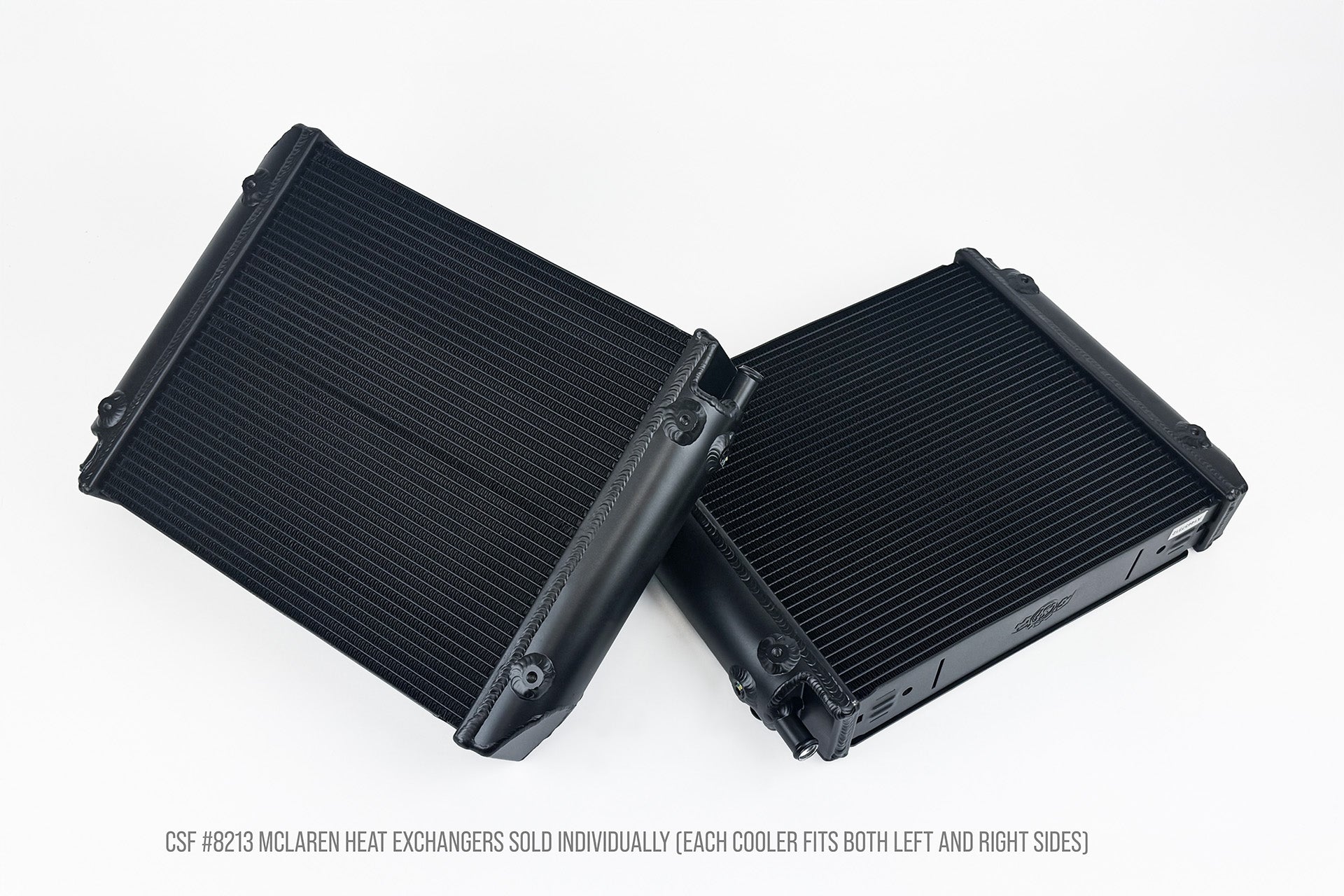

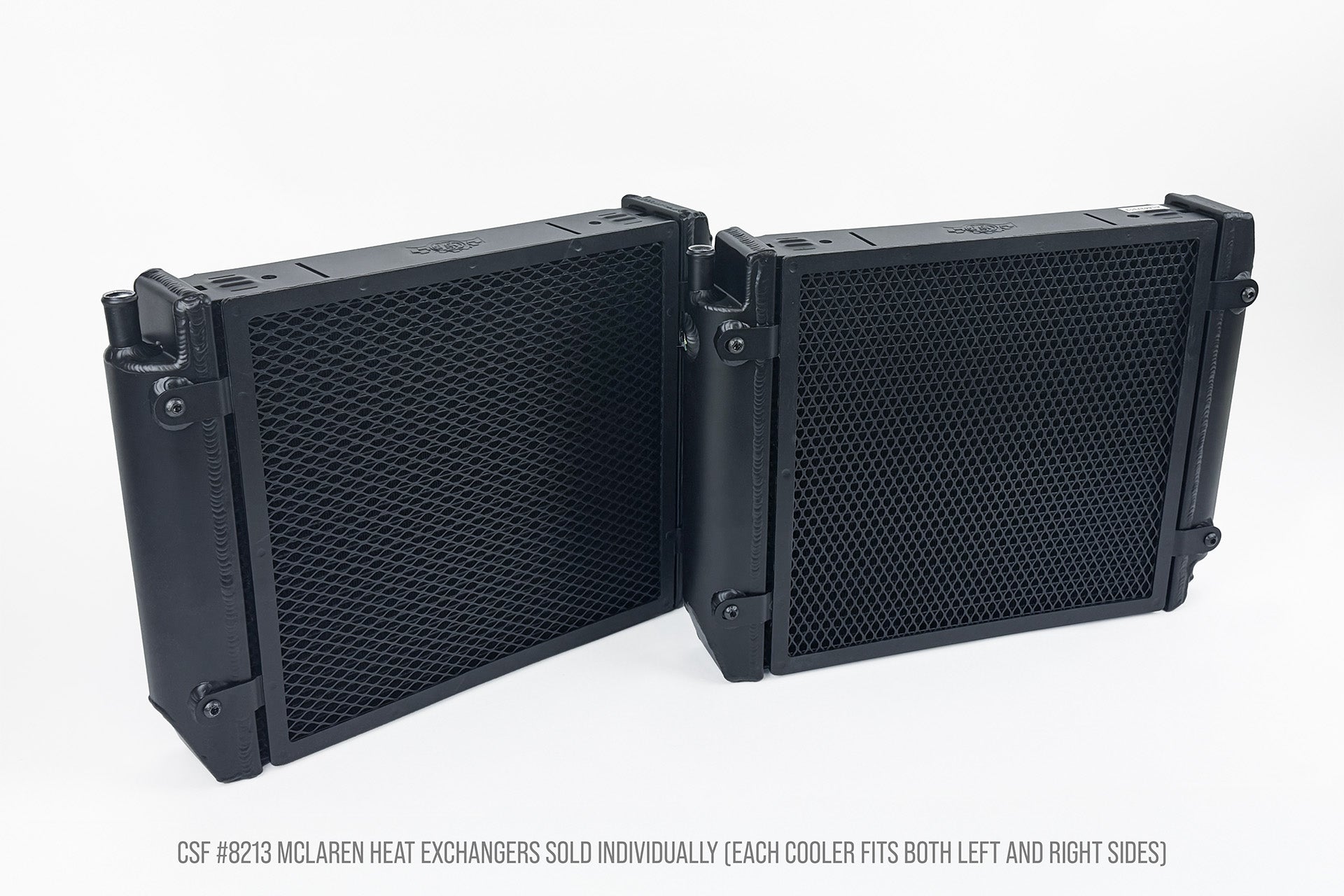

• Sold individually - all applications require two Heat Exchangers (Left & Right)
• Satin Black Finish for OEM+ Look
• True Plug-and-Play "Drop-in Fitment"
• Significantly Reduces Intake Air Temperatures (IATs) for Maximum Performance (with Faster Heat Soak Recovery)
• 2-Row - 54mm Ultra-High-Performance Core
• New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation
• Ultra High-Performance 5-Pass Core Design & OEM Style Inlet/Outlet connections
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• Pre-plugged 1/8th NPT temperature sensor / bleeder ports
• 100% All Aluminum TIG-Welded Construction
• Includes Detachable Rock Guards

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353082133
• Core Material: Aluminum
• Finish/Color: Black
• Grade Type: Performance
• Installation Type: Drop-In Fit Installation

Extended Information:

• Country of Origin: Indonesia
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 15 x 4 inches
• Weight: 9 POUNDS
