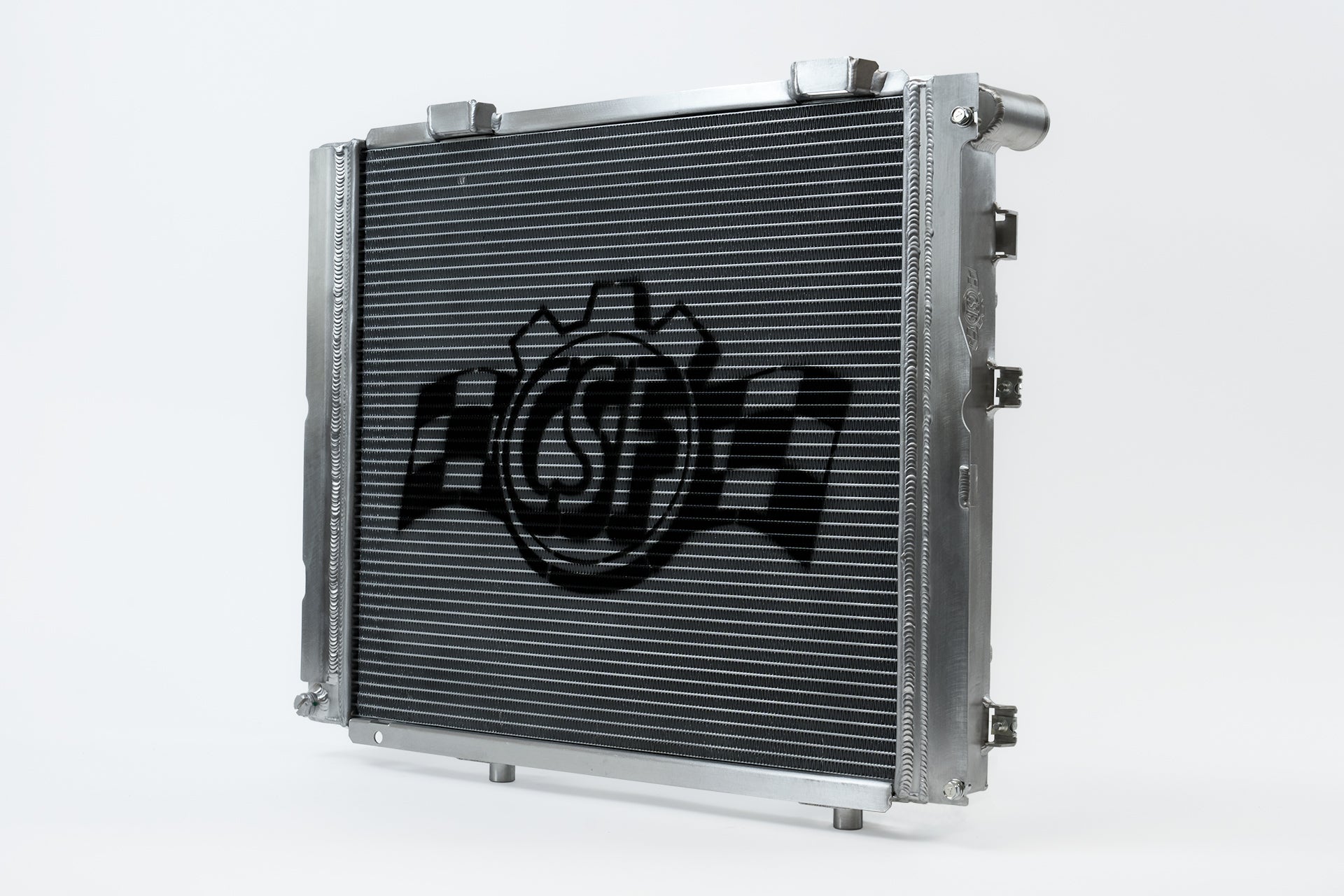

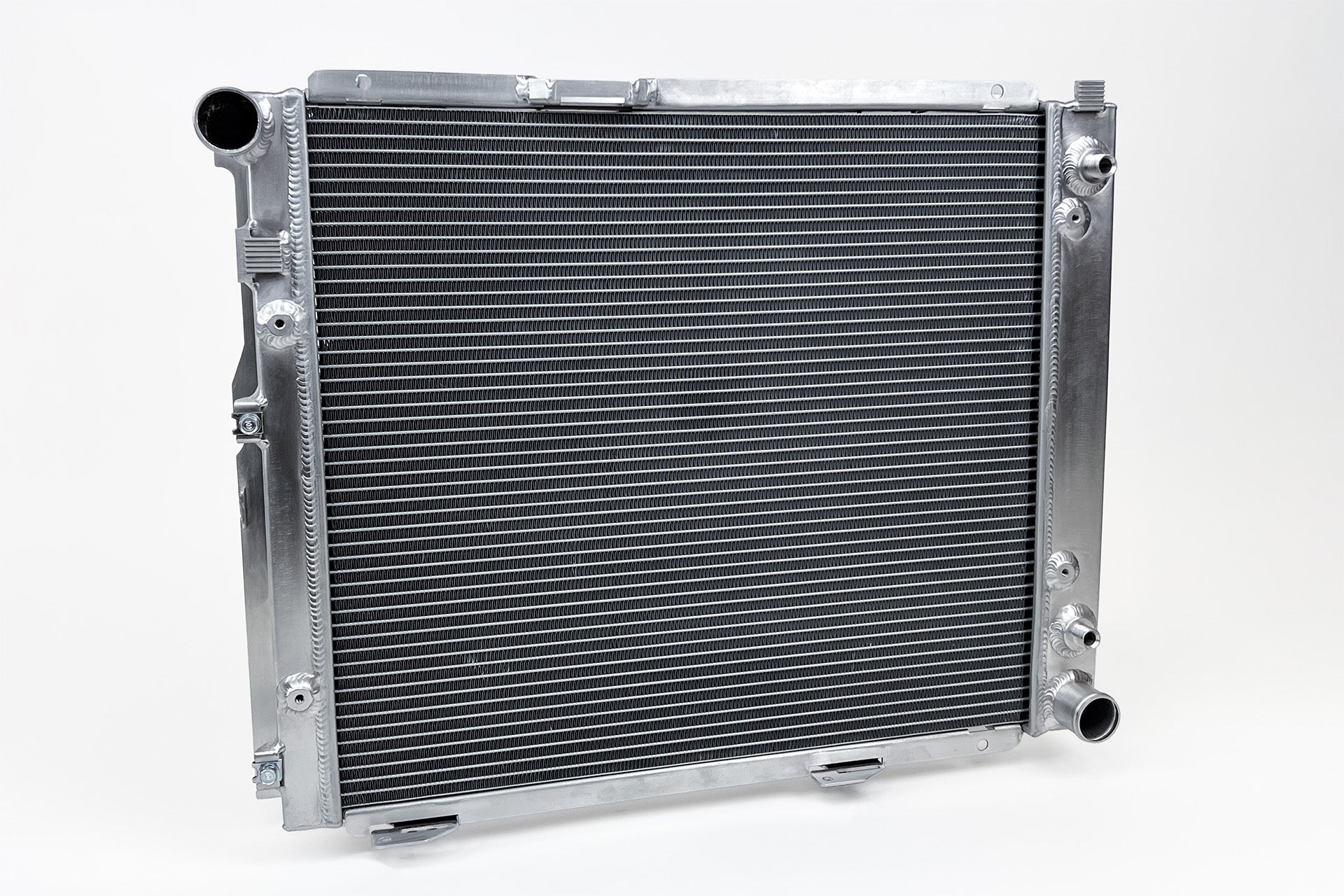

Mercedes 190E 2.3-16/2.5-16 Aluminum High-Performance Radiator

For those interested in removing their factory AC condenser in favor of an oil cooler, CSF added threaded bolt inserts (M8 x 1.25) for mounting an oil cooler. You'll need to fabricate your own brackets, but we recommend using the CSF #8110 (Dual-Pass) or 8111 (Single-Pass) Universal Oil Cooler. This is mainly targeted towards track/race applications. However, anyone who has already removed or plans to remove the factory AC system can benefit from a larger oil cooler.

• 2-Row, 42mm Ultra-High-Performance Dual Pass Core
• 2-Year Limited Warranty
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• Includes CNC Cut Fan Mounting Brackets for a 16 inch SPAL Fan (Low Profile SPAL Fan PN: 30100400 - Medium Profile SPAL Fan PN: 30101516)

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353072202
• ADD-ON: 8110
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 490mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 450mm
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Satin
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 35mm
• Inlet Location: Top Left
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 35mm
• Outlet Location: Bottom Right
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: ID
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 22 x 7 inches
• Weight: 19 POUNDS
