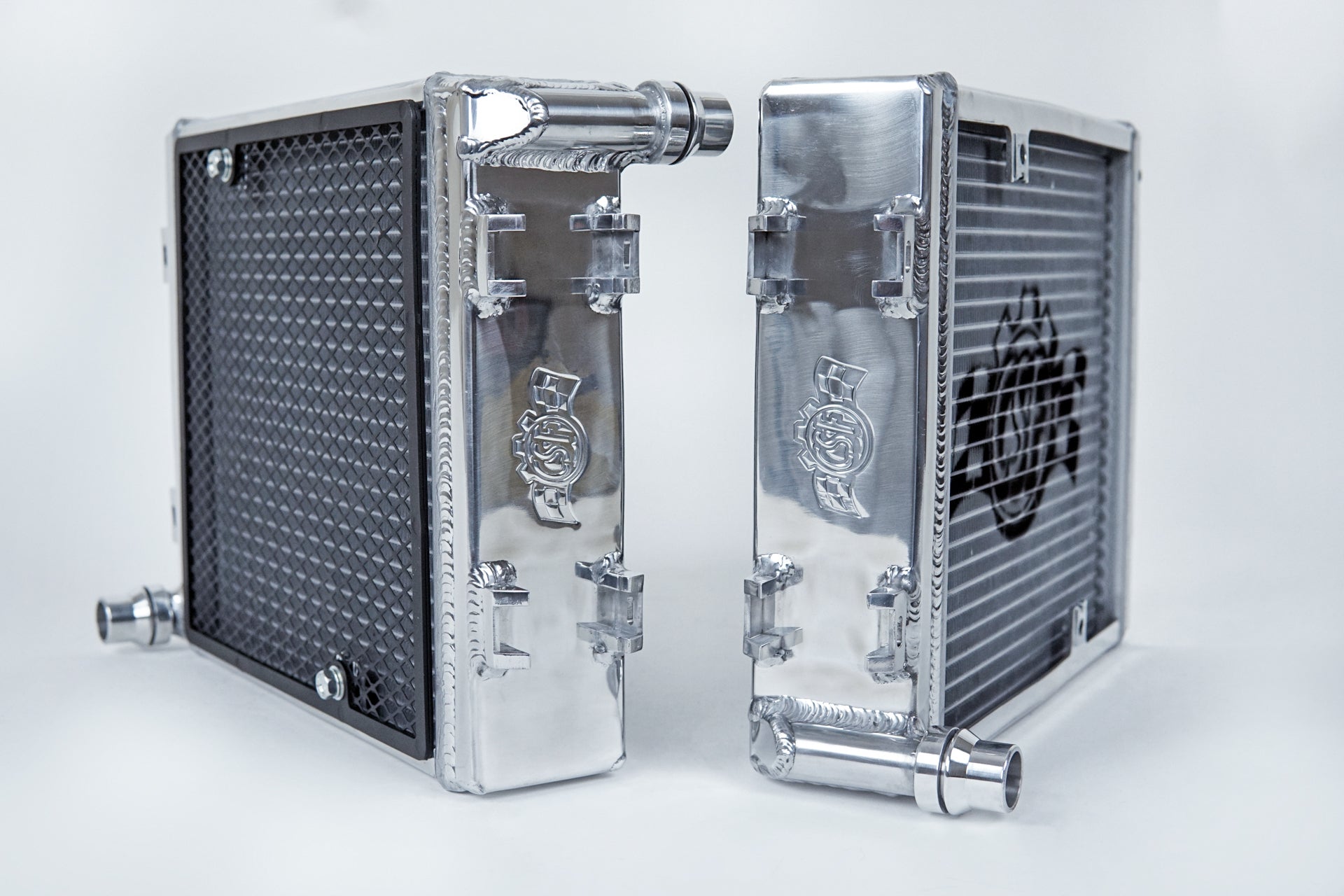

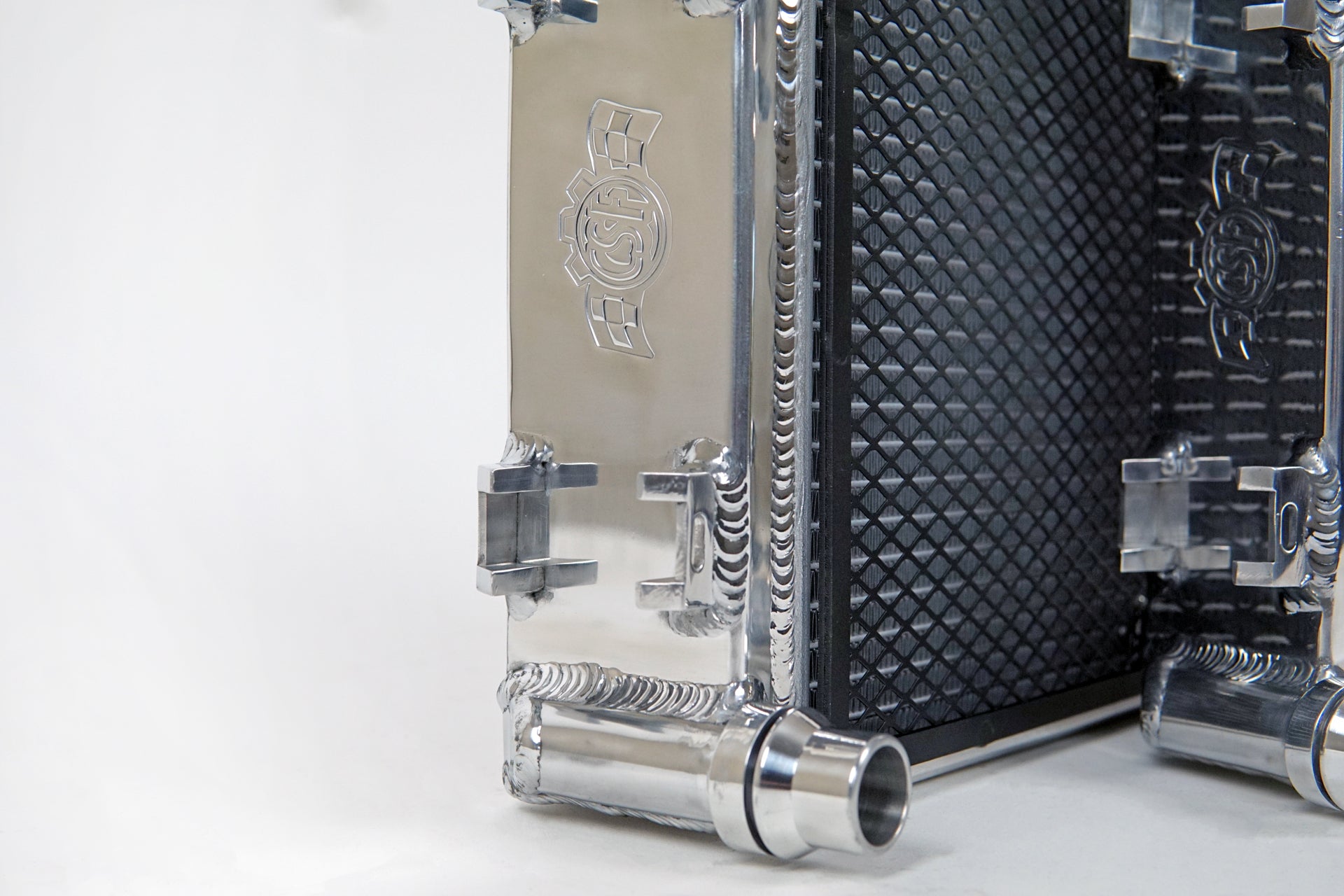

Mercedes AMG GT / GT S / W205 C63 / W166 GLE63 / X166 GLS63 Auxiliary Radiator

The High-Performance All-Aluminum Auxiliary Radiators work in conjunction with the rest of the cooling system to reduce temperatures throughout. This is critical as the Auxiliary Radiators not only help keep engine water temperatures lower, but also are utilized as the heat exchange medium in the air-to-water charge-air coolers for the turbocharger system to reduce intake air temperatures (IATs). Overall, the Auxiliary Radiators larger capacity prolongs the heat soak threshold and assists in keeping temperatures in optimal ranges. The included, detachable rock guard offers protection against the build-up of debris, as well as possible core punctures - unlike the OEM auxiliary radiators, which have little protection against the elements. CSF recommends purchasing two Auxiliary Radiators to replace both left and right OEM units (for vehicles with two from the factory). For maximum cooling performance, we advise installing in conjunction with the Front Mount Heat Exchanger (CSF #8088).

• 2-Row High-Performance Core Featuring CSF's B-Tube Technology
• High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement - 2 Year Limited Warranty
• Core Features Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• Approx. Double the Capacity of OEM (100% More Capacity - OEM 26mm Core vs. CSF 42mm Core)
• 100% All-Aluminum TIG-Welded Construction
• CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
• 1 Hour "Mirror Finish" Hand Polish & Includes Detachable Rock Guard

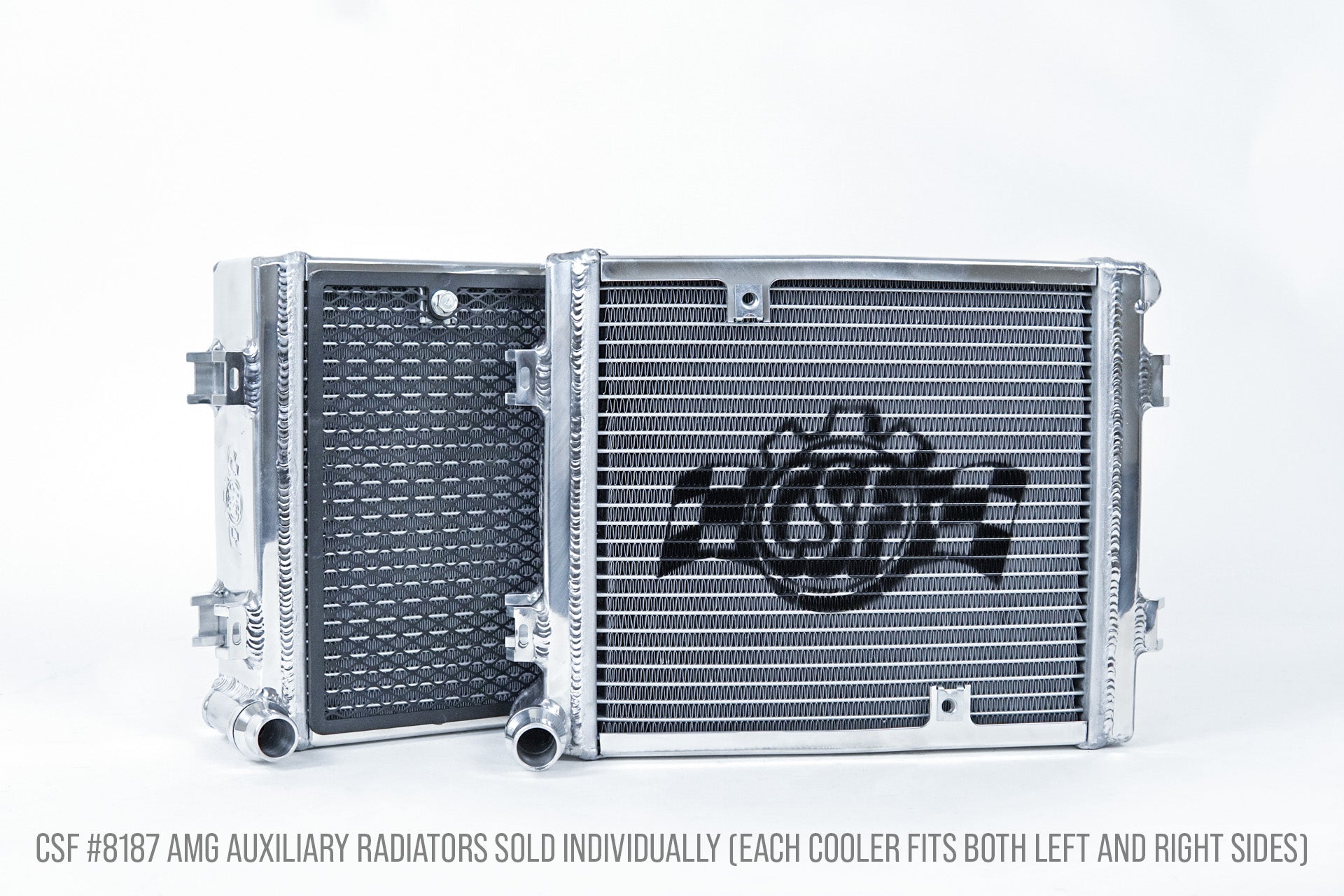

• Multi-Fit - Fits Both Left & Right Side (For Vehicles With One or Two Auxiliary Radiators)
• Drop-in Fit" Installation - May Require Trimming Plastic Shroud (see fitment notes)
• Individually Leak and Pressure Tested

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353081877
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 245mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 242mm
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Polished
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Quick Connect
• Inlet Diameter: 16mm
• Inlet Location: Top
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Quick Connect
• Outlet Diameter: 16mm
• Outlet Location: Bottom
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: ID
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15 x 7 x 13 inches
• Weight: 7 POUNDS
