Mishimoto Chevrolet/GM C/K Truck Performance Aluminum Fan Shroud W/ Fan Controller
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$412.95
-0%
Regular price
$412.95
Regular price
$412.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

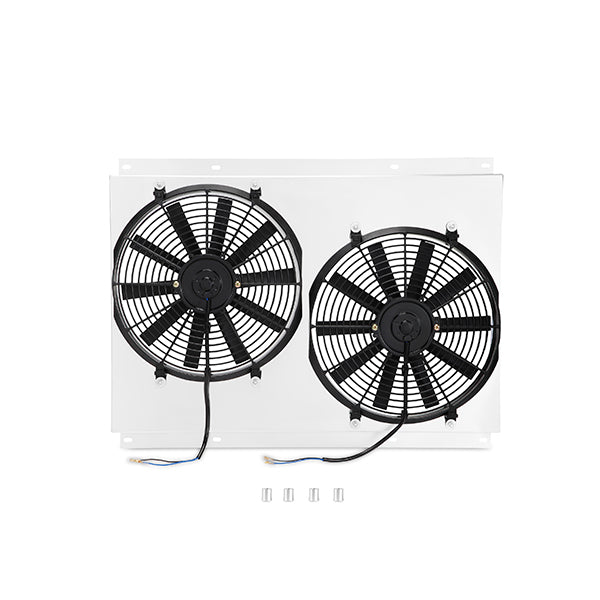

Keep your 1978-86 GM C/K Series cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto'sChevrolet/GM C/K Performance Radiator and includes two 14in high-flow electric fans that produce over 1300 cfm of airflow. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. As with all our products, this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.
- Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
- All-aluminum construction
- Optional fan controller provides complete control of coolant temperatures at idle
Attributes:
- Brand Name: Mishimoto
- GTIN: 00811580037672
- Airflow Rate: 1300
- Blade Color: Black
- Blade Included: Yes
- Blade Length: 7
- Blade Material: Plastic
- Blade Quantity: 10
- Blade Type: Straight
- Color: Silver
- Control Module Included: No
- Control Unit Included: No
- Depth: 3.9
- Electrical Or Mechanical: Electrical
- Fan 1 Blade Quantity: 10
- Fan 1 Diameter: 14
- Fan 2 Blade Quantity: 10
- Fan 2 Diameter: 14
- Fan Clutch Mounted: No
- Fan Quantity: 2
- Finish: Brushed
- Grade Type: Performance
- Hardwired Or Plug-In: Plug-In
- Height: 23.53
- Housing Finish: Aluminum
- Install Difficulty: 3
- Installation Difficulty: 3
- Material: Aluminum
- Maximum CFM: 1300
- Motor Included: Yes
- Mounting Hardware Included: Yes
- OptionLabel: w/ Fan Controller
- SellingPoint01: Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
- SellingPoint02: All-aluminum construction
- SellingPoint03: Optional fan controller provides complete control of coolant temperatures at idle
- SellingPoint04: Designed to mate exclusively with Mishimoto's Chevrolet/GM C/K Performance Radiator
- SellingPoint05: Replaces failure-prone stock mechanical fan
- SellingPoint06: No cutting or bending of shroud required
- SellingPoint07: Includes all mounting hardware for installation
- SellingPoint08: Mishimoto Lifetime Warranty
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- Shroud Color: Silver
- Shroud Included: Yes
- Shroud Material: Aluminum
- TechSpec Applications: 1978-1986 GM C/K Series Pickup 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8--1987-1991 Chevrolet Blazer 305ci (5.0L) V8, 350ci (5.7L) V8--1981-1991 GMC Jimmy 305ci (5.0L) V8, 350ci (5.7L) V8--1987-1991 R-Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8--1987-1991 V-Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8
- TechSpec CFM (Each Fan): 1300
- TechSpec Chassis Codes: ED3--ED4--ED6--ED7--ED8--ED9--EE2--EE4
- TechSpec Engine Codes: 292ci (4.8L) L6--305ci (5.0L) V8--350ci (5.7L) V8--454ci (7.4L) V8
- TechSpec Height (in): 23.53
- TechSpec Includes: (1) Aluminum Fan Shroud--(2) 14-inch Slim Electric Fans--(1) Adjustable Relay--(1) Push-In Radiator Temperature Probe--(1) 1/8-in NPT Temperature Sensor--(1) Wiring Harness--(16) Zip Ties--(4) Wire Straight Crimp Connectors--(1) Wire Butt Crimp Connector--(1) Wire Quick-Splice Connector--(4) Wire Ring Terminals--(2) Wire Spade Connectors--(1) In-line Mini Fuse Holder--(1) 40-in 10 AWG Wire--(1) 7-ft 12 AWG Wire--(1) 12-in Heat Shrink--Mishimoto Lifetime Warranty
- TechSpec Length (in): 30.48
- TechSpec Note: Electric fans already come attached to the shroud.----Fans may require additional wiring.----Optional Fan Controller is Mishimoto MMFAN-CNTL-U and includes both NPT and Probe type sensors.
- TechSpec Weight (lbs): N/A
- TechSpec Width (in): 3.9
- Width: 3.9
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 16.7 x 16.7 x 16.7 inches
- Weight: 14.12 POUNDS
