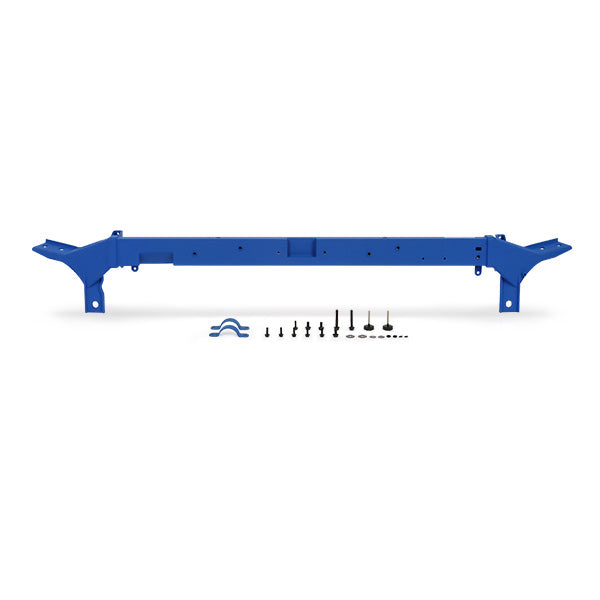

Mishimoto Ford 6.4L Powerstroke Upper Support Bar 2008-2010

the bumps, the frame-twisting amounts of torque, and the potholes. As the frame moves, so do vital underhood components, including the cooling system. At Mishimoto, we?re enabling you to push the limits of your truck even further with the new Mishimoto direct-fit upper radiator support crossmember bar for 6.4L Powerstroke-equipped Super Duty trucks. Engineered right here in Delaware, our core support bar is constructed of heavy-duty steel and firmly secures to your truck with hefty, cast-steel anchor points, minimizing front end flex and improving the truck?s rigidity. Designed with the DIY?er in mind, this upper radiator core support crossmember installs in under 30 minutes and allows for extra clearance to accommodate Mishimoto and other large cold-side intercooler pipes without any cutting. Finished in durable black powdercoat, this core support bar was rigorously tested for performance, and is backed by the Mishimoto Lifetime Warranty.

• Provides improved rigidity to minimize front end flex
• Less twisting in radiator support = less stress on cooling components
• Reduces road forces and shock to the truck's front end

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354032727
• Bushings Included: Yes
• Color: Black
• Finish: Powder-Coat
• Grade Type: Improved Design
• Install Difficulty: 2
• Installation Difficulty: 2
• Material: Steel
• Mounting Hardware Included: Yes
• OptionLabel: Stealth Black
• SellingPoint01: Direct fit for the 6.4L Powerstroke
• SellingPoint02: Provides improved rigidity to minimize front end flex
• SellingPoint03: Less twisting in radiator support = less stress on cooling components
• SellingPoint04: Reduces road forces and shock to the truck’s front end
• SellingPoint05: Installs in under 30 minutes
• SellingPoint06: Cast-steel anchor points for improved strength
• SellingPoint07: Heavy-duty steel construction for maximum durability
• SellingPoint08: Designed with extra clearance for Mishimoto and most aftermarket cold-side intercooler pipes, so no cutting is required
• SellingPoint09: Works with factory and Mishimoto radiators
• SellingPoint10: Available in a durable black or wrinkle blue powder-coated finish
• SellingPoint11: Includes new rubber hood bump stops
• SellingPoint12: Patent Pending
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
• TechSpec Diameter (Inches): N/A
• TechSpec Engine Codes: N/A
• TechSpec Includes: (1) Mishimoto Support Bar--(2) Mounting Brackets--(2) Rubber hood Stops--(1) Hardware Pack--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: N/A
• TechSpec Length (Inches): 60
• TechSpec Material: Steel
• TechSpec Maximum Pressure (PSI): N/A
• TechSpec Maximum Temperature (F): N/A
• TechSpec Minimum Yield Strength: N/A
• TechSpec Note: Vehicles with under-hood lights may need to relocate the hood light switch from the driver's side of the upper support bar.
• TechSpec Overall Height (Inches): 8.86
• TechSpec Thread Size: N/A
• TechSpec Ultimate Tensile Strength: N/A
• TechSpec Weight (Ounces): 19

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 64 x 11.25 x 9.03 inches
• Weight: 22.6 POUNDS
