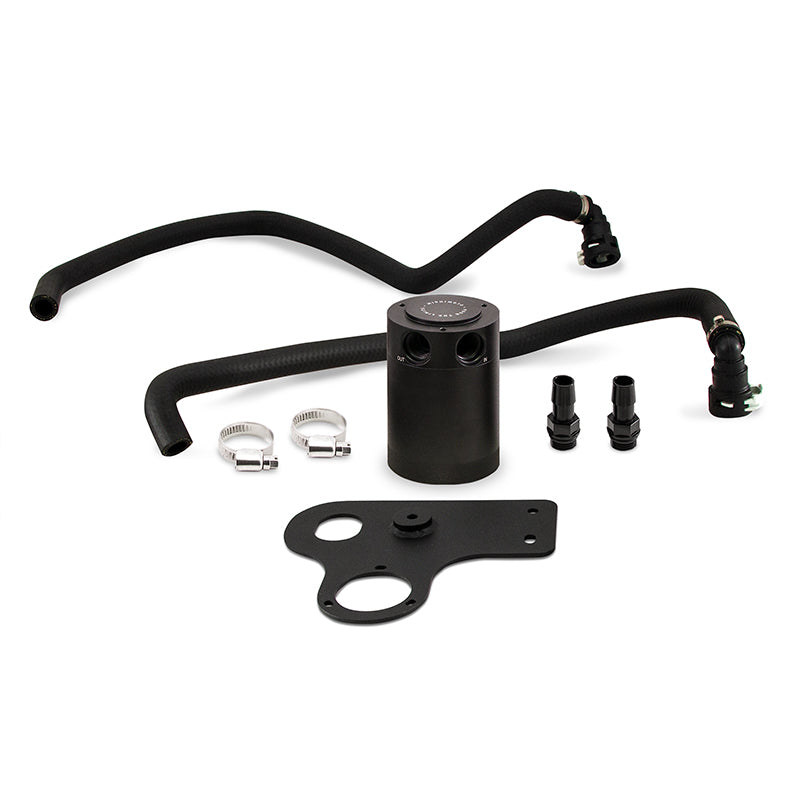

Mishimoto Ford Mustang GT Baffled Oil Catch Can PCV Side 2018-2023

Your 5.0 Coyote engine needs protection now more than ever in your 2018-2023 Mustang GT. With the introduction of direct injection, along with more power in Ford's 3rd Gen Coyote the intake tract is more at risk to the dangers of blow-by. Engine blow-by can cause an oily mess inside intake manifolds and decrease octane levels, potentially increasing chances of detonation. Mishimoto's 2018-2023 Mustang catch can kit features a patent-pending 2-port Compact Baffled Oil Catch Can with a 50-micron bronze filter and an internal baffle to better separate oil from the crankcase vapors. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation. Reducing blow-by becomes even more important with the addition of forced induction, so this 2018-2023 Mustang catch can kit mounts away from most intake and supercharger kits to make room for some more horses. When you're on the road with that 5.0L Coyote, you'll have the peace of mind knowing that blow-by isn't stripping away any of your treasured HP. To back up Mishimoto's superior craftsmanship, each 2018-2023 Mustang catch can kit comes with the renowned Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either.

• Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
• Installs in under 30 minutes
• Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580036989
• Can Finish: Anodized
• Can Material: 6061-T6 Billet Aluminum
• Can Outside Diameter: 2.5
• Can Type: Twist Off
• Color: Black
• Drain Plug Included: Yes
• Finish: Powder Coat
• Height: 3.7
• Hose Included: Yes
• Inlet Port Inside Diameter: 0.6
• Inlet Port Quantity per Can: 1
• Install Difficulty: 2
• Installation Difficulty: 2
• Interior Baffle: Yes
• Material: 6061 Aluminum
• Maximum Can Capacity: 3
• Mounting Bracket Included: Yes
• Outlet Port Inside Diameter: 0.6
• Outlet Port Quantity per Can: 1
• SellingPoint01: Direct fit for the 2018-2023 Ford Mustang GT
• SellingPoint02: Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
• SellingPoint03: Installs in under 30 minutes
• SellingPoint04: Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits
• SellingPoint05: Catch can has a 2 oz. capacity for longer servicing intervals
• SellingPoint06: Silicone hoses include pre-attached stock-style, quick-disconnect fittings for a true plug-and-play install
• SellingPoint07: Billet 6061 aluminum sealed can
• SellingPoint08: Defends intake system and essential components from oil blow-by
• SellingPoint09: Helps maintain proper octane levels to reduce potential detonation
• SellingPoint10: Filter and can are fully serviceable
• SellingPoint11: Internal air diverter turbulates air longer to improve oil separation
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: Patent Nos. US ZL 202120175368.7, US ZL 201830621732.1, US D884,760
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Catch Can Diameter (in): N/A
• TechSpec Chassis Codes: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: N/A
• TechSpec Height (in): N/A
• TechSpec Includes: N/A
• TechSpec Inlet: N/A
• TechSpec Installation Notes: N/A
• TechSpec Material: N/A
• TechSpec Note: N/A
• TechSpec Outlet: N/A

Extended Information:

• Country of Origin: China
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6.96 x 6.96 x 6.96 inches
• Weight: 2.75 POUNDS
