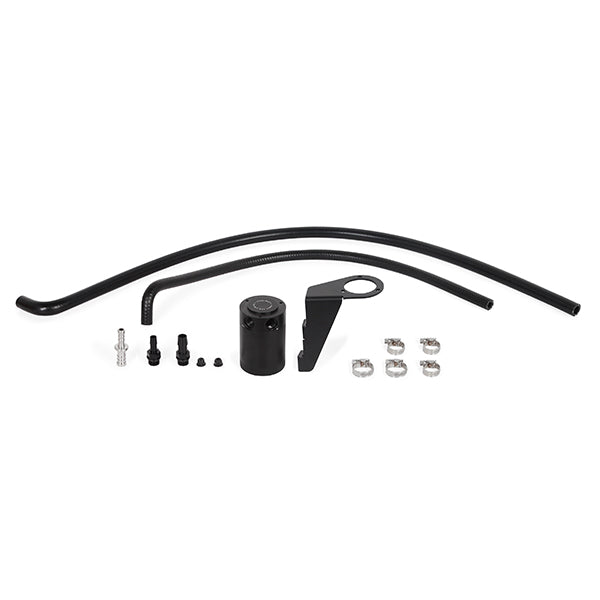

Mishimoto Hyundai Veloster Turbo Direct Fit Catch Can PCV Side 2019-2022

Nothing says fun quite like the Hyundai Veloster. It is practicality and the right amount of zip all wrapped up in the fusion of hot-hatch and coupe. Couple those with the Gamma 1.6T powering the front wheels and you have the complete package. Blow-by, however, has a tendency to put a damper on the fun. With the lack of detergent-rich fuel washing over the valves, carbon now has the perfect environment to quell the performance of that punchy engine. The Mishimoto Hyundai Veloster Turbo Direct-Fit Catch can is here to keep the fun in your Veloster. By mounting our 2-port compact catch can in line with the Gamma's PCV system, the blow-by is trapped before it has the chance to make it to the valves. Our kit includes a robust, application-specific bracket to ensure a sturdy mounting point for your can, along with pre-molded hoses to ensure a simplified installation. We've also included an adapter with this kit, giving you the option to tap directly into the stock PCV line, or fully replace the stock component. Like all of our products, the Mishimoto 2019-2022 Hyundai Veloster Turbo Catch Can includes the Mishimoto Lifetime Warranty for a worry-free installation. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either.

• Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
• Installs in under 30 minutes
• Robust, application-specific bracket mounts the can in a serviceable location

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580035074
• Can Finish: Anodized
• Can Material: 6061-T6 Billet Aluminum
• Can Outside Diameter: 2.5
• Can Type: Twist Off
• Color: Black
• Drain Plug Included: Yes
• Finish: Anodized
• Height: 3.7
• Hose Included: Yes
• Inlet Port Inside Diameter: 0.6
• Inlet Port Quantity per Can: 1
• Install Difficulty: 3
• Installation Difficulty: 2
• Interior Baffle: Yes
• Material: 6061 Aluminum
• Maximum Can Capacity: 3
• Mounting Bracket Included: Yes
• Outlet Port Inside Diameter: 0.6
• Outlet Port Quantity per Can: 1
• SellingPoint01: Direct fit for the 2019-2022 Hyundai Veloster Turbo
• SellingPoint02: Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
• SellingPoint03: Installs in under 30 minutes
• SellingPoint04: Robust, application-specific bracket mounts the can in a serviceable location
• SellingPoint05: Catch can has a 2 oz. capacity for longer servicing intervals
• SellingPoint06: Molded hoses include pre-attached stock-style, quick-disconnect fittings for a true plug-and-play install
• SellingPoint07: Billet 6061 aluminum sealed can
• SellingPoint08: Defends intake system and essential components from oil blow-by
• SellingPoint09: Helps maintain proper octane levels to reduce potential detonation
• SellingPoint10: Filter and can are fully serviceable
• SellingPoint11: Internal air diverter turbulates air longer to improve oil separation
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: Patent Nos. US ZL 202120175368.7, US ZL 201830621732.1, US D884,760
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2019-2022 Hyundai Veloster Turbo
• TechSpec Catch Can Diameter (in): N/A
• TechSpec Chassis Codes: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: Gamma 1.6T
• TechSpec Height (in): N/A
• TechSpec Includes: N/A
• TechSpec Inlet: N/A
• TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM).
• TechSpec Material: N/A
• TechSpec Note: After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
• TechSpec Outlet: N/A

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7.26 x 7.26 x 7.26 inches
• Weight: 3.48 POUNDS
