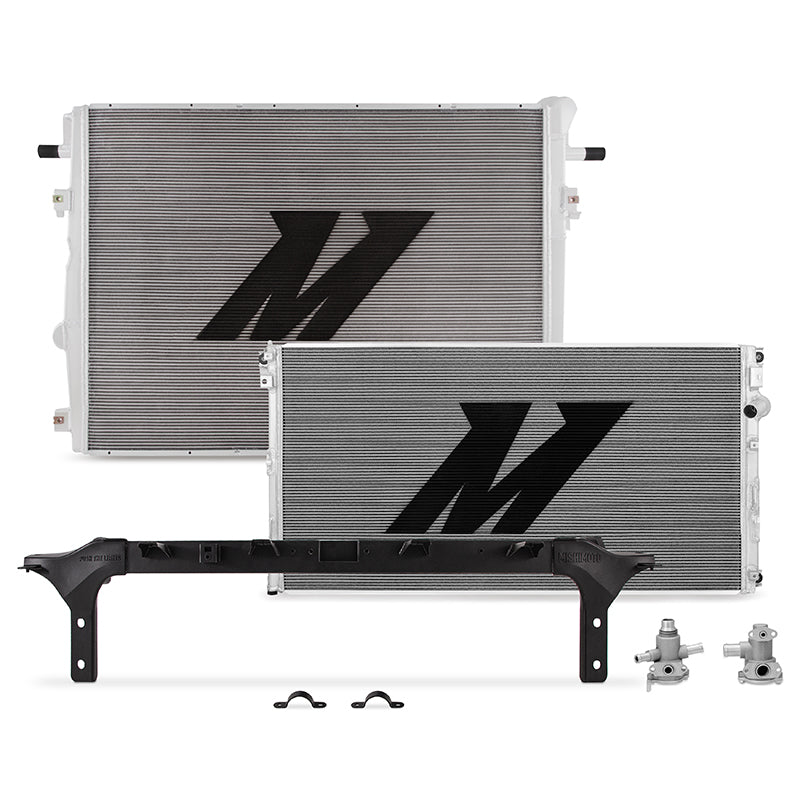

Mishimoto MMB-F2D-003 Essentials Protection Bundle Fits Ford 6.7L Powerstroke 2011-2016

• Includes 6.7L Powerstroke primary radiator, secondary radiator, and upper support bar
• Primary radiator features extruded tubes with internal struts for increased strength and pressure tolerance
• Primary radiator increases coolant capacity by 37-percent and boasts a 10-percent thicker core than the stock radiator

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580037153
• Install Difficulty: 4
• SellingPoint01: Direct fit for the 2011-2016 Ford 6.7L Powerstroke
• SellingPoint02: Includes 6.7L Powerstroke primary radiator, secondary radiator, and upper support bar
• SellingPoint03: Primary radiator features extruded tubes with internal struts for increased strength and pressure tolerance
• SellingPoint04: Primary radiator increases coolant capacity by 37-percent and boasts a 10-percent thicker core than the stock radiator
• SellingPoint05: Secondary radiator increases cooling surface area by 27-percent and reduces charge air cooler temperatures by up to 6F
• SellingPoint06: Includes two new cast aluminum thermostat housings
• SellingPoint07: Primary and secondary radiators feature TIG-welded end tanks on a sturdy brazed aluminum core.
• SellingPoint08: Upper support bar improves front-end rigidity, reducing stress on cooling components
• SellingPoint09: Upper support bar features cast steel anchor points and tube steel center for improved strength
• SellingPoint10: Patent No. US D966,950 S
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Mishimoto 6.7L Primary Radiator-- Mishimoto 6.7L Secondary Radiator-- Mishimoto Support Bar--(2) Upper Support Bar Mounting Brackets--(2) Cast Thermostat Housings--(2) Magnetic Drain Plugs w/ Dowty Oil Seal--(4) Rubber Bushings & Metal Collars--(3) Hardware Packs--(4) M6 x 1.0 x 16mm Bolts--(12) Black Plastic Tree Clips--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (ins): N/A
• TechSpec Rows: N/A

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 33.71 x 33.71 x 33.71 inches
• Weight: 107.43 POUNDS
