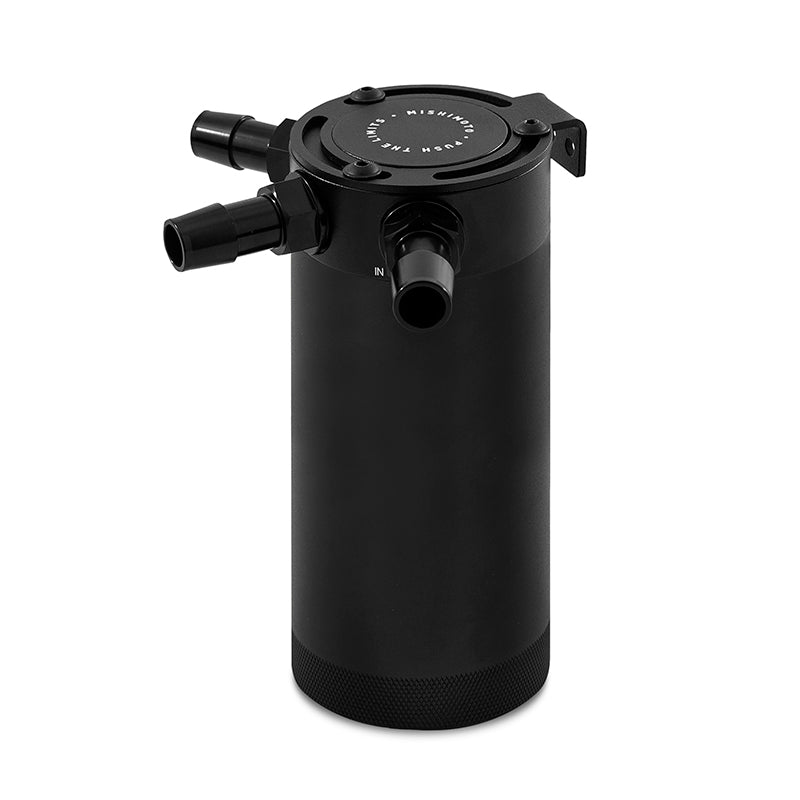

Mishimoto MMBCC-CBTHR-XLBK Baffled Oil Catch Can Black 3-Port XL Compact

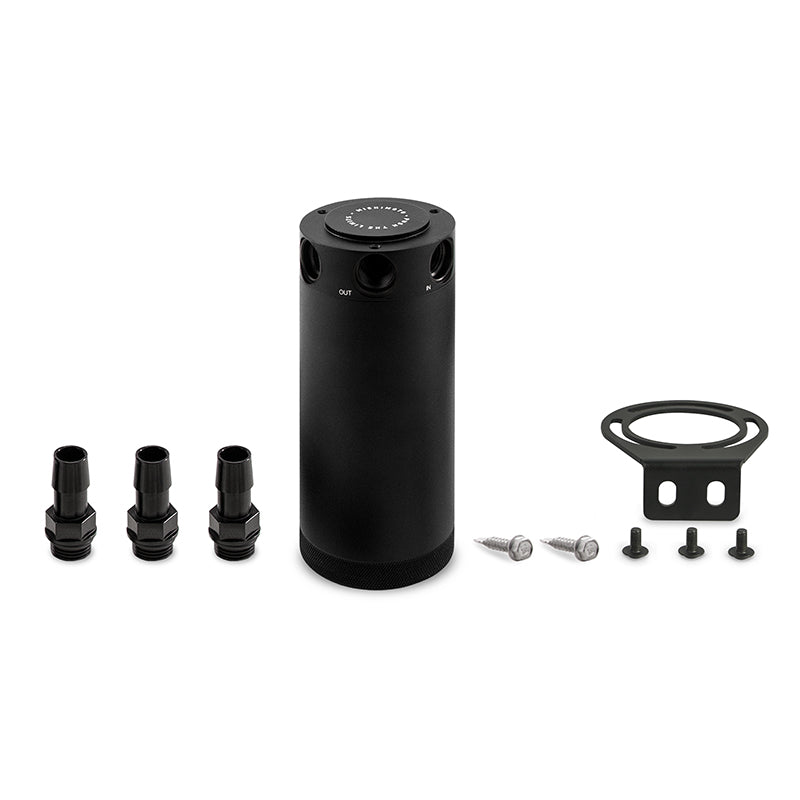

With years of oil catch can research and development, Mishimoto has created the most effective oil catch can on the market. The patent pending Mishimoto XL Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter increases air turbulence and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50-micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. This oil catch can features three ports, two inlet and one outlet, for easy installation on CCV and PCV systems.The Mishimoto XL Baffled Oil Catch Can features a 7.5 fluid ounce capacity for heavy blow-by collection or extending the servicing interval on any vehicle. The 100-percent billet, 6061 aluminum can features M16 x 1.5 threads at the inlet, outlet, and drain area and includes three black anodized, CNC-machined aluminum fittings to make installation effortless. Our catch can is also sealed with Viton(TM) O-Rings to ensure all captured blow-by stays inside of the can. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of our catch cans, you won't want that draining back into your oil either.

• Separates oil particles from PCV/CCV air using 50 micron bronze filter
• 100-percent billet 6061 aluminum sealed can
• Defends intercooler, intake system, and essential components from oil blow-by

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580036378
• Can Finish: Anodized
• Can Material: 6061-T6 Billet Aluminum
• Can Outside Diameter: 2.5
• Can Type: Twist Off
• Color: N/A
• Drain Plug Included: Yes
• Finish: Anodized
• Height: 6.2
• Hose Included: Yes
• Inlet Port Inside Diameter: 0.6
• Inlet Port Quantity per Can: 2
• Install Difficulty: 2
• Interior Baffle: Yes
• Maximum Can Capacity: 7.5
• Mounting Bracket Included: Yes
• Outlet Port Inside Diameter: 0.6
• Outlet Port Quantity per Can: 1
• SellingPoint01: Separates oil particles from PCV/CCV air using 50 micron bronze filter
• SellingPoint02: 100-percent billet 6061 aluminum sealed can
• SellingPoint03: Defends intercooler, intake system, and essential components from oil blow-by
• SellingPoint04: Helps maintain proper octane levels to reduce potential detonation
• SellingPoint05: Features two inlets and one outlet
• SellingPoint06: Filter and can are both fully serviceable
• SellingPoint07: Safe for pressurized applications
• SellingPoint08: Internal air diverter increases air turbulence to improve oil separation
• SellingPoint09: Includes 2 aluminum barbed 1/2-in hose fittings
• SellingPoint10: Universal mounting bracket for different configurations
• SellingPoint11: Patent No. US D910,727
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Catch Can Diameter (in): N/A
• TechSpec Chassis Codes: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: N/A
• TechSpec Height (in): N/A
• TechSpec Includes: N/A
• TechSpec Inlet: N/A
• TechSpec Installation Notes: N/A
• TechSpec Material: N/A
• TechSpec Note: N/A
• TechSpec Outlet: N/A

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8 x 2.7 x 3.4 inches
• Weight: 1.4 POUNDS
