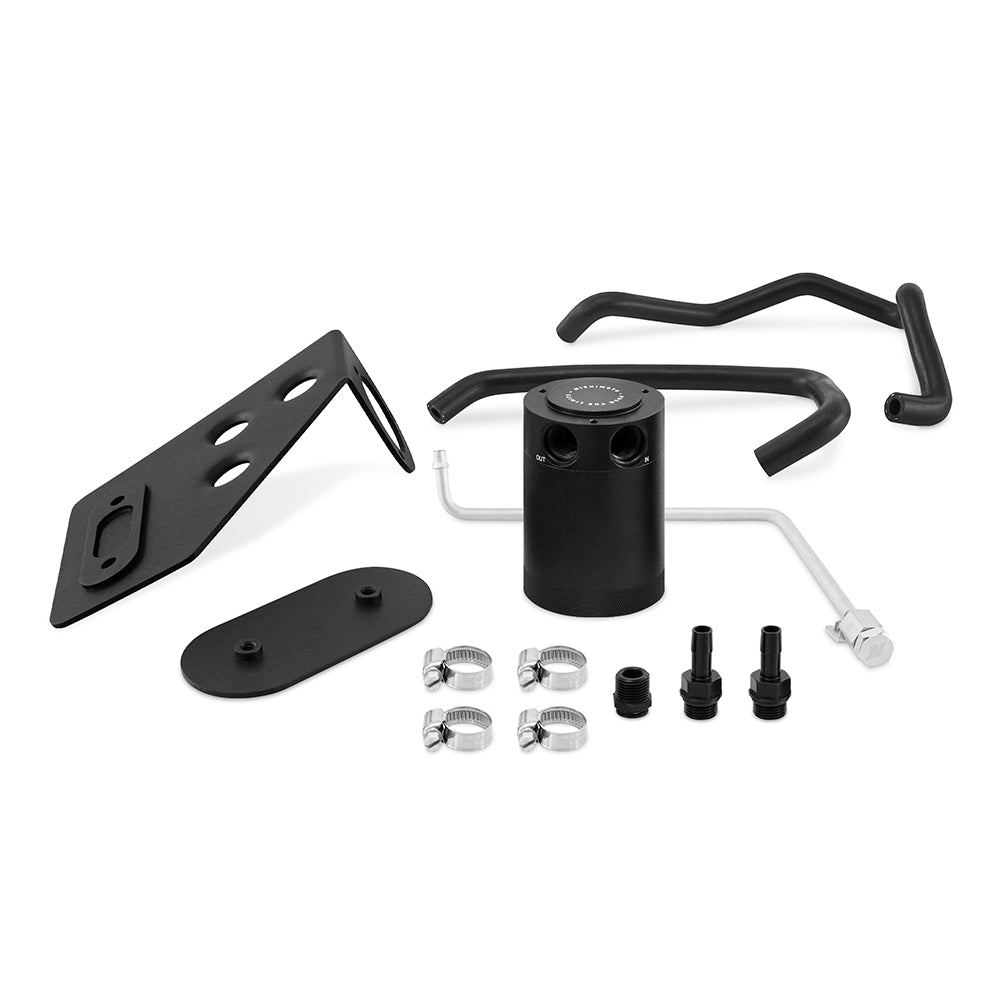

Mishimoto MMBCC-SUP-20CBE Baffled Oil Catch Can CCV Side Fits Toyota GR Supra 3.0L 2020+

The Supra is back! This means that now is the perfect time to add a layer of protection to your B58 with the Mishimoto 2020+ Toyota Supra Baffled Oil Catch Can. The tag-team between Toyota and BMW resulted in a sleek new look for the A90 Supra, teeming with power, technology, and efficiency. However, the inevitable side effect of blow-by still found its way to this Supra, which will lead to carbon build-up on the intake valves, eventually slowing this Supra down. Our catch can kit utilizes the proven engineering from the patent-pending Mishimoto 2-Port Compact Baffled Oil Catch Can complete with its 50-micron bronze filter and internal baffle to better separate the oil and fuel from crankcase vapors. The compact catch can is constructed from 6061 aluminum and sealed with Viton O-rings to stand up to anything the Supra can throw at it. This can mounts in line with the B58's CCV system and defends the intercooler, intake system, and VANOS system from carbon build-up and helps maintain proper octane levels to reduce potential detonation. The Mishimoto Toyota Supra Catch Can Kit includes two pre-molded, direct-fit hoses which require no modification to tie into the Supra's CCV system. Our kit also includes a specially designed, hard-line drain system, complete with a threaded drain plug for simplified servicing and long-lasting protection for your Supra. Like every Mishimoto oil catch can, this baffled catch can kit comes with the Mishimoto Lifetime Warranty!Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by can condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of our catch cans, you won?t want that draining back i

• Single 2-Port Compact Baffled Oil Catch Can separates oil particles using 50-micron bronze filter
• Application-specific bracket mounts the can in a serviceable location
• Direct-fit hoses allow for installation with no modification to engine cover

Vehicle Specific

• 2020+ Toyota GR Supra 3.0L

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580037573
• Can Finish: Anodized
• Can Material: 6061-T6 Billet Aluminum
• Can Outside Diameter: 2.5
• Can Type: Twist Off
• Color: Black
• Drain Plug Included: Yes
• Finish: Powder Coat
• Height: 3.7
• Hose Included: Yes
• Inlet Port Inside Diameter: 0.6
• Inlet Port Quantity per Can: 1
• Install Difficulty: 2
• Installation Difficulty: 2
• Interior Baffle: Yes
• Material: Aluminum
• Maximum Can Capacity: 3
• Mounting Bracket Included: Yes
• Outlet Port Inside Diameter: 0.6
• Outlet Port Quantity per Can: 1
• SellingPoint01: Direct fit for 2020+ Toyota Supra 3.0L
• SellingPoint02: Single 2-Port Compact Baffled Oil Catch Can separates oil particles using 50-micron bronze filter
• SellingPoint03: Application-specific bracket mounts the can in a serviceable location
• SellingPoint04: Direct-fit hoses allow for installation with no modification to engine cover
• SellingPoint05: Application-specific lid designed so fitting size matches CCV line size
• SellingPoint06: Billet 6061 aluminum sealed can
• SellingPoint07: Defends intercooler, intake system, from oil blow-by
• SellingPoint08: Helps maintain proper octane levels to reduce potential detonation
• SellingPoint09: Internal air diverter increases air turbulence to improve oil separation
• SellingPoint10: Filters and can are fully serviceable
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: Patent Nos. US ZL 202120175368.7, US ZL 201830621732.1, US D884,760
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Catch Can Diameter (in): N/A
• TechSpec Chassis Codes: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: N/A
• TechSpec Height (in): N/A
• TechSpec Includes: N/A
• TechSpec Inlet: N/A
• TechSpec Installation Notes: N/A
• TechSpec Material: N/A
• TechSpec Note: N/A
• TechSpec Outlet: N/A

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.67 x 8.67 x 8.67 inches
• Weight: 3.34 POUNDS
