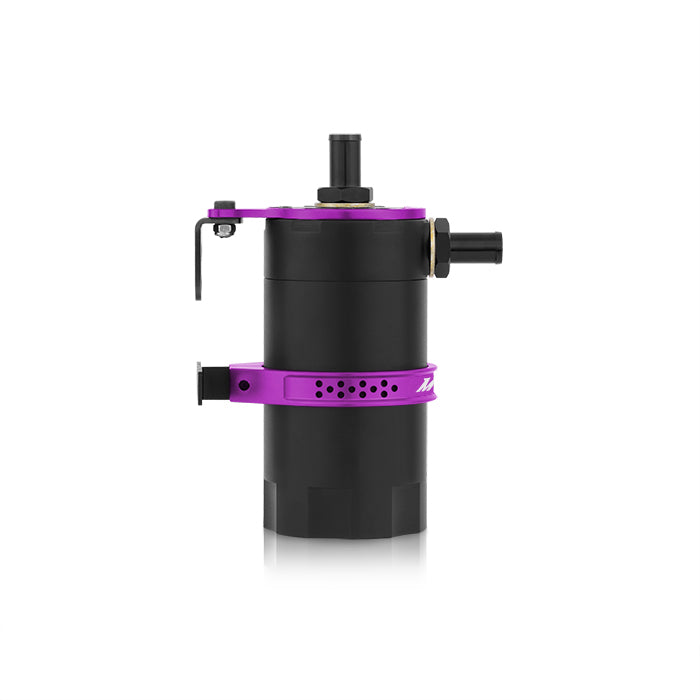

Mishimoto MMBCC-UNI-PR Baffled Oil Catch Can Purple

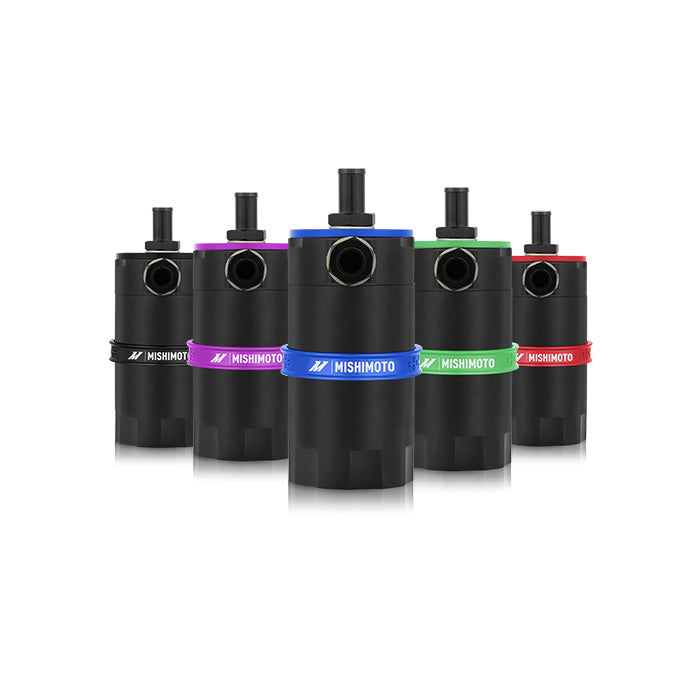

Mishimoto is proud to announce the release of our Baffled Oil Catch Can.With over a year of research and development time, Mishimoto has created the most effective oil catch can on the market.The Mishimoto Baffled Oil Catch can was designed to separate oil particles from the PCV air that would normally have just been routed back to your intake.Custom grooves in the catch can's inlet turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake.An internal baffle keeps the collected oil from splashing around under race conditions.The 100-percent billet, 6061 aluminum can accepts inAN fittings at the intlet, outlet, and drain area allowing over 25 possible configurations.For maximum fitment options, the top cog mounting setup allows the can to be mounted from multiple angles.To make maintenance easy, the drain plug can be removed to allow for inAN return to the oil pain.The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.The Mishimoto Baffled Oil Catch Can is available in a variety of colors as well, so it will be sure to match your style and taste!

• 40-micron bronze filter blocks oil from depositing in ventilation system
• Special engineered inlet pattern turbulates air longer, allowing oil to condense
• Internal baffle ensures no oil escapes during high-speed cornering

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748666003576
• Color: Purple
• Install Difficulty: 2
• SellingPoint01: 40-micron bronze filter blocks oil from depositing in ventilation system
• SellingPoint02: Special engineered inlet pattern turbulates air longer, allowing oil to condense
• SellingPoint03: Internal baffle ensures no oil escapes during high-speed cornering
• SellingPoint04: Replaceable single-unit filter is easy to maintain
• SellingPoint05: Inlet and outlet accept -AN fittings for various configurations
• SellingPoint06: 100-percent billet anodized 6061 aluminum with laser etched finish
• SellingPoint07: Safe to use in pressurized systems
• SellingPoint08: Drain plug can be removed to allow for -AN return to oil pan
• SellingPoint09: Unique upper mounting bracket cogs provide versatile mounting options
• SellingPoint10: Includes push-on fittings for easy installation
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Catch Can Diameter (in): 3
• TechSpec Chassis Codes: N/A
• TechSpec Drain Plug Thread Size: M20x1.5
• TechSpec Engine Codes: N/A
• TechSpec Height (in): 6
• TechSpec Includes: (1) Black, Anodized 6061 Aluminum Catch Can--(2) Aluminum Mounting Brackets--(1) Bronze Filter--(1) Internal Baffle--(3) Dowty Oil Seals--(2) M20x1.5 x 5/8" Push-on Barbed Fittings--(1) Drain Plug--(6) Black Rubber Oil Line--(4) Worm Gear Clamps--(1) Black Rubber Band--Mounting Hardware and Brackets--Mishimoto Lifetime Warranty
• TechSpec Inlet: M20x1.5
• TechSpec Installation Notes: N/A
• TechSpec Material: 6061 Aluminum
• TechSpec Note: Drain plug is attached to the internal baffle and if it is replaced, the internal baffle may not be usable again.----After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.----5/8 inlet hose--Push fitting inlet/outlet has a thread pitch of M20x1.5. To convert to -10AN, see https://www.mishimoto.com/sandwich-plate-fitting-m20-x-10an.html
• TechSpec Outlet: M20x1.5

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15.08 x 15.08 x 15.08 inches
• Weight: 7.75 POUNDS
