Mishimoto MMBCC-Z-23P Baffled Oil Catch Can PCV Side Fits Nissan Z 2023+

The new 2023+ Nissan Z is one of the most coveted sports cars available. With a lineage of performance stretching back over 50 years, the Z combines decades of performance pedigree with modern tech to create a formidable driving machine. But not every part of the Z has been perfected over the last six generations. The powerful VR30DDTT is equipped with twin turbos, a direct injection fueling system, and a high compression ratio, resulting in the perfect storm for blow-by.----Over time, sneaky blow-by can gum up and leave a hardened coating on your valves, compromising the performance and efficiency of your engine. Luckily, the Mishimoto 2023+ Nissan Z PCV Side Baffled Oil Catch Can will capture and collect blow-by before it reaches your intake tract. Installed in line with the VR30DDTT's PCV system, this 2-port compact catch can features a 50-micron fiber bronze filter and an air diverter baffle that intercept oil particles before they reach the crankcase and other vital components, leaving nothing but clean air for your intake system.----Unlike most air-oil-separator (AOS) systems, Mishimoto catch cans are not heated and don't drain blow-by back into the oil pan. These factors allow blow-by, including low-octane oil vapors, to condense in the can and drip into the canister, keeping it out of the engine permanently. This can is also fully washable and includes a slotted mounting screw, making servicing a breeze.----The kit comes with everything needed for install, including a direct-fit steel powder-coated bracket, pre-formed application-specific hoses, billet 6061-aluminum can with black CNC-machined aluminum fittings, and all required hardware for a clean and easy installation. As with all our products, this 2023+ Nissan Z catch can kit is backed by our signature Mishimoto Lifetime Warranty!

• Installs in under 30 minutes
• Includes everything needed for installation
• Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197713006
• Can Finish: Anodized
• Can Material: 6061-T6 Billet Aluminum
• Can Outside Diameter: 2.5
• Can Type: Twist Off
• Color: Black
• Drain Plug Included: Yes
• Finish: Anodized
• Height: 3.7
• Hose Included: Yes
• Inlet Port Inside Diameter: 0.6
• Inlet Port Quantity per Can: 1
• Install Difficulty: 2
• Interior Baffle: Yes
• Maximum Can Capacity: 3
• Mounting Bracket Included: Yes
• Outlet Port Inside Diameter: 0.6
• Outlet Port Quantity per Can: 1
• SellingPoint01: Direct fit for the 2023+ Nissan Z
• SellingPoint02: Installs in under 30 minutes
• SellingPoint03: Includes everything needed for installation
• SellingPoint04: Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
• SellingPoint05: Defends intake system and essential components from oil blow-by
• SellingPoint06: Helps maintain proper octane levels to reduce potential detonation
• SellingPoint07: Robust, application-specific bracket mounts the can in a serviceable location away from engine vibration
• SellingPoint08: Catch can has a 2 oz. capacity for longer servicing intervals
• SellingPoint09: Filter and can are fully serviceable
• SellingPoint10: Internal air diverter turbulates air longer to improve oil separation
• SellingPoint11: Billet 6061-aluminum sealed can
• SellingPoint12: Hoses include pre-attached stock-style, quick-disconnect fittings for a true plug-and-play install
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: Patent No. US D884,760
• SellingPoint15: N/A
• TechSpec Applications: 2023+ Nissan Z
• TechSpec Catch Can Diameter (in): 2.5
• TechSpec Chassis Codes: RZ34
• TechSpec Drain Plug Thread Size: 3/8-NPT
• TechSpec Engine Codes: VR30DDTT
• TechSpec Height (in): 3.7

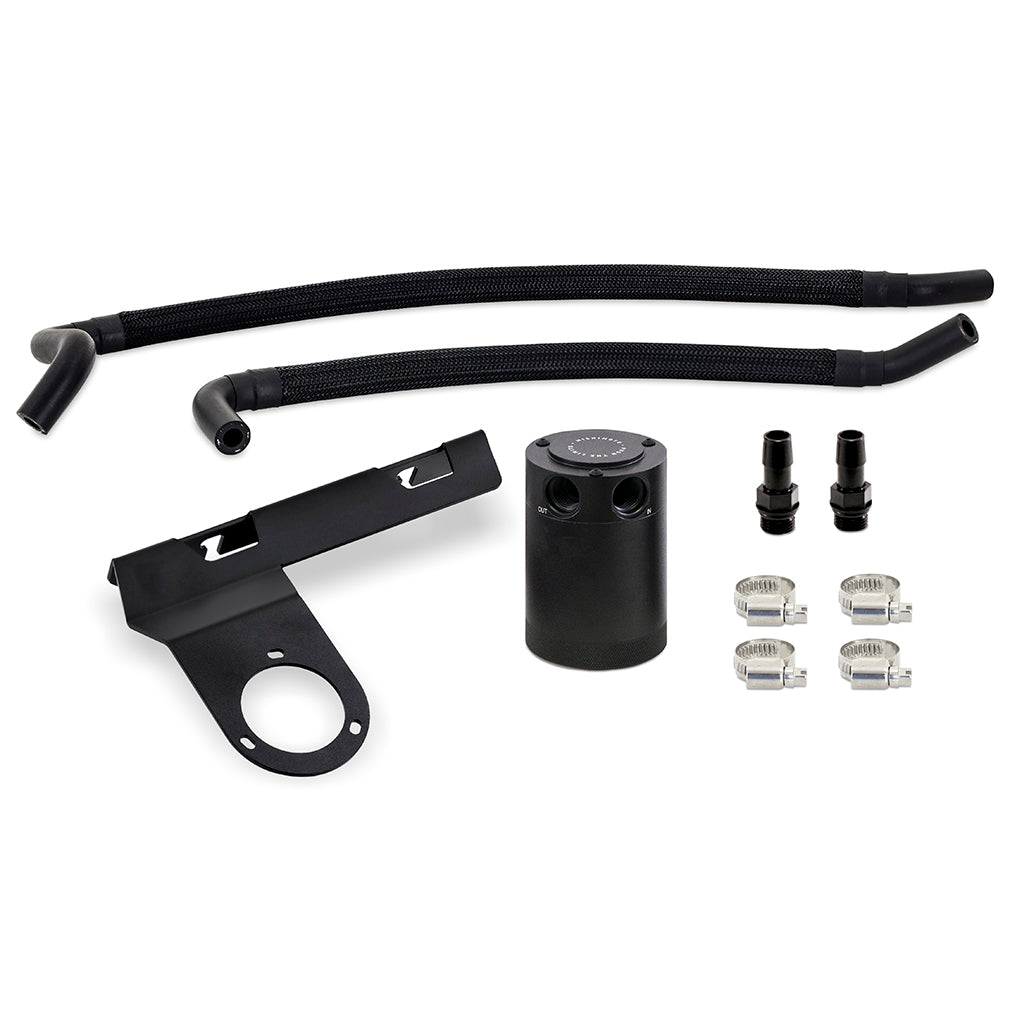

• TechSpec Includes: (1) Compact Baffled Oil Catch Can--(2) Direct Fit Hoses--(1) Application-Specific Mounting Bracket--(2) 3/8-in Aluminum Barbed Fittings--(2) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet: M16X1.5
• TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM)
• TechSpec Material: AL-6061
• TechSpec Note: After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
• TechSpec Outlet: M16X1.5

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6.75 x 6.75 x 6.75 inches
• Weight: 2.84 POUNDS
