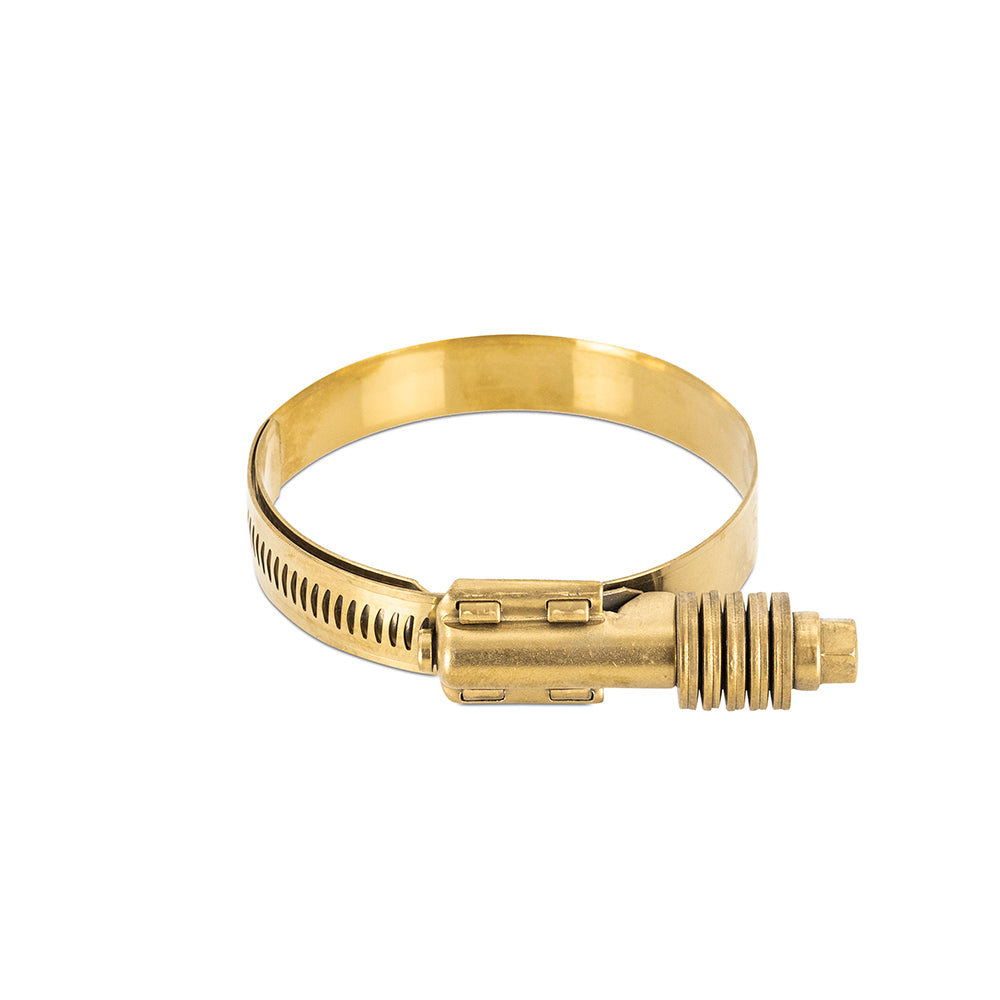

Mishimoto MMCLAMP-CTWG-117GD Worm Gear Clamp Constant Tension Gold 3.74in To 4.61in

Just like our high-torque worm gear clamps, Mishimoto's Constant Tension Worm Gear Clamps are an effective solution to a wide range of clamping needs. Where this 3.74" - 4.61" (95mm - 117mm) constant tension worm gear clamp excels, however, is in high-temperature applications. The spring on the adjustment bolt allows the clamp to exert continuous pressure through a wide range of temperatures to ensure your parts stay clamped as strong as the day you installed them. This 3.74" - 4.61" (95mm - 117mm) constant tension worm gear clamp is made from stainless steel to weather any environment and ensure a tight seal for years to come. Our constant tension worm gear clamps are also available in a wide variety of other sizes to suit everything from coolant lines to intake pipes. Like all Mishimoto products, this 3.74" - 4.61" (95mm - 117mm) constant tension worm gear clamp is backed by our Mishimoto Lifetime Warranty.

• Securely clamps pipes, couplers, and hoses with an outer diameter from 3.74- 4.61-in (95mm-117mm)
• Constant tension spring maintains clamping pressure through a wide range of temperatures
• Worm gear design for quick and easy tightening

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197707326
• Band Width: 0.62
• Color: Gold
• Finish: Plain
• Grade Type: Premium
• Install Difficulty: 1
• Material: Stainless Steel
• Maximum Diameter: 4.61
• Minimum Diameter: 3.74
• OptionLabel: Gold
• Recommended Torque: 168
• Reusable: Yes
• SAE Size: 74
• SAE Type: F
• SellingPoint01: Securely clamps pipes, couplers, and hoses with an outer diameter from 3.74- 4.61-in (95mm-117mm)
• SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
• SellingPoint03: Worm gear design for quick and easy tightening
• SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
• SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
• SellingPoint06: Clamps sold individually
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• Size: 4.61
• Spring Material: Steel
• TechSpec Band Width (in): 0.62
• TechSpec Clamp Style: Constant Tension Worm Gear Clamp
• TechSpec Includes: (1) Mishimoto Constant Tension Worm Gear Clamp--Mishimoto Lifetime Warranty
• TechSpec Material: Stainless Steel
• TechSpec Maximum Clamp Diameter (in): 4.61
• TechSpec Minimum Clamp Diameter (in): 3.74
• TechSpec Note: If using this clamp, we recommend purchasing:--MMICP-SS-25U----MMICP-SS-3U
• TechSpec Recommended Tightening Torque: 14 lb-ft (20 NM)
• TechSpec SAE Number: 462
• Type: Worm Gear

Extended Information:

• Country of Origin: China
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4.5 x 5 x 1 inches
• Weight: 0.29 POUNDS
