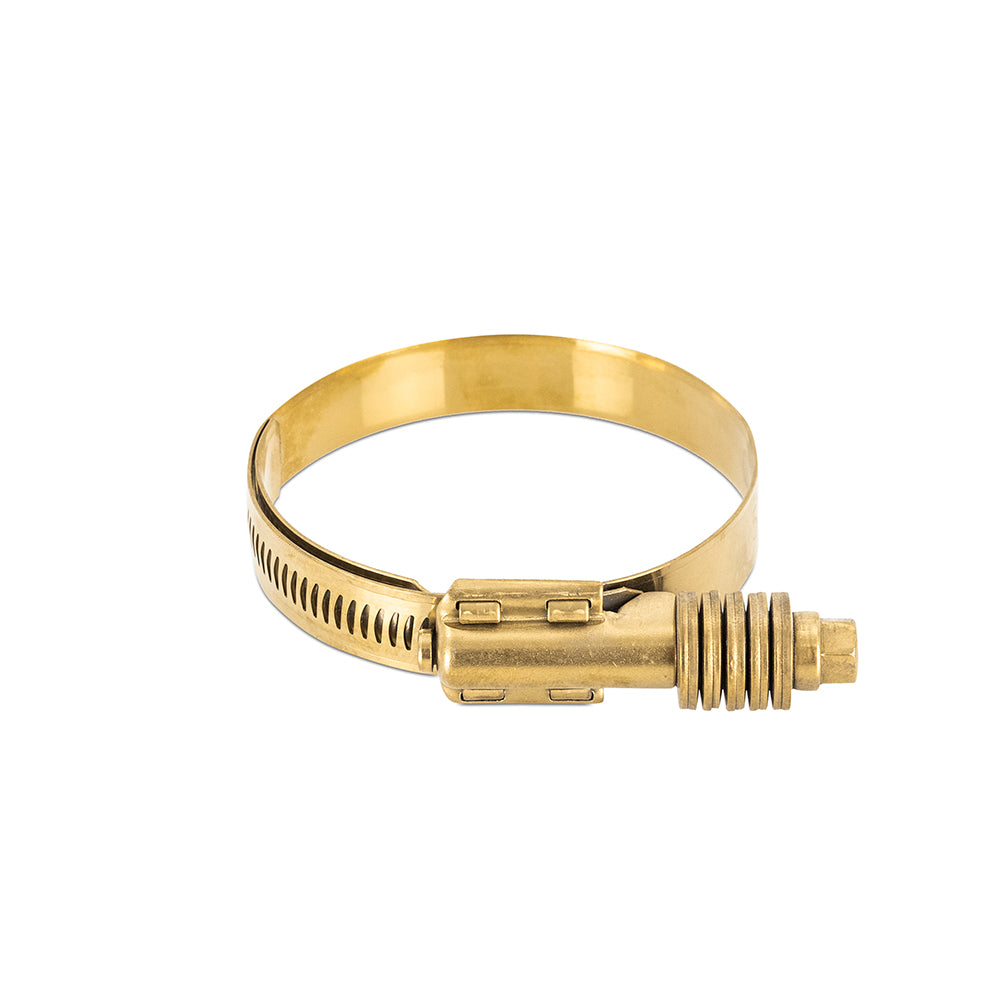

Just like our high-torque worm gear clamps, Mishimoto’s Constant Tension Worm Gear Clamps are an effective solution to a wide range of clamping needs. Where this 2.24" - 3.11" (57mm - 79mm) constant tension worm gear clamp excels, however, is in high-temperature applications. The spring on the adjustment bolt allows the clamp to exert continuous pressure through a wide range of temperatures to ensure your parts stay clamped as strong as the day you installed them. This 2.24" - 3.11" (57mm - 79mm) constant tension worm gear clamp is made from stainless steel to weather any environment and ensure a tight seal for years to come. Our constant tension worm gear clamps are also available in a wide variety of other sizes to suit everything from coolant lines to intake pipes. Like all Mishimoto products, this 2.24" - 3.11" (57mm - 79mm) constant tension worm gear clamp is backed by our Mishimoto Lifetime Warranty.
- Securely clamps pipes, couplers, and hoses with an outer diameter from 2.24- 3.11-in (57mm-79mm)
- Constant tension spring maintains clamping pressure through a wide range of temperatures
- Worm gear design for quick and easy tightening
Attributes:
-
Brand Name: Mishimoto
-
GTIN: 00840197707357
-
Install Difficulty: 1
-
OptionLabel: Gold
-
SellingPoint01: Securely clamps pipes, couplers, and hoses with an outer diameter from 2.24- 3.11-in (57mm-79mm)
-
SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
-
SellingPoint03: Worm gear design for quick and easy tightening
-
SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
-
SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
-
SellingPoint06: Clamps sold individually
-
SellingPoint07: Mishimoto Lifetime Warranty
-
SellingPoint08: N/A
-
SellingPoint09: N/A
-
SellingPoint10: N/A
-
SellingPoint11: N/A
-
SellingPoint12: N/A
-
SellingPoint13: N/A
-
SellingPoint14: N/A
-
SellingPoint15: N/A
-
TechSpec Band Width (in): 0.62
-
TechSpec Clamp Style: Constant Tension Worm Gear Clamp
-
TechSpec Includes: (1) Mishimoto Constant Tension Worm Gear Clamp--Mishimoto Lifetime Warranty
-
TechSpec Material: Stainless Steel
-
TechSpec Maximum Clamp Diameter (in): 3.11
-
TechSpec Minimum Clamp Diameter (in): 2.24
-
TechSpec Note: If using this clamp, we recommend purchasing:--MMICP-SS-21----MMICP-SS-250----MMICP-SS-259----MMICP-SS-251----MMICP-SS-30----MMICP-SS-39----MMICP-SS-31----MMICP-250----MMICP-259----MMICP-251----MMICP-AL-2750----MMICP-AL-2759----MMICP-AL-2751----MMICP-AL-30----MMICP-AL-39----MMICP-AL-31----MMICP-AL-40----MMICP-AL-41----MMICP-SS-151----MMICP-SS-1751
-
TechSpec Recommended Tightening Torque: 14 lb-ft (20 NM)
-
TechSpec SAE Number: 312
Extended Information:
-
Country of Origin: China
-
Emissions : 4
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 4.15 x 5.1 x 0.7 inches
-
Weight: 0.2 POUNDS
