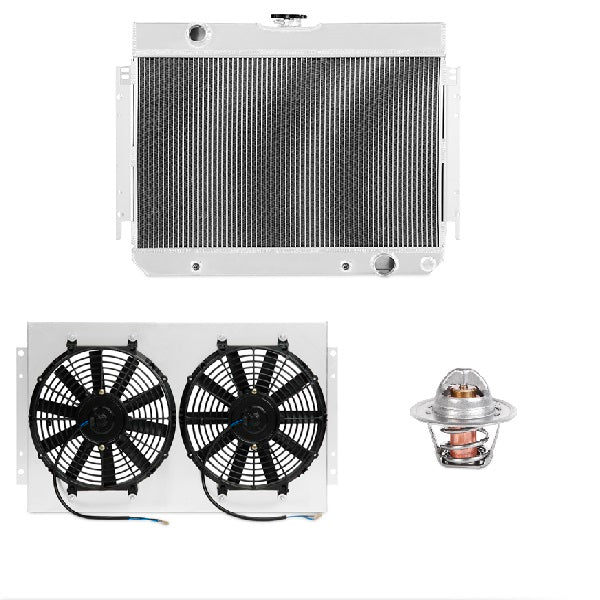

Mishimoto MMCPKG-CHE-65 Cooling Package Fits Chevrolet Chevelle 250/283

Mishimoto's 1965-1967 Chevrolet Chevelle Cooling Package combines the best Mishimoto products into one, easy to order package. The combination of Mishimoto's radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your Chevelle is used as a weekend cruiser or a drag strip monster, Mishimoto's classic cooling package will provide the ultimate coolant system upgrade. As with all our products, this Chevrolet Chevelle cooling package includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
• 3-Row brazed aluminum radiator core
• Billet aluminum radiator fill neck

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354025613
• Install Difficulty: 4
• SellingPoint01: Direct fit for 1966-1968 Chevy Bel Air with a 250 or 283
• SellingPoint02: All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
• SellingPoint03: 3-Row brazed aluminum radiator core
• SellingPoint04: Billet aluminum radiator fill neck
• SellingPoint05: Radiator includes internal transmission cooler to ensure optimal fluid temperatures
• SellingPoint06: Includes two high-flow 12-in electric fans, each providing over 1150 cfm of airflow
• SellingPoint07: Fan Shroud replaces failure-prone stock mechanical fan
• SellingPoint08: Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
• SellingPoint09: Thermostat is digitally calibrated for precise, consistent operation
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1965-1967 Chevrolet Chevelle (250ci 4.1L I6, 283ci 4.6L V8)----1966-1968 Chevrolet Impala (250ci 4.1L I6, 283ci 4.6L V8)----1966-1968 Chevrolet Caprice (250ci 4.1L I6, 283ci 4.6L V8)----1966-1968 Chevrolet Bel Air (250ci 4.1L I6, 283ci 4.6L V8)----1966-1968 Chevrolet Biscayne (250ci 4.1L I6, 283ci 4.6L V8)----1966-1967 Chevrolet El Camino (230ci 3.8L I6, 250ci 4.1L I6, 283ci 4.6L V8)----1966 Chevrolet Malibu (283ci 4.6L V8)
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 16
• TechSpec Core Length (in): 24.7
• TechSpec Core Thickness (in): 2.5
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Mishimoto Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug-- Aluminum Fan Shroud--(2) 14-inch Mishimoto Slim Electric Fans--Mounting Hardware-- Mishimoto Thermostat--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.5
• TechSpec Material: N/A
• TechSpec Note: MISHIMOTO ACTIVATION TEMPERATURE--180 F / 82 C----STOCK ACTIVATION TEMPERATURE--195 F / 90.5 C----FAN SPECIFICATIONS------MOUNTING HARDWARE--(4) Mounting Spacers--(4) 1-inch Self-tapping Screws----OVERALL SIZE--Length - 28.74-inch--Height - 19.7-inch--Width - .91-inch----CFM--Each fan puts out 1,300 CFM----NOTE--Electric fans already come attached to the shroud
• TechSpec Outlet (in): 1.75
• TechSpec Overall Height (in): 21.7
• TechSpec Overall Length (in): 27.7
• TechSpec Overall Width (ins): 4.5
• TechSpec Rows: 3

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20.41 x 20.41 x 20.41 inches
• Weight: 32.65 POUNDS
