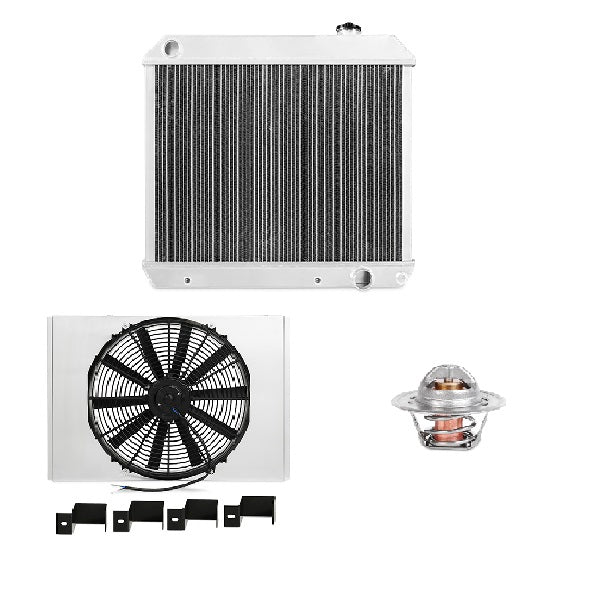

Mishimoto MMCPKG-CK-63 Cooling Package Fits Chevrolet/GMC C/K Truck 250/283/292

Mishimoto's 1963-1966 C/K Truck Cooling Package combines the best Mishimoto products into one, easy to order package. The combination of Mishimoto's radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your C/K Truck is used as a weekend cruiser or a drag strip monster, Mishimoto's classic cooling package will provide the ultimate coolant system upgrade. As with all our products, this C/K Truck cooling package includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
• 3-Row brazed aluminum radiator core
• Billet aluminum radiator fill neck

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354025637
• Core Construction: Tube-and-Fin
• Core Height: 22.8
• Core Length: 17.4
• Core Material: Aluminum
• Core Row Quantity: 3
• Core Thickness: 2
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Drain Plug Thread Type Standard: Metric
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Inlet Diameter: 1.75
• Inlet Location: Top Left
• Install Difficulty: 4
• Internal Transmission Oil Cooler: Yes
• Mounting Hardware Included: Yes
• Outlet Diameter: 1.75
• Outlet Location: Bottom Right
• Overall Height: 25.2
• Overall Length: 23
• Overall Width: 4.5
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for 1963-1966 Chevy/GMC C/K Truck with a 250, 283 or 292
• SellingPoint02: All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
• SellingPoint03: 3-Row brazed aluminum radiator core
• SellingPoint04: Billet aluminum radiator fill neck
• SellingPoint05: Radiator includes internal transmission cooler to ensure optimal fluid temperatures
• SellingPoint06: Includes a high-flow 16-in electric fan, providing over 1850 cfm of airflow
• SellingPoint07: Fan Shroud replaces failure-prone stock mechanical fan
• SellingPoint08: Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
• SellingPoint09: Thermostat is digitally calibrated for precise, consistent operation
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• Tank Material: Aluminum
• TechSpec Applications: 1963-1966 GMC C/K Pickup--1963-1966 GMC C/K Suburban
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 22.8
• TechSpec Core Length (in): 17.4
• TechSpec Core Thickness (in): 2
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: 250ci (4.1L) L6--283ci (4.6L) V8--292ci (4.8L) L6
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Mishimoto Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug-- Aluminum Fan Shroud-- 16-inch Mishimoto Slim Electric Fan--Mounting Hardware-- Mishimoto Thermostat--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.75
• TechSpec Material: N/A
• TechSpec Note: Electric fans already come attached to the shroud
• TechSpec Outlet (in): 1.75
• TechSpec Overall Height (in): 25.2
• TechSpec Overall Length (in): 23
• TechSpec Overall Width (ins): 4.5
• TechSpec Rows: 3
• Thermostat Included: Yes

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20.9 x 20.9 x 20.9 inches
• Weight: 28.45 POUNDS
