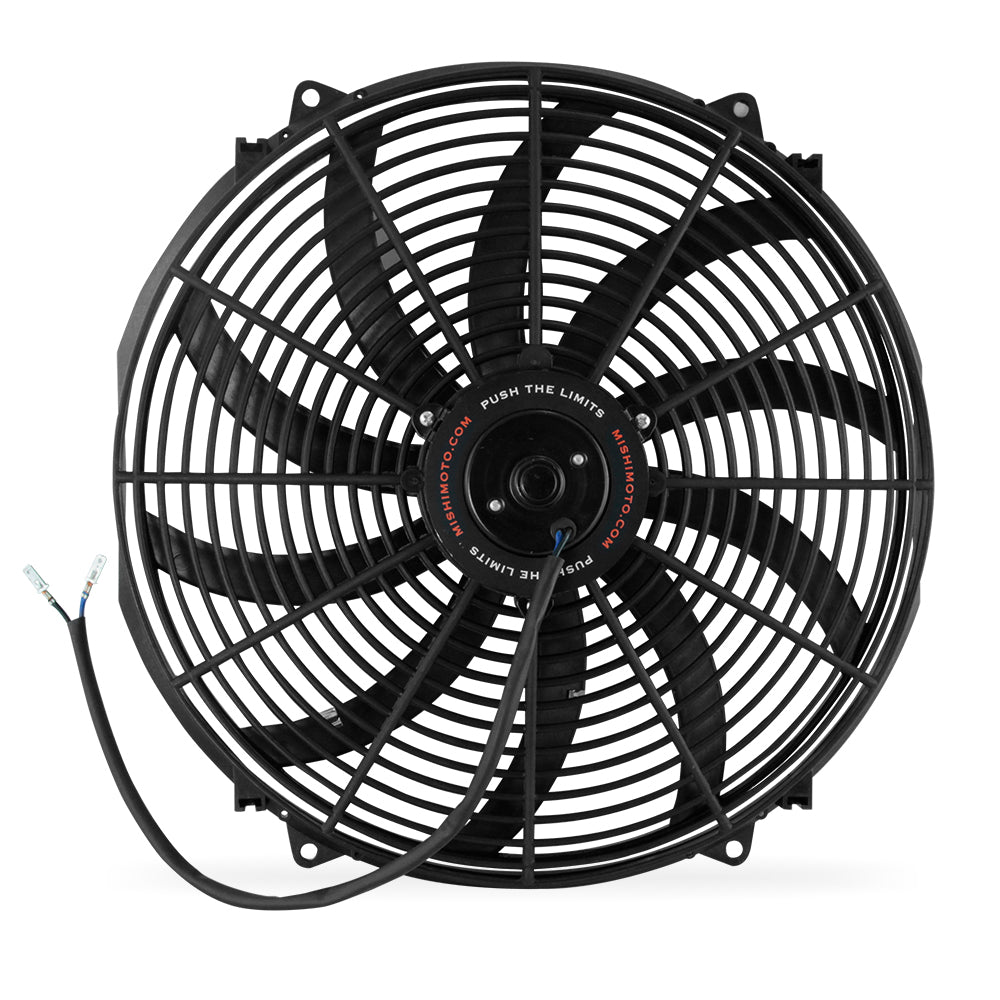

Mishimoto MMFAN-16C Electric Fan Slim Curved Blade Black 16 In
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$117.95
-0%
Regular price
$117.95
Regular price
$117.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
This curved blade fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)
- High-flow fan provides 1850 cfm of airflow
- Universal fitment
- Compact design with a diameter of 16-in and an overall thickness of only 2.87-in provides increased engine bay space
Attributes:
- Brand Name: Mishimoto
- GTIN: 00811580039072
- Amperage Rating: 34
- Blade Color: Black
- Blade Included: Yes
- Blade Material: Plastic
- Blade Quantity: 10
- Blade Type: Curved
- Control Module Included: No
- Electrical Or Mechanical: Electrical
- Fan Clutch Mounted: No
- Grade Type: Performance
- Hub Depth: 3.2
- Install Difficulty: 3
- Maximum CFM: 1860
- Maximum RPM: 1800
- Motor Included: Yes
- Mounting Bracket Included: Yes
- Mounting Hardware Included: No
- Outside Diameter: 16
- Reversible: Yes
- SellingPoint01: High-flow fan provides 1850 cfm of airflow
- SellingPoint02: Universal fitment
- SellingPoint03: Compact design with a diameter of 16-in and an overall thickness of only 2.87-in provides increased engine bay space
- SellingPoint04: Easily reversible for use as a pusher or puller fan
- SellingPoint05: Mishimoto Lifetime Warranty
- SellingPoint06: N/A
- SellingPoint07: N/A
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- Shroud Included: Yes
- Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
- TechSpec Airflow Direction: Pull
- TechSpec Amp Draw (Running): N/A
- TechSpec Amp Draw (Start): 34
- TechSpec Applications: N/A
- TechSpec Blade Style: Curved
- TechSpec CFM: 1860
- TechSpec Depth (in): 3.2
- TechSpec Diameter (in): 16
- TechSpec Includes: (1) Mishimoto Fan--(4) Mounting Tabs--Mishimoto Lifetime Warranty
- TechSpec Installation Notes: Mishimoto recommends the use of a fan shroud for optimal operation.----Reversing polarity and physically flipping the fan blades can enable pusher functionality, but the original design optimization for puller configuration may limit performance.
- TechSpec RPM: 1800
- TechSpec Reversible?: True
- TechSpec Wiring Connection: Female Snap-Plug Terminal
- Voltage: 12
- Wiring Harness Included: No
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 19.5 x 20.1 x 4.6 inches
- Weight: 5.7 POUNDS
