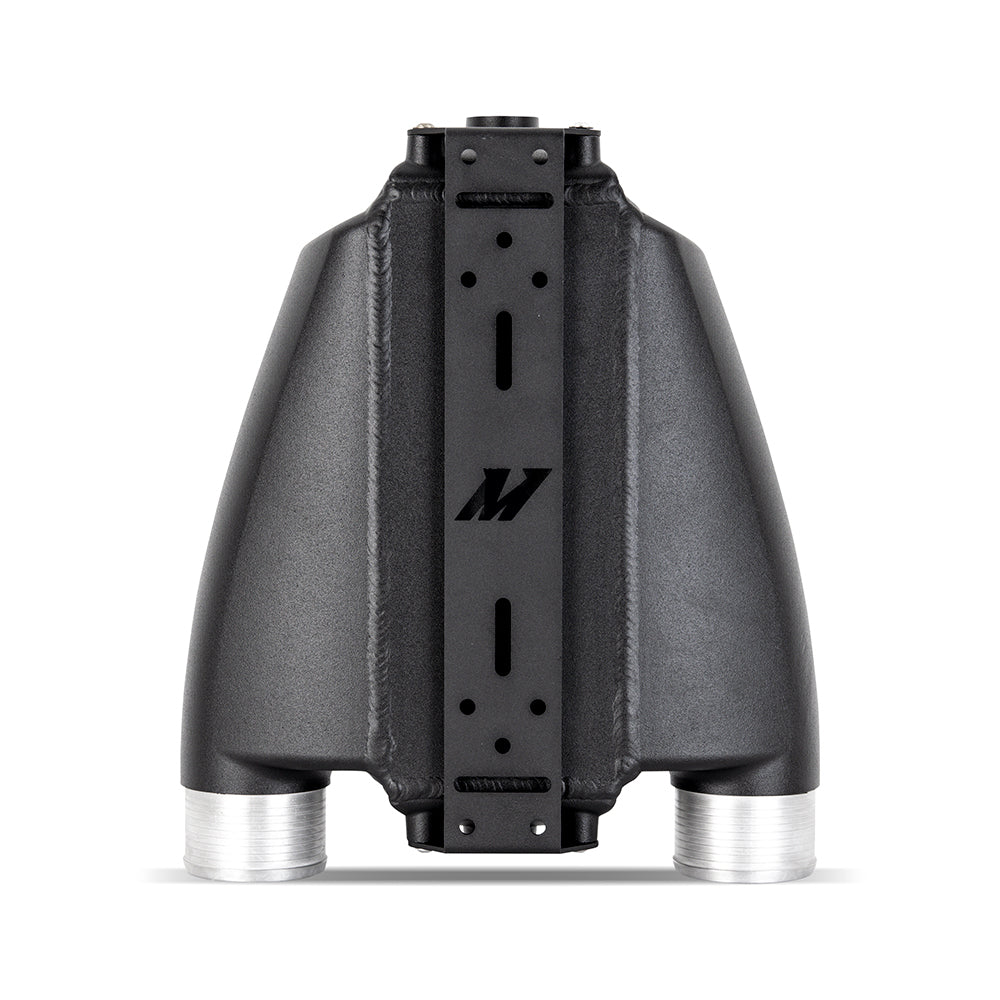

Mishimoto MMINT-A2W-SP-2 Air-to-Water Intercooler Single-Pass Coolant 1000HP-Same Side Inlet/Outlet

Keeping air intake temperatures low is the key to decreasing the impact of heat soak, reducing detonation, and producing consistent power output. As a result, Intercooler systems have evolved substantially over the last decade, bringing liquid-to-air intercoolers into popularity. To help bring the compact efficiency of air-to-water intercooling to your project, Mishimoto has developed a full lineup of high-performance air-to-water intercoolers. Our air-to-water intercoolers are available in single or dual-pass coolant flow configurations, each with multiple bar-and-plate core sizes and your choice of same-side or opposite-site outlets. These intercoolers support builds producing up to 1500 horsepower. When it comes to our intercoolers construction, robust is an understatement. Each intercooler features 5mm-thick cast-aluminum end tanks that are custom engineered for superb airflow, reducing overall pressure drop through the cooler. These tanks are professionally TIG-welded to our core, resulting in a pressure tolerance of up to 100 psi of boost. In addition, our intercooler design features unique CNC-machined ribbed inlet and outlet coupler connections, ensuring maximum grip between couplers and intercooler piping. Mounting and plumbing your air-to-water system can seem like a daunting task, but Mishimoto has made both tasks easy by incorporating -16ORB coolant ports into the core and providing a sturdy 1/8" thick steel universal mounting bracket. Adapting to your specific coolant line choice is easy with the Mishimoto -16ORB Aluminum Fitting selection . Mishimoto air-to-water intercoolers are finished with a sleek, durable, micro wrinkle black powder coat. As with all our products, these Mishimoto intercoolers include our signature Mishimoto Lifetime Warranty.

• Highly efficient air-to-water design delivers effective cooling in a compact package
• Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
• Cast-aluminum end tanks are custom engineered to yield superb airflow and durability

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197701546
• Core Color: 1000HP - Same Side Inlet/Outlet
• Core Height: 4.92
• Core Length: 12
• Core Material: Aluminum
• Core Thickness: 4.92
• Grade Type: Performance
• Height: 10.75
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 3
• Inlet Tank Material: Aluminum
• Install Difficulty: N/A
• Length: 13.61
• OptionLabel: 1000HP - Same Side Inlet/Outlet
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 3
• SellingPoint01: Highly efficient air-to-water design delivers effective cooling in a compact package
• SellingPoint02: Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
• SellingPoint03: Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
• SellingPoint04: Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow
• SellingPoint05: All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure
• SellingPoint06: CNC-machined ribbed airflow inlet/outlet produces secure coupler connections
• SellingPoint07: Sleek, subtle, and durable micro-wrinkle black powder coat finish
• SellingPoint08: -12ORB coolant ports provide leak-free line connections

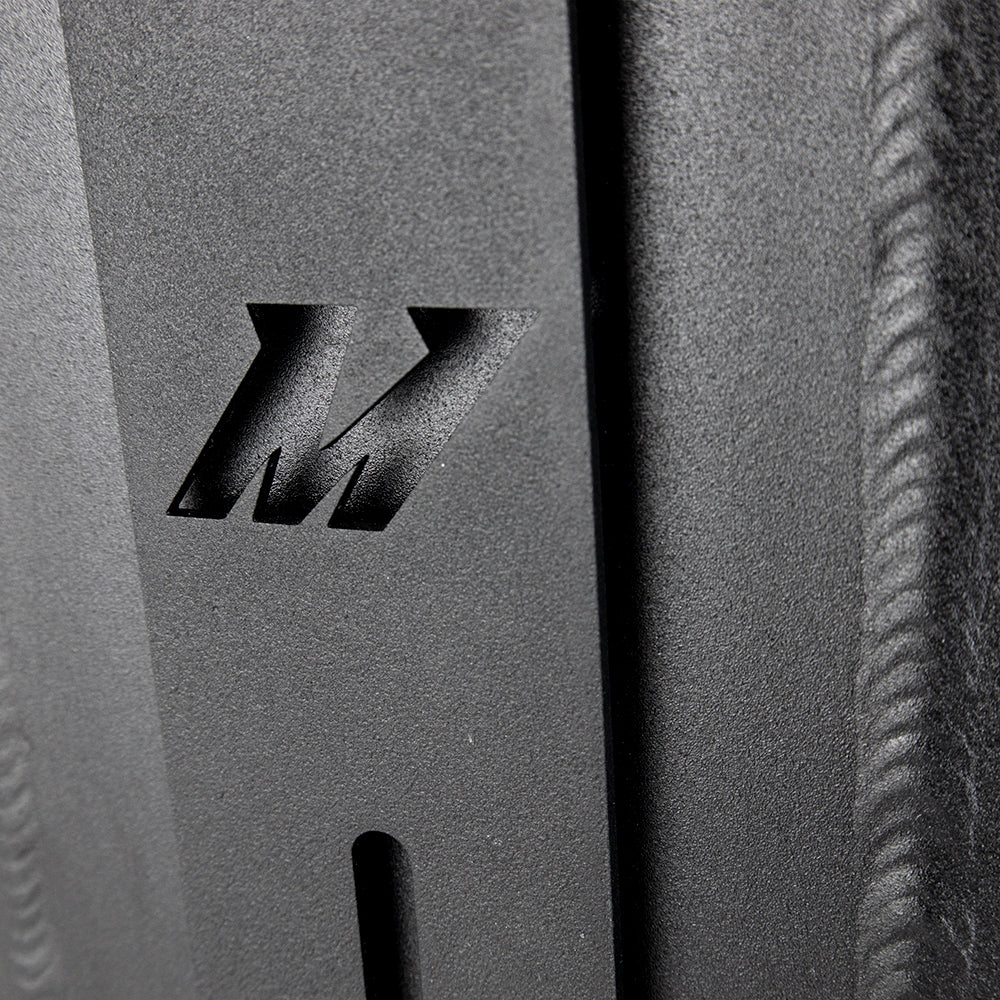

• SellingPoint09: Includes robust 1/8-in thick steel mounting bracket and hardware
• SellingPoint10: Abundant coolant line options with Mishimoto’s -12ORB Aluminum Fittings
• SellingPoint11: Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup
• SellingPoint12: Multiple core sizes to choose from to fit the needs of your project
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 4.92
• TechSpec Core Length (in): 12
• TechSpec Core Thickness (in): 4.92
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: N/A
• TechSpec Includes: N/A
• TechSpec Inlet (in): 3
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 100
• TechSpec Maximum Recommended Horsepower: 1000
• TechSpec Note: N/A
• TechSpec Outlet (in): 3
• TechSpec Overall Height (in): 10.75
• TechSpec Overall Length (in): 13.61
• TechSpec Overall Width (in): 4.92
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Type: Bar-and-Plate
• Universal Or Specific Fit: Specific
• Width: 4.92

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20 x 10.75 x 17.75 inches
• Weight: 30 POUNDS
