Mishimoto MMINT-CTR-17KSLWBK Intercooler Kit Silver/Black Fits Honda Civic Type R 2017-2021

It's no easy feat to be dubbed as one of the fastest front-wheel-drive productions cars in the world. Honda put all of their engineering prowess behind this achievement, but since the 2017-2021 Honda Civic Type R finds itself in the gray area of track fiend and commuter car, some sacrifices had to be made. One of those sacrifices comes in the form of the underperforming intercooling system that the FK8 is born with. Under intense driving conditions, or just being caught in a sweltering summer day, the stock tube-and-fin intercooler soaks with heat, quelling the performance of your CTR. We here at Mishimoto aim to put that power back into your hot-Honda by keeping it cool with the Mishimoto 2017-2021 Honda Civic Type R Performance Intercooler Kit. We started by increasing the overall size of the core two more than double that of the stock dimensions. The 4.7 inch thick core boasts a 169-percent increase in overall volume, and bumps the external fin surface area by 189-percent for optimal heat rejection properties. We didn't stop with the size increase either. To keep the charged air flowing properly through the larger core, we updated to a bar-and-plate core construction. The robust design offers not only improved flow characteristics, but also aides in transferring heat away from the charged air. The plastic end tanks are a thing of the past, and have been replaced with our sleek cast aluminum designs to more effectively direct airflow to and from the piping. With the Mishimoto Performance Intercooler Kit, the Intercooler isn't the only component that received an update, and we took the liberty of overhauling the entire intercooling system. Honda carried some of those sacrifices in the name of mass production over to the intercooler piping as well. The restrictive piping diameters limit the K20C1?s potential to turn up the boost with tunes, and the rubber sections are destined to deteriorate down the line. We updated these charged air channels with a 2.5? mandrel-

• 4.7-in thick intercooler design optimized for maximum flow
• Max power gains of up to 10 whp and 10 wtq
• Drops outlet air temperatures by 50F on stock tuning

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580033384
• CARB EO Number: D-759-12
• Cold Side Pipe Inside Diameter: 2.5
• Core Color: Silver
• Core Construction: Bar-and-Plate
• Core Height: 0
• Core Length: 0
• Core Material: Aluminum
• Core Thickness: 0
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.5
• Inlet Diameter: 2.5
• Install Difficulty: 3
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 0
• Maximum Horsepower: 0
• OptionLabel: Silver Intercooler, Black Pipes
• Outlet Diameter: 2.5
• Pipe Color: Black
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct fit for the 2017-2021 Honda Civic Type R
• SellingPoint02: 4.7-in thick intercooler design optimized for maximum flow
• SellingPoint03: Max power gains of up to 10 whp and 10 wtq
• SellingPoint04: Drops outlet air temperatures by 50F on stock tuning
• SellingPoint05: Optimal core design for maximum cooling efficiency with minimal pressure drop
• SellingPoint06: Intercooler volume increased by 169-percent and external fin surface area by 189-percent
• SellingPoint07: 2.5-in piping diameter improves flow characteristics
• SellingPoint08: Mandrel-bent aluminum cold-side piping for increased durability
• SellingPoint09: Available in silver or black intercooler with the option of wrinkle black or wrinkle Rallye Red piping
• SellingPoint10: Patent No. US D931,336
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2017-2021 Honda Civic Type R
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: FK8
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: K20C1

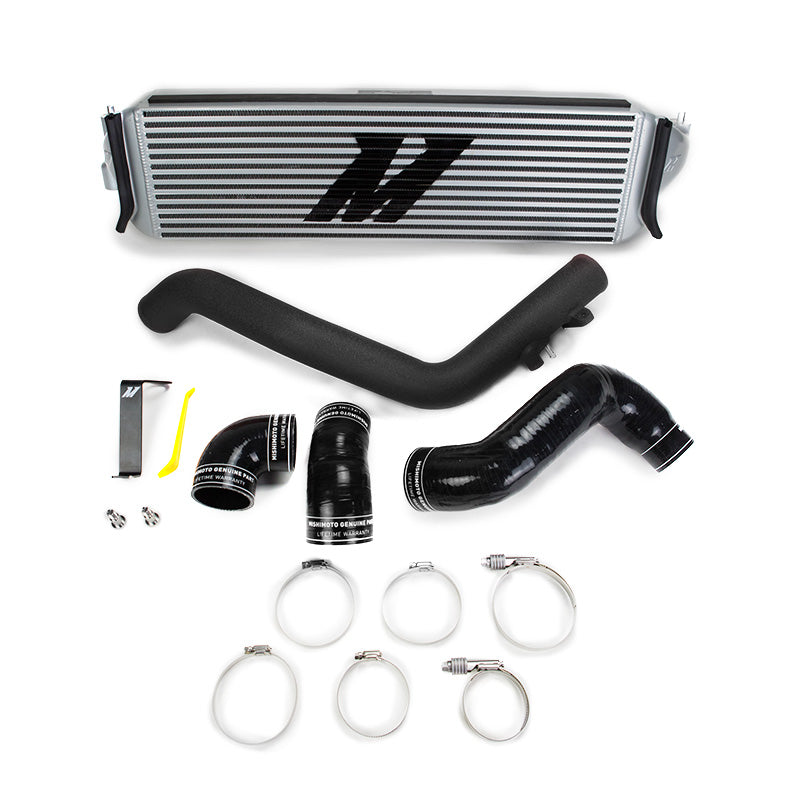

• TechSpec Includes: (1) Intercooler--(1) Mandrel-Bent Aluminum Cold-Side Pipe--(1) Silicone Hot-Side Pipe--(2) Silicone Couplers--(6) High-Torque Worm Gear Clamps--(1) CARB EO Sticker--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.5
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): 2.5
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 29
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 21.57 x 21.57 x 21.57 inches
• Weight: 44.12 POUNDS
