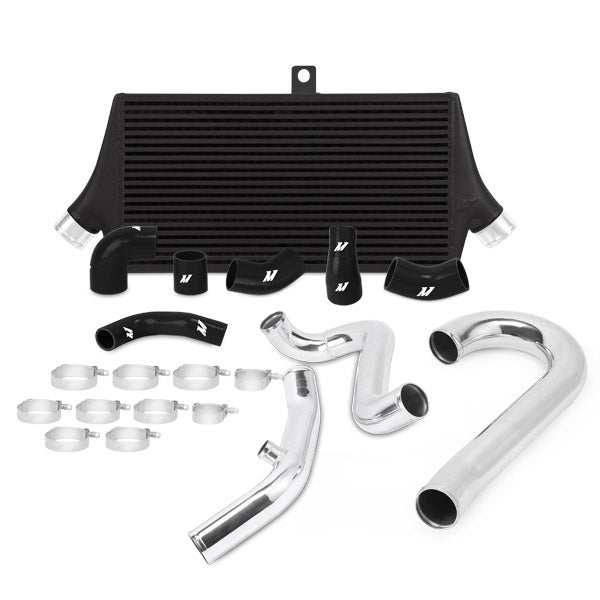

Mishimoto MMINT-EVO-01KBK Intercooler Kit Black/Silver Race Fits Mitsubishi Lancer Evo 7/8/9 2001-2007

Maximize the effect of your intercooler setup with the Mishimoto Mitsubishi Lancer Evolution 7/8/9 Intercooler Kit! This full kit includes the Mishimoto race intercooler as well as the Mishimoto upper and lower intercooler pipes and couplers. This kit provides a direct-fit unit and completely replaces the restrictive and inefficient factory setup. The Mishimoto intercooler utilizes a large, 3.5-inch thick bar-and-plate core that has been designed with a strategic core composition to provide optimal reductions in intake temperatures and minimal pressure loss. This kit will support vehicles from stock to 600 whp! Our 350 whp test vehicle showed an 8 whp / 10 wtq increase in power compared to the stock intercooler and the Mishimoto intercooler was able to reduce temperatures by 28 degrees Fahrenheit. Not only was this intercooler, kit designed with power and efficiency in mind, but our engineers also crafted smooth cast end tanks to promote proper air dispersion through the core, improved airflow, and exceptional durability. Low air intake temperatures are vital for maximum power output, tuning, and performance. Whether you are taking your Evo to the local rallycross or competing in a time-attack, lower temperatures will be beneficial. Mishimoto intercooler pipes are crafted from lightweight, mandrel-bent aluminum and eliminate restrictions in the factory piping, which allows for improved airflow and quicker turbocharger spool. The included silicone couplers provide improved heat and pressure tolerance and can handle all the boost you can throw at them. This kit is available with a silver or stealth black powder-coated intercooler finish for enhanced durability and protection against road debris. As with all our products, the Mishimoto Evolution Race Intercooler includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Direct-fit kit for the Mitsubishi Lancer Evolution 7/8/9
• Large, 3.5-in thick bar-and-plate core with strategic core composition for optimal cooling and minimal pressure loss
• Provided 8 whp / 10 wtq and reduced intake temperatures by 28 F (16 C) compared to the stock cooler on a vehicle making 350 whp

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354011753
• CARB EO Number: D-759
• Cold Side Pipe Inside Diameter: 2.5
• Core Color: Black
• Core Construction: Bar-and-Plate
• Core Height: 11.65
• Core Length: 22
• Core Material: Aluminum
• Core Thickness: 0
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.375
• Inlet Diameter: 2.375
• Install Difficulty: 3
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 0
• Maximum Horsepower: 0
• OptionLabel: Black
• Outlet Diameter: 2.5
• Pipe Color: Black
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct-fit kit for the Mitsubishi Lancer Evolution 7/8/9
• SellingPoint02: Large, 3.5-in thick bar-and-plate core with strategic core composition for optimal cooling and minimal pressure loss
• SellingPoint03: Provided 8 whp / 10 wtq and reduced intake temperatures by 28 F (16 C) compared to the stock cooler on a vehicle making 350 whp
• SellingPoint04: Provides efficient intake temperature reduction for vehicles from stock to 600 whp
• SellingPoint05: All-aluminum cast end tanks provide improved airflow, superior air dispersion through the core, and exceptional strength
• SellingPoint06: Lightweight, mandrel-bent, polished aluminum pipes eliminate restrictive bends in the stock piping for improved airflow
• SellingPoint07: Bead-rolled pipe ends prevent boost leaks and coupler disconnection
• SellingPoint08: Silicone couplers provide increased heat and pressure tolerance
• SellingPoint09: Available with a Sleek Silver or Stealth Black powder-coated finish
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2001-2007 Lancer Evolution 7/8/9 GSR--2005-2007 Lancer Evolution 8/9 MR
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: CT9A
• TechSpec Core Height (in): 11.65
• TechSpec Core Length (in): 22
• TechSpec Core Thickness (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: 4G63
• TechSpec Includes: (1) Mishimoto Intercooler--(2) Upper Intercooler Pipes--(1) Lower Intercooler Pipe--(3) Upper Pipe Couplers--(2) Lower Pipe Couplers--(1) 3-in T-bolt Clamp--(8) 2.75-in T-bolt Clamps--(1) 2-in T-bolt Clamp--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.375
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: This intercooler can be used with stock or aftermarket intercooler pipes. This intercooler is not universal and has application specific mounting points. The upper intercooler pipes are not designed to work with the stock airbox. An aftermarket open element air filter is required to use with these upper intercooler pipes.
• TechSpec Outlet (in): 2.5
• TechSpec Overall Height (in): 14.5
• TechSpec Overall Length (in): 31.5
• TechSpec Overall Width (in): 5.75
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 27
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 19.96 x 19.96 x 19.96 inches
• Weight: 41.18 POUNDS
