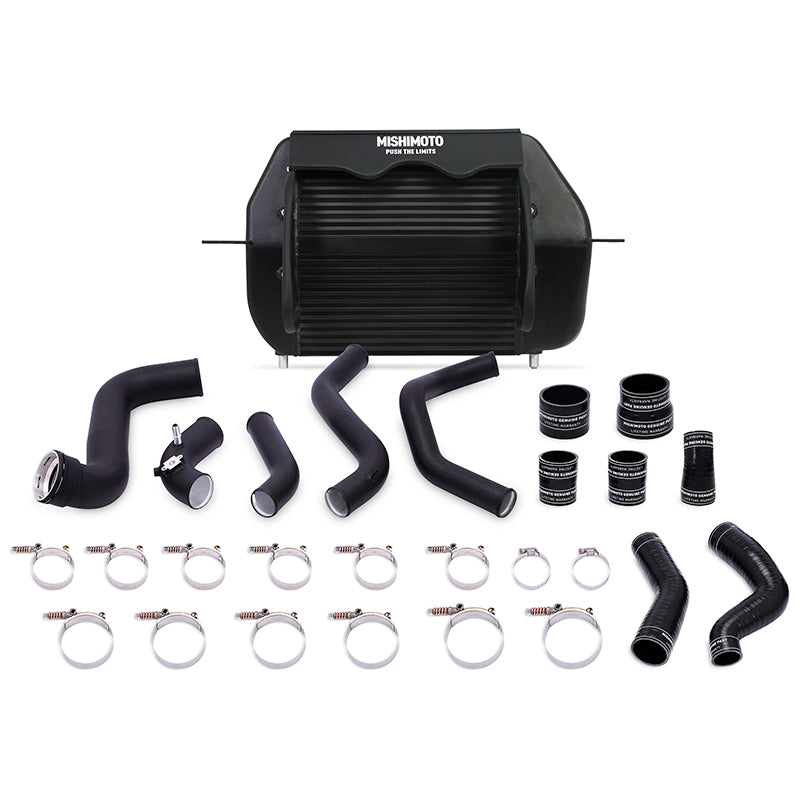

Mishimoto MMINT-F150-11KBBK Intercooler Kit Black/Black Fits Ford F-150 EcoBoost 2011-2014

Cool down those charge air temperatures with the Mishimoto direct-fit performance intercooler and pipe kit for the 2011-2014 Ford F-150 EcoBoost. The small, factory intercooler sits in the bottom part of a spacious and unconventionally shaped cavity behind the front bumper, which means There's a lot of wasted space there that could be used for cooling improvements. That?s why the Mishimoto intercooler has been cleverly engineered with a unique angled design to take full advantage of the space for maximum performance. This intercooler boasts an 88-percent increase in core size, 66-percent increase in internal core volume, and 40-percent increase in external fin surface area. The Mishimoto intercooler lowers intake temperatures by 50?F (28?C) compared to the factory part. But of course, no intercooler is complete without a set of pipes to complement it. This kit also includes Mishimoto 2011?2014 F?150 EcoBoost Intercooler Pipes which are an ideal upgrade in reliability and performance. Accompanied by silicone couplers with DuraCore? technology, Mishimoto's F?150 EcoBoost intercooler piping is engineered to eliminate restrictive bends while improving durability and airflow. Compared to normal silicone, DuraCore? provides superior resistance to heat, pressure, fuel, and oil. These pipes alone have been dyno proven to provide your truck with up to 15 more horsepower and 21 Ft/lbs more torque.Of course, this kit is backed by our Mishimoto Lifetime Warranty, so you never need to worry about buying another intercooler and pipe kit again.

• 50F (28C) reduction in AIT
• 88-percent increase in core size
• 66-percent increase in internal core volume and 40-percent increase in external fin surface area

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354038095
• CARB EO Number: D-759-6
• Cold Side Pipe Inside Diameter: 3
• Core Color: Black
• Core Construction: Bar-and-Plate
• Core Height: 0
• Core Length: 0
• Core Material: Aluminum
• Core Thickness: 0
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.5
• Inlet Diameter: 2.5
• Install Difficulty: 4
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 50
• Maximum Horsepower: 0
• OptionLabel: Black Intercooler, Black Pipes
• Outlet Diameter: 3
• Pipe Color: Black
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct fit for the 2011-2014 Ford F-150 EcoBoost
• SellingPoint02: 50F (28C) reduction in AIT
• SellingPoint03: 88-percent increase in core size
• SellingPoint04: 66-percent increase in internal core volume and 40-percent increase in external fin surface area
• SellingPoint05: Includes air diversion plates to direct air through the intercooler core for maximum efficiency
• SellingPoint06: Features CNC Bypass Plug for 2011-2012 models
• SellingPoint07: 1/4-in NPT drain plug incorporated into lower mount
• SellingPoint08: 2.5-in aluminum hot-side intercooler pipes replace stock plastic pipes
• SellingPoint09: 3-3.5-in aluminum cold-side intercooler pipes replace stock plastic pipes
• SellingPoint10: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
• SellingPoint11: 10-percent greater flow than stock
• SellingPoint12: 41-percent and 34-percent increase in internal volume for hot and cold-side pipes, respectively
• SellingPoint13: CNC quick-disconnect for maximum durability, perfect fitment, and ease of installation on Mishimoto intercooler
• SellingPoint14: Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
• SellingPoint15: Mishimoto Lifetime Warranty
• TechSpec Applications: 2011-2014 Ford F-150 EcoBoost
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: P415
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: 3.5L V6 EcoBoost
• TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(3) Aluminum Intercooler Pipes--(7) Silicone Boots w/ DuraCore Technology--(2) High-Torque Worm Gear Clamps--(12) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.5
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): 3
• TechSpec Overall Height (in): 19
• TechSpec Overall Length (in): 27.6
• TechSpec Overall Width (in): 6.75
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: China
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22.4 x 22.4 x 22.4 inches
• Weight: 73.46 POUNDS
