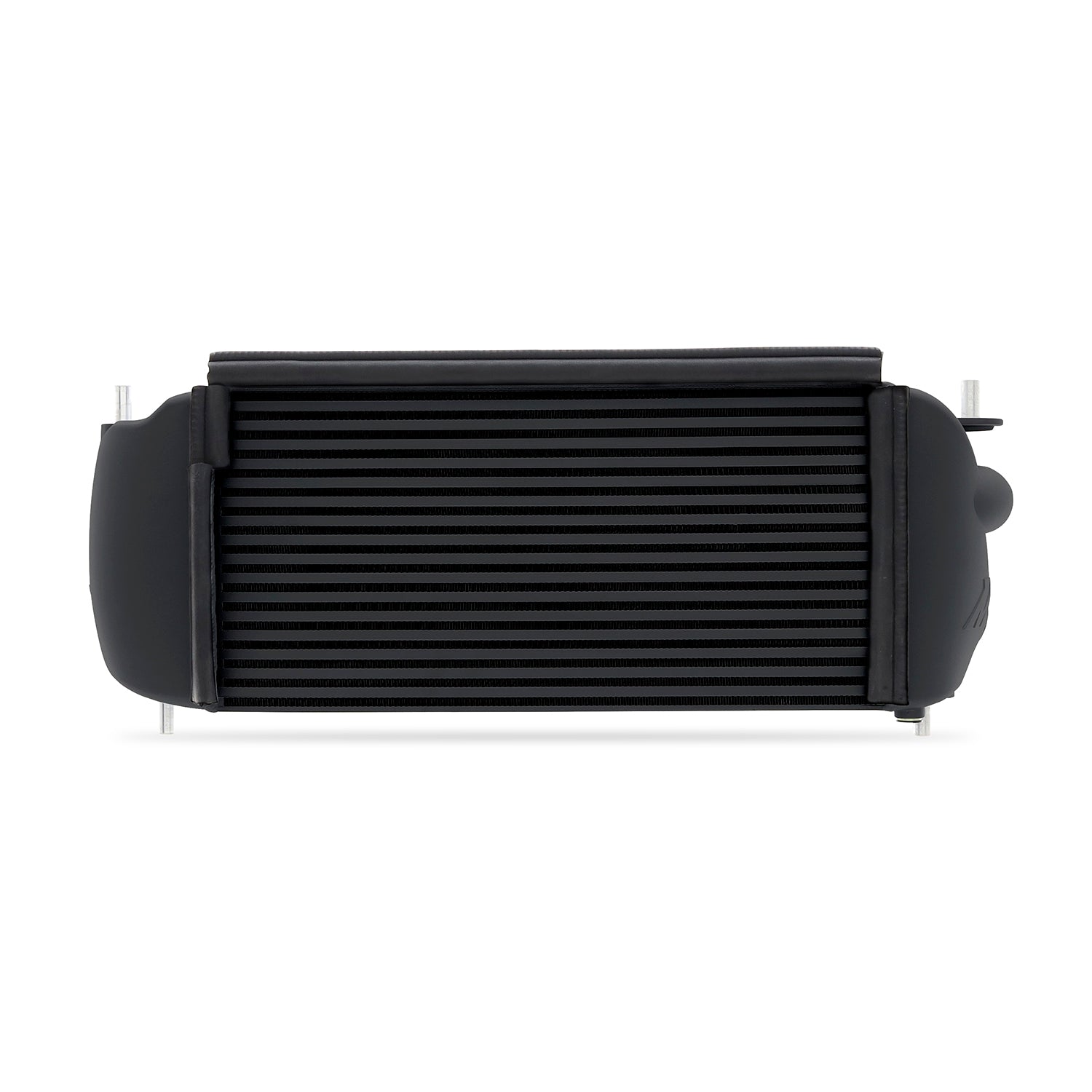

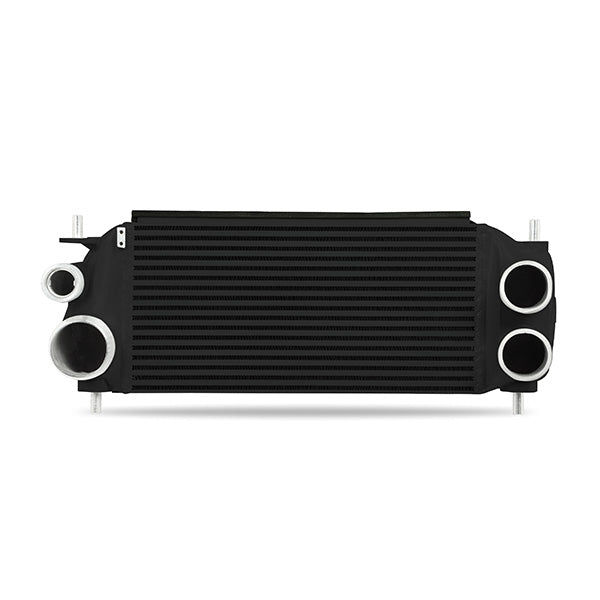

Mishimoto MMINT-F150-15BK Intercooler Black Fits Ford F-150 EcoBoost 2015+

Keep those air intake temps down! With Mishimoto's Performance Intercooler for the 2015+ Ford F-150 EcoBoost, your engine will reach a better level of cooling from the help of both an increase in core volume by 77-percent over stock and external fin surface area by 163-percent. We put our core through some grueling tests to see how our design can alleviate the effects of heat soak. With temperature drops averaging 10 degrees under the stock numbers, your F-150 will take in cooler air, providing better performance and increased tuning potential.

• 10F (5.5C) reduction in intake air temp
• 77-percent increase in internal core volume
• 163-percent increase in external fin surface area

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354032581
• CARB EO Number: D-759-6
• Core Color: Black
• Core Height: 9.4
• Core Length: 19.6
• Core Material: Aluminum
• Core Thickness: 4.72
• Grade Type: Performance
• Height: 9.5
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 2.5
• Inlet Tank Material: Aluminum
• Install Difficulty: 3
• Length: 29
• OptionLabel: Stealth Black
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 3
• SellingPoint01: Direct fit for the 2015+ Ford F-150 EcoBoost
• SellingPoint02: 10F (5.5C) reduction in intake air temp
• SellingPoint03: 77-percent increase in internal core volume
• SellingPoint04: 163-percent increase in external fin surface area
• SellingPoint05: CNC-machined inlets and outlets are ridged for greater holding power
• SellingPoint06: All-aluminum, TIG-welded construction
• SellingPoint07: Internal fin design for maximum heat transfer with minimal pressure drop
• SellingPoint08: Fits with stock and Mishimoto 2.7L and 3.5L intercooler pipe kits
• SellingPoint09: Fits with stock intercooler fans without modification
• SellingPoint10: Available in Sleek Silver or Stealth Black
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2015+ Ford F-150 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost--2018+ Ford Expedition 3.5L V6 EcoBoost--2018+ Lincoln Navigator 3.5L V6 EcoBoost
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 9.4
• TechSpec Core Length (in): 19.6
• TechSpec Core Thickness (in): 4.72
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: 2.7L V6 EcoBoost--3.5L V6 EcoBoost
• TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.5
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): 3
• TechSpec Overall Height (in): 9.5
• TechSpec Overall Length (in): 29
• TechSpec Overall Width (in): 7
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Type: Bar-and-Plate
• Universal Or Specific Fit: Specific
• Width: 7

Extended Information:

• Country of Origin: China
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 31.5 x 11.5 x 14.8 inches
• Weight: 34.45 POUNDS
