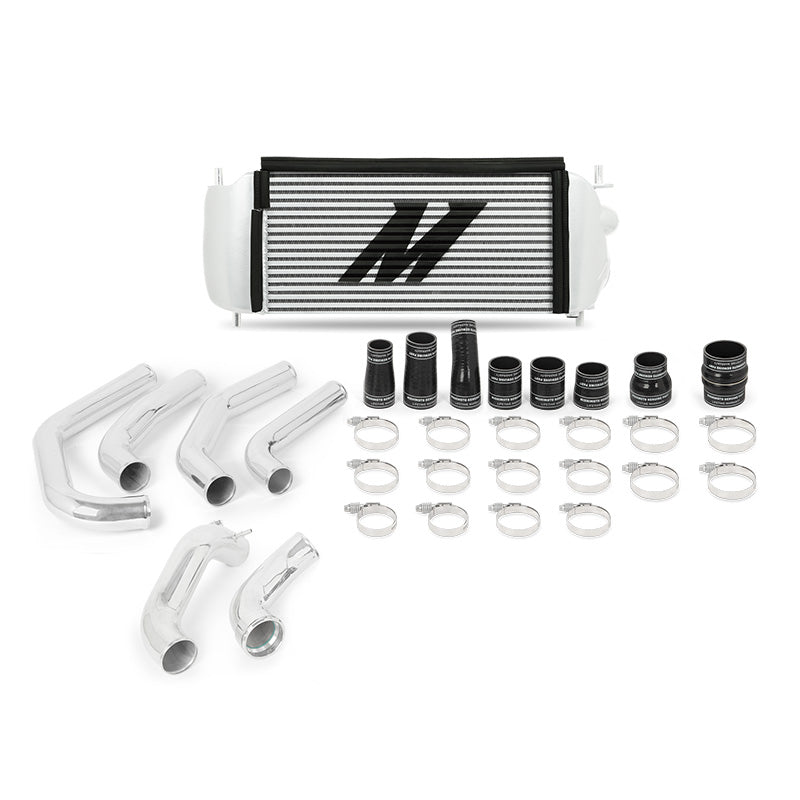

Mishimoto MMINT-F27T-15KPSL Intercooler Kit Silver/Polished Fits Ford F-150 2.7L EcoBoost 2015-2017

Mishimoto has developed a direct-fit 2015-2017 2.7L F-150 EcoBoost Intercooler and Pipe kit that allows owners to maximize the performance potential of their F-150. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore technology. The 38-percent larger volume of our pipes allows your 2015-2017 2.7L F-150 EcoBoost to breathe free and make the most of the its two turbochargers. DuraCore boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 2.7L EcoBoost engine is capable of. Our intercooler increases core volume by 77-percent over stock and external fin surface area by 163-percent. With cast end tanks and bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock. This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2015-2017 2.7LF-150 EcoBoost Intercooler and Pipe kit is backed by our Lifetime Warranty.

• 38-percent increase in total internal volume over the stock pipes
• Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
• Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580033056
• CARB EO Number: D-759-6
• Cold Side Pipe Inside Diameter: 3
• Core Color: Silver
• Core Construction: Bar-and-Plate
• Core Height: 9.4
• Core Length: 19.6
• Core Material: Aluminum
• Core Thickness: 4.7
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.5
• Inlet Diameter: 2.5
• Install Difficulty: 4
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 50
• Maximum Horsepower: 0
• OptionLabel: Silver Intercooler, Polished Pipes
• Outlet Diameter: 3
• Pipe Color: Polished
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct fit for 2015-2017 Ford F-150 2.7L EcoBoost
• SellingPoint02: 38-percent increase in total internal volume over the stock pipes
• SellingPoint03: Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
• SellingPoint04: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
• SellingPoint05: Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
• SellingPoint06: 10F (5.5C) reduction in intake air temp
• SellingPoint07: 77-percent increase in internal Intercooler core volume
• SellingPoint08: 163-percent increase in external fin surface area
• SellingPoint09: All-aluminum, TIG-welded construction
• SellingPoint10: Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2015-2017 Ford F-150 2.7L V6 EcoBoost
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: P552
• TechSpec Core Height (in): 9.4
• TechSpec Core Length (in): 19.6
• TechSpec Core Thickness (in): 4.7
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: 2.7L V6 EcoBoost
• TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(4) Aluminum Intercooler Pipes--(8) Silicone Boots w/ DuraCore Technology--(2) High-Torque Worm Gear Clamps--(14) Constant-Tension T-Bolt Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.5
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): 3
• TechSpec Overall Height (in): 9.5
• TechSpec Overall Length (in): 29
• TechSpec Overall Width (in): 7
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 19.43 x 19.43 x 19.43 inches
• Weight: 37.77 POUNDS
