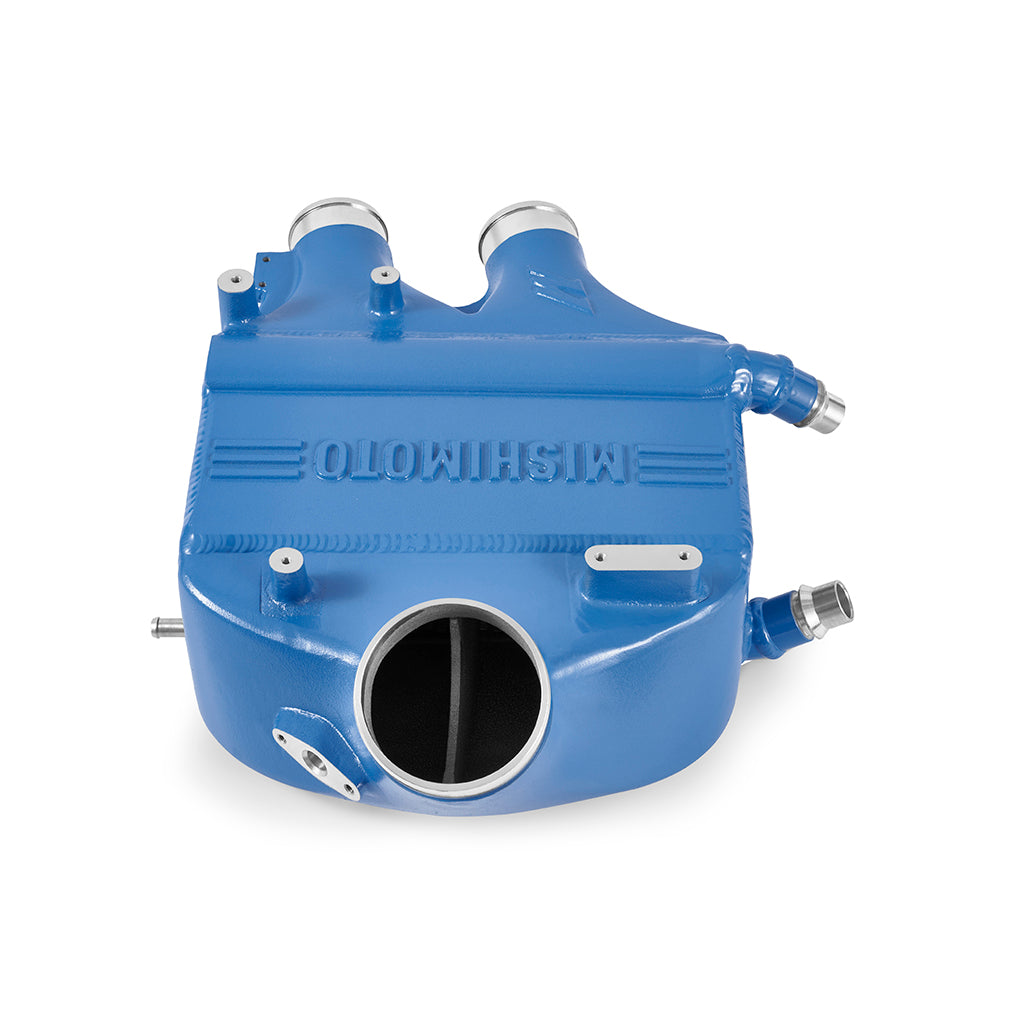

Mishimoto MMINT-F80-15CYMB Performance Air-to-Water Intercooler Yas Marina Blue Fits BMW F8X M3/M4 15-20

BMW's M lineup is the benchmark when it comes to performance luxury vehicles. The S55 that powers the 2015-2020 BMW F8X M3, M4 and M2 Competition is dripping with technology, which includes an air-to-water. Where BMW's intercooler design was enough to help bring this generation of M's to their peak, we here at Mishimoto found some weaknesses to address. We started with the end tanks. The Mishimoto intercooler features full, cast aluminum end tanks, TIG-welded to our bar-and-plate core for maximum durability as you increase the boost in your Bimmer. Our end tanks also include internal air diverters on both the inlet and outlet to ensure an even flow of charged air through the core. When it comes to the core, bigger is better, and we were able to expand the size of our core in all dimensions, resulting in a 29% increase in core volume while abstaining from any modifications when it comes to the installation. Our new core also features a unique single-pass internal fin layout for the coolant passage for optimal heat transfer from the charged air to the coolant. With our improvements combined, we saw the Mishimoto 2015-2020 BMW F8X M3 and M4 Performance Intercooler increase flow through the core by 16% and recorded a 12F drop in intake air temperatures when tested with the Mishimoto Performance Heat Exchanger. We also recorded an average increase of 11 whp and 8 wtq during our testing with peak gains of up to 31 whp and 10 wtq. To add even more style to your already impeccably designed F80, we've painted these charge pipes in your choice of 12 OEM colors. This high-quality, automotive-grade paint is durable enough for life under the hood and is matched to your exterior paint for an engine bay as sleek as the rest of your F80. Like all our products, the Mishimoto 2015-2020 BMW F8X M3, M4, and M2 Competition Performance Air-to-Water Intercooler is backed by the Mishimoto Lifetime Warranty for a lifetime of support for all your performance needs.

• Color matched to your choice of 12 OEM colors or classic black
• 29-percent increase in core volume
• 16-percent increase in flow

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197710128
• CARB EO Number: D-759-13
• Core Color: Yas Marina Blue
• Core Height: 0
• Core Length: 0
• Core Material: Aluminum
• Core Thickness: 3.7
• Grade Type: Performance
• Height: 0
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 2
• Inlet Tank Material: Aluminum
• Install Difficulty: 2
• Length: 0
• OptionLabel: Yas Marina Blue
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 3
• SellingPoint01: Direct fit for the 2015-2020 BMW F8X M3, M4, and M2 Competition
• SellingPoint02: Color matched to your choice of 12 OEM colors or classic black
• SellingPoint03: 29-percent increase in core volume
• SellingPoint04: 16-percent increase in flow
• SellingPoint05: Average power gains of 11 whp and 8 wtq when combined with Mishimoto Heat Exchanger
• SellingPoint06: 12F drop in intake air temperatures with Mishimoto Heat Exchanger
• SellingPoint07: Unique single-pass core design for improved cooling capacity
• SellingPoint08: Cast aluminum end tanks with incorporated diverters for maximum flow
• SellingPoint09: Bar-and-plate core for maximum cooling efficiency
• SellingPoint10: Compatible with stock and Mishimoto charge pipes
• SellingPoint11: Patent No. US D957,464 S
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2015-2018 BMW M3 Sedan 2015-2020 BMW M4 Coupe 2015-2020 BMW M4 Convertible 2016 BMW M4 GTS Coupe 2019-2020 BMW M4 CS Coupe 2019-2020 BMW M2 Competition
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: F80--F82--F83--F87
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): 3.7
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: S55
• TechSpec Includes: (1) Performance Intercooler--(1) CARB EO Sticker--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Note: Color matched products may vary slightly from your vehicle color as paint can be affected by external factors such as heat, sun fade, and age.
• TechSpec Outlet (in): 3
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Type: Bar-and-Plate
• Universal Or Specific Fit: Specific
• Width: 0

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20.1 x 17.7 x 10.5 inches
• Weight: 21.59 POUNDS
