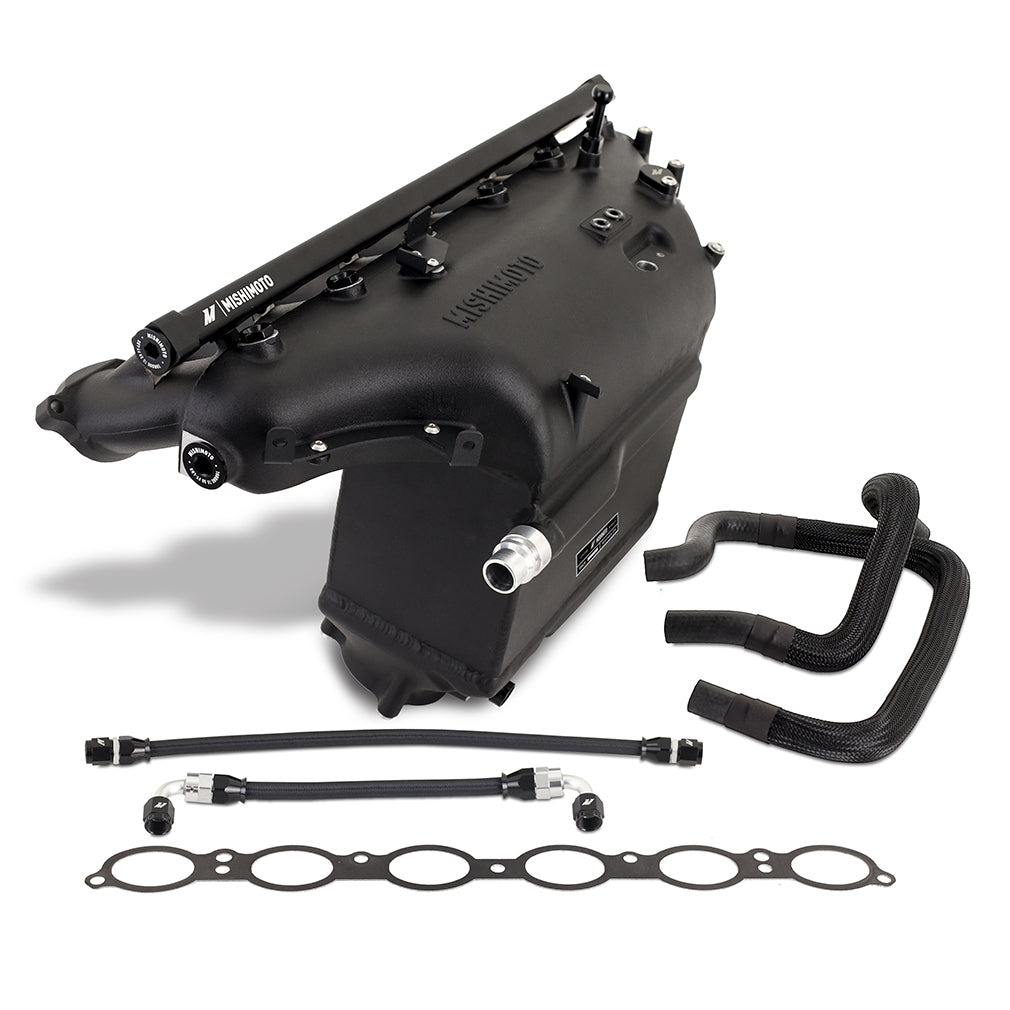

Mishimoto MMINT-G80-21BK Performance Charge Air/Manifold Black Fits BMW G8X M2/M3/M4 2021+

----Insane power levels require equally insane amounts of fuel, so we've added provisions for port fuel injection, including a billet fuel rail and anodized aluminum injector blanks to cap the injector ports when not in use. Our precision-machined injector ports feature optimized geometry for the perfect mixing of air and fuel, with no drilling required. The included PTFE -AN fuel lines and fittings are suitable for ethanol and tee into the stock fuel lines. ----If cooling, flow, and reliability weren't enough, we also designed our charge air cooler to fit like stock. This kit includes brackets to keep your wiring tidy, a mount to fit the stock engine cover, and custom EVAP lines for a seamless installation. A convenient cutout in the plenum allows easy access to the oil filter without affecting flow. Like all Mishimoto products, this performance charge air cooler for the 2021+ BMW G80 M3 is backed by our Mishimoto Lifetime Warranty for a lifetime of exceptional performance. If you want the ultimate upgrade to squeeze serious power from your S58 engine, this Mishimoto charge air cooler manifold is for you.

• Design features a robust bar-and-plate core TIG-welded to cast-aluminum end tanks, ensuring superior durability and longevity compared to plastic stock tanks
• Includes billet fuel rail, lines, and precision-drilled ports for port injection
• Includes PTFE -AN fuel lines that tee into stock fuel lines

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197718087
• Cold Side Pipe Inside Diameter: 0
• Core Color: Black
• Core Construction: Bar-and-Plate
• Core Height: 6.3
• Core Length: 9.8
• Core Material: Aluminum
• Core Thickness: 4.9
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 0
• Inlet Diameter: 0
• Install Difficulty: 4
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 60
• Maximum Horsepower: 1150
• OptionLabel: N/A
• Outlet Diameter: 0
• Pipe Color: Black
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Design features a robust bar-and-plate core TIG-welded to cast-aluminum end tanks, ensuring superior durability and longevity compared to plastic stock tanks
• SellingPoint02: Includes billet fuel rail, lines, and precision-drilled ports for port injection
• SellingPoint03: Includes PTFE -AN fuel lines that tee into stock fuel lines
• SellingPoint04: Robust bar-and-plate core for IATs as low as 11-degrees above ambient
• SellingPoint05: Improves flow to each cylinder by an average of 14-percent
• SellingPoint06: Improves cooling without increasing pressure drop over stock
• SellingPoint07: 33-percent core volume increase over stock with a 24-percent greater flow area
• SellingPoint08: CFD-designed lower plenum for even flow distribution and safe fueling
• SellingPoint09: Cast and CNC-machined runners accept stock O-rings or included fiber gasket
• SellingPoint10: Includes harness brackets, engine cover mount, and custom EVAP lines for seamless install
• SellingPoint11: Plenum cutout allows easy access to oil filter without impeding flow
• SellingPoint12: Includes two additional 1/8-NPT ports for manifold reference lines or sensors
• SellingPoint13: Also fits X3 M/X4 M models with included EVAP plug and fitting
• SellingPoint14: Patent Pending
• SellingPoint15: Mishimoto Lifetime Warranty
• TechSpec Applications: 2021+ BMW M3 I6 3.0L--2021+ BMW M4 I6 3.0L--2021+ BMW M3 Competition I6 3.0L--2021+ BMW M4 Competition I6 3.0L--2019+ BMW X3 M I6 3.0L--2019+ BMW X4 M I6 3.0L--2019+ BMW X3 M Competition I6 3.0L--2019+ BMW X4 M Competition I6 3.0L
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: G80--G82--G83--G87--F97--F98
• TechSpec Core Height (in): 6.3
• TechSpec Core Length (in): 9.8
• TechSpec Core Thickness (in): 4.9
• TechSpec Core Type: Bar-And-Plate
• TechSpec Engine Codes: S58B30
• TechSpec Includes: (1) Mishimoto Charge Air Cooler Manifold--(1) Intake Manifold Gasket--(1) Manifold/Intercooler Accessory Bracket Set--(6) -6 ORB Plugs--(6) -6 ORB to 1/8-in NPT Adapters--(6) -6 ORB to 1/16-in NPT Adapters--(1) Fuel Rail--(6) Fuel Injector Blanks--(2) -8 ORB Plugs--(1) -10 ORB Plug--(2) 1/8-in NPT Plugs--(2) EVAP System Hoses--(1) Port Injection Fuel Line Kit--(1) Hardware Kit--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 60
• TechSpec Maximum Recommended Horsepower: 1150
• TechSpec Note: Use of the included fuel rail is optional and for race-use only. The fuel rail has a tamper-proof sticker and may be removed only if the vehicle will no longer be used on the street or highway. Check local emissions regulations before removing.
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 13.1
• TechSpec Overall Length (in): 11.5
• TechSpec Overall Width (in): 21
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: China
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 14 x 16 inches
• Weight: 35.4 POUNDS

PDF:
