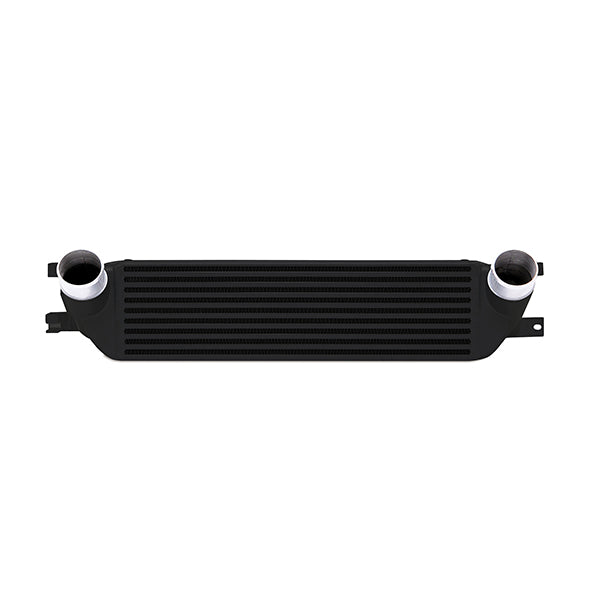

Mishimoto MMINT-MUS4-15KPBK Intercooler Kit Black/Polished Fits Ford Mustang EcoBoost 2015-2023

For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly within a few laps on the track or aggressive street driving and stock tube-and-fin intercoolers also heat soak very easily. Mishimoto has developed a highly efficient bar-and plate intercooler engineered specifically for the Mustang EcoBoost to keep your air intake temperatures consistently low, run after run. This kit also includes both hot-side and cold-side intercooler pipes, allowing you to upgrade the entire intercooler system at one time! This intercooler is a direct-fit unit and features a 58-percent increase in core size while requiring no modification to your Mustang. The Engineers at Mishimoto designed this intercooler to fit with the stock active grille shutters, as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. This cooler is constructed with cast end tanks that are CFD tested for maximum airflow and includes an in-tank air diverter, on the hot side, to provide optimal flow through the intercooler. The Mustang EcoBoost Performance Intercooler reduces intake temperatures by 35 F (19.45 C) with minimal pressure loss, has a 25-percent increase in internal core volume and 165-percent increase in external fin surface area, providing maximum cooling for your Mustang. This intercooler features precision TIG-welding and is available with a Sleek Silver or Stealth Black finish. This kit features 2.5inin hot-side and 2.75in cold-side mandrel-bent aluminum piping for smooth airflow, and four-layer silicone couplers with heat-resistant embedded fibers for improved tolerance against heat and pressure. This kit also includes high-quality stainless steel T-bolt clamps for consistent and reliable holding power. The precision CNC-machined BPV flange allows you to retain the stock BPV.

• 35 F (19.45 C) reduction in AIT
• 58-percent increase in core size
• 25-percent increase in internal core volume and 165-percent increase in external fin surface area

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354021509
• CARB EO Number: D-759-23
• Cold Side Pipe Inside Diameter: 2.56
• Core Color: Black
• Core Construction: Bar-and-Plate
• Core Height: 5.75
• Core Length: 21.06
• Core Material: Aluminum
• Core Thickness: 2.76
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.56
• Inlet Diameter: 2.56
• Install Difficulty: 3
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 0
• Maximum Horsepower: 550
• OptionLabel: Black Intercooler, Polished Pipes
• Outlet Diameter: 2.56
• Pipe Color: Polished
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct fit for the 2015-2023 Ford Mustang EcoBoost
• SellingPoint02: 35 F (19.45 C) reduction in AIT
• SellingPoint03: 58-percent increase in core size
• SellingPoint04: 25-percent increase in internal core volume and 165-percent increase in external fin surface area
• SellingPoint05: Replaces hot-side and cold-side intercooler pipes and couplers
• SellingPoint06: Cast end tanks and in-tank diverter provide optimal flow through intercooler
• SellingPoint07: Stock location prevents airflow blockage to radiator and AC condenser
• SellingPoint08: Installs in under 2 hours without having to remove front bumper cover
• SellingPoint09: Retains stock active grille shutters, maintaining ideal aerodynamics when cooling demands are lower
• SellingPoint10: Bar-and-plate construction with all-aluminum TIG-welded end tanks
• SellingPoint11: 2.5-in hot-side and 2.75-in cold-side mandrel-bent aluminum pipes eliminate restrictive bends
• SellingPoint12: CNC-machined BPV flange on hot-side pipe allows for quick install of stock or stock-style BPVs
• SellingPoint13: Intercooler available in Stealth Black or Sleek Silver finish
• SellingPoint14: Pipes available with a polished silver or wrinkle black finish
• SellingPoint15: N/A
• TechSpec Applications: 2015-2023 Ford Mustang EcoBoost
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: S550
• TechSpec Core Height (in): 5.75
• TechSpec Core Length (in): 21.06
• TechSpec Core Thickness (in): 2.76
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: 2.3L EcoBoost

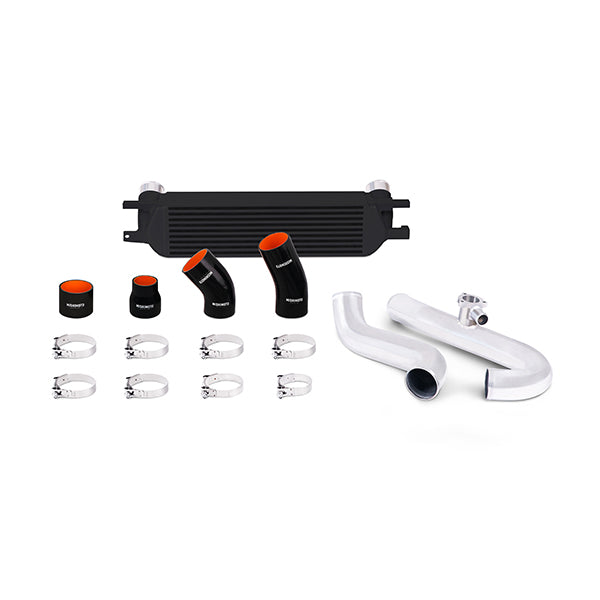

• TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Pipe w/ CNC-Machined NPT Bung--(1) Aluminum Pipe w/ CNC-Machined BPV Flange--(4) Silicone Couplers--(1) 2.0-in T-bolt Clamp--(4) 2.75-in T-bolt Clamps--(3) 3.0-in T-bolt Clamps--(1) M6 x 1.0 x 20mm Flange Bolt--(1) M4 x 0.7 x 12mm Button Head Bolt--(1) M4 Lock Washer--(1) MAP Sensor O-Ring--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.56
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: 550
• TechSpec Note: N/A
• TechSpec Outlet (in): 2.56
• TechSpec Overall Height (in): 6.8
• TechSpec Overall Length (in): 30.3
• TechSpec Overall Width (in): 8
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16.37 x 16.37 x 16.37 inches
• Weight: 29.01 POUNDS
