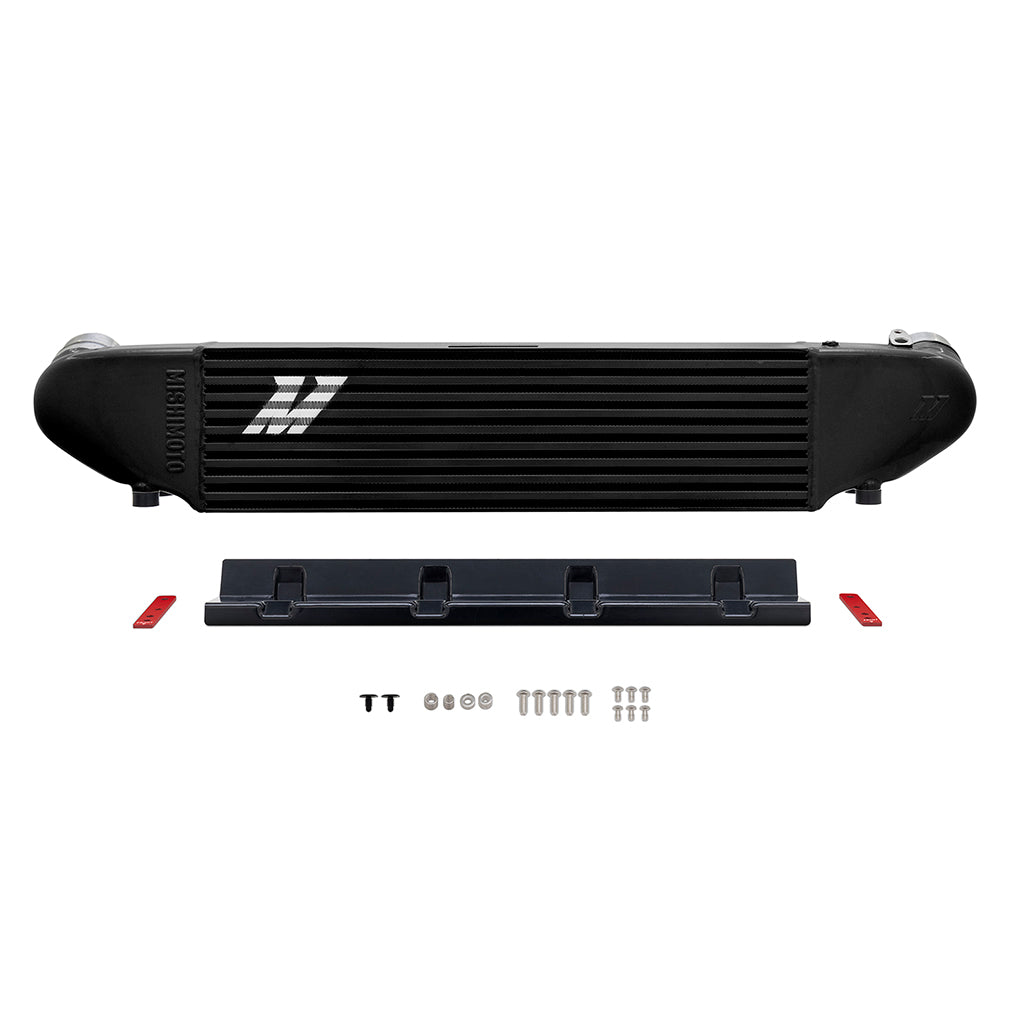

Mishimoto MMINT-MUS4-24BK Intercooler Black Fits Ford Mustang EcoBoost 2024+

Take your 2024+ Ford Mustang EcoBoost to the next level with the Mishimoto Performance Intercooler. Engineered for maximum cooling efficiency and reliability, this direct-fit intercooler is built to handle the demands of spirited driving while remaining safe to run on the stock tune. Featuring a robust bar-and-plate core with cast aluminum end tanks, it delivers improved airflow, reduced intake temperatures, and increased power for your EcoBoost Mustang. -- The Mishimoto intercooler boasts the largest possible core size that can fit in the stock location, providing a 60% increase in core volume compared to the factory unit. Oversized 63mm inlet and outlet diameters outflow the stock system for better charge air movement, while a diverter plate in the hot-side end tank promotes even airflow distribution across the core. Gains of up to 12 horsepower and 11 ft-lbs of torque can be achieved without any tuning required. -- Installation is simple and fully compatible with stock ducting and both OEM and Mishimoto intercooler pipes, with no cutting required. Foam sealing strips ensure maximum airflow through the core, and a custom vacuum-formed bottom air deflector improves underbody flow while reducing NVH thanks to its ribbed structure. To support the increased weight of the larger core, the intercooler mounts directly to the subframe using four EPDM rubber sandwich mounts, isolating vibration and increasing overall rigidity. -- Every intercooler comes equipped with a pre-drilled and tapped NPT sensor port for data logging or the addition of auxiliary sensors. All necessary hardware is included for a straightforward installation. -- The Mishimoto Performance Intercooler for the 2024+ Ford Mustang EcoBoost is built for enthusiasts who want lower intake temps, increased power, and a long-lasting solution to keep their Mustang running strong. Like all Mishimoto products, this intercooler is backed by the Mishimoto Lifetime Warranty.

• Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
• Reduces charged-air temperatures at outlet by up to 60F
• Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197725566
• Core Color: Black
• Core Height: 6.08
• Core Length: 22.83
• Core Material: Aluminum
• Core Thickness: 3.54
• Grade Type: Performance
• Height: 6.5
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 2.44
• Inlet Tank Material: Aluminum
• Install Difficulty: 3
• Length: 35.7
• OptionLabel: Black Cooler
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 2.44
• SellingPoint01: Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
• SellingPoint02: Reduces charged-air temperatures at outlet by up to 60°F
• SellingPoint03: Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp
• SellingPoint04: Maximized core in stock location below the crash bar to maintain even airflow and prevent heat pockets
• SellingPoint05: Mounts to subframe with rubber sandwich mounts for vibration isolation and superior support
• SellingPoint06: Hot-side end tank features diverter plate for even airflow
• SellingPoint07: Foam strips and custom bottom air deflector maximize airflow and reduce noise and vibration levels
• SellingPoint08: Impressive 60% increased core size over stock
• SellingPoint09: Includes all necessary hardware for installation
• SellingPoint10: Available in silver or black for sharp aesthetics behind the grille
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: Ford Mustang EcoBoost 2024+
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: S650
• TechSpec Core Height (in): 6.08
• TechSpec Core Length (in): 22.83
• TechSpec Core Thickness (in): 3.54
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: 2.3L EcoBoost I4
• TechSpec Includes: (1) Mishimoto Performance Intercooler--(1) Deflector Panel Kit--(1) Bracket Kit--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.44
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: 526
• TechSpec Note: N/A
• TechSpec Outlet (in): 2.44
• TechSpec Overall Height (in): 6.5
• TechSpec Overall Length (in): 35.7
• TechSpec Overall Width (in): 5.3
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 12.3
• Type: Bar-and-Plate
• Universal Or Specific Fit: Specific
• Width: 5.3

Extended Information:

• Country of Origin: CN
• Emissions : 2

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 42 x 10.5 x 11.5 inches
• Weight: 23.5 POUNDS
