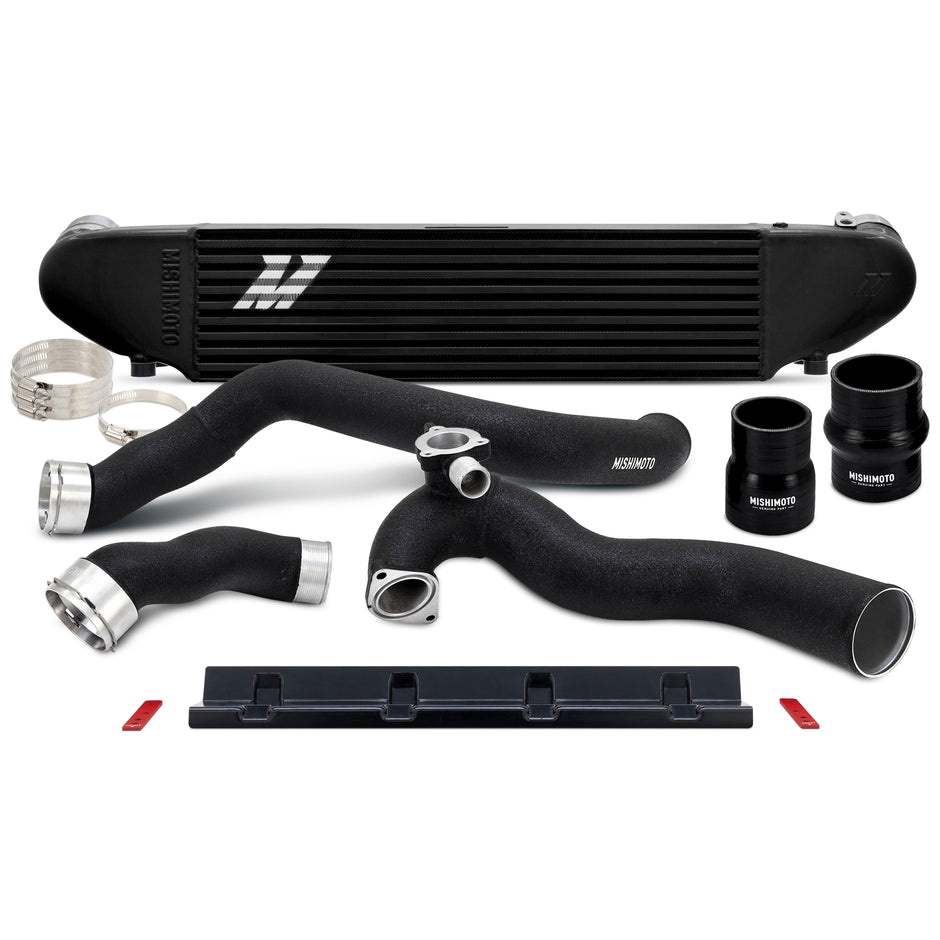

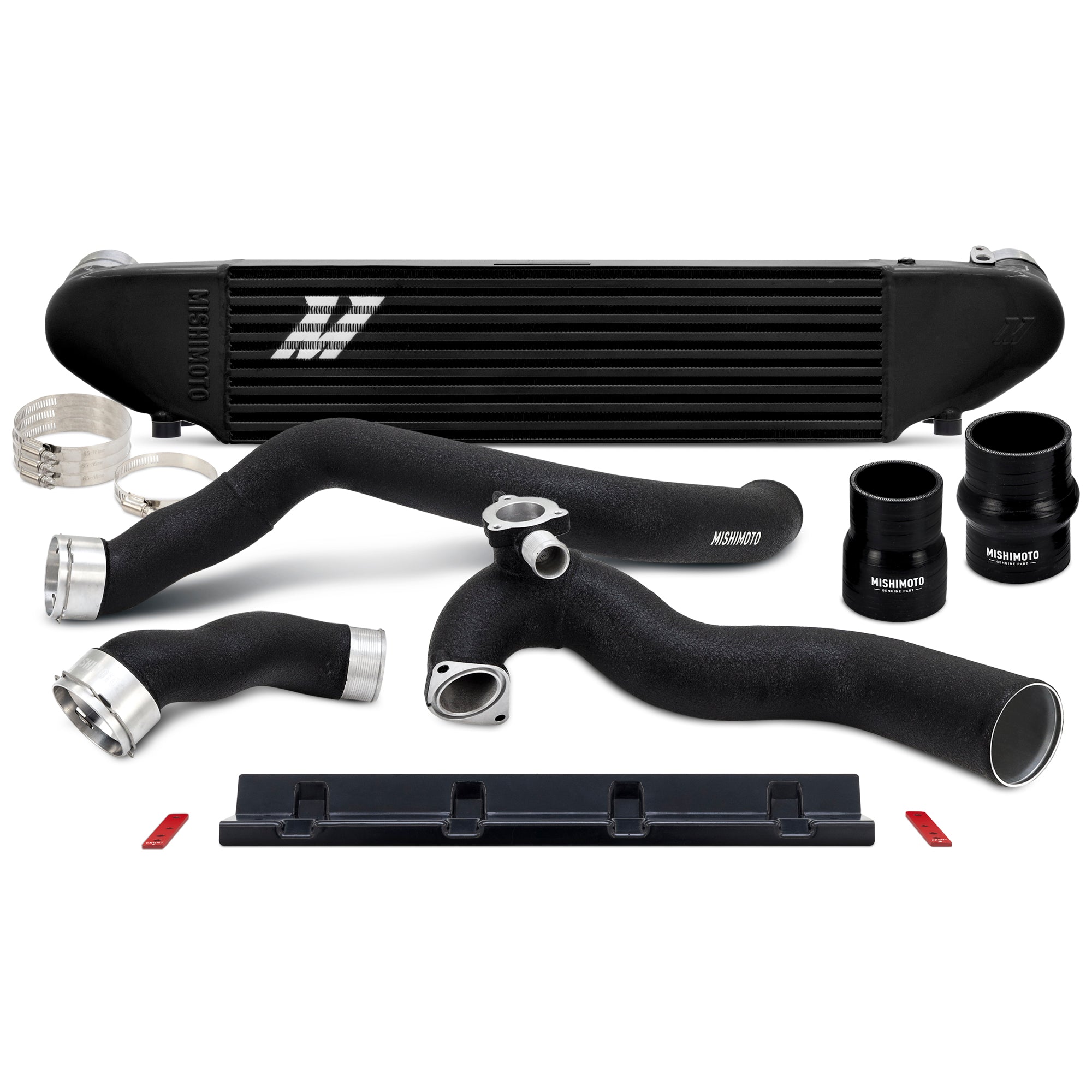

Mishimoto MMINT-MUS4-24KBKBK Intercooler Kit Black/Black Fits Ford Mustang EcoBoost 2024+

Upgrade your 2024+ Ford Mustang EcoBoost with the Mishimoto Intercooler and Pipe Kit, a complete system designed to maximize airflow, lower intake temps, and boost performance. This kit combines a direct-fit bar-and-plate intercooler with high-flow hot-side and cold-side aluminum pipes, delivering safe, tune-free power gains. -- The intercooler features cast aluminum end tanks and fits in the stock location with a 60% increase in core volume. Oversized 63mm inlets/outlets improve flow, while a diverter plate ensures even air distribution. Foam sealing strips and a custom-formed air deflector maximize airflow through the core and reduce NVH. Four EPDM rubber sandwich mounts isolate vibration and add rigidity. Gains of up to 12 hp and 11 ft-lbs of torque are possible with no tuning, and a pre-drilled NPT port allows for auxiliary sensors or data logging. -- The included intercooler pipes are made from durable aluminum with cast connections for strength and precise fitment. A cast turbo outlet elbow integrates the blow-off valve seat and retains factory harness clipping points for a clean install. CNC-machined quick-disconnect fittings, DuraCore(TM) silicone couplers, high-torque worm-gear clamps, and an ID-matched transition coupler ensure secure, high-flow connections. Extra clearance also allows compatibility with the Mishimoto performance radiator. -- Available in polished or wrinkle black finishes, the Mishimoto Intercooler and Pipe Kit provides improved airflow, reduced intake temps, better underhood aesthetics, and long-term durability. Installation is straightforward with all hardware included, and every kit is backed by the Mishimoto Lifetime Warranty.

• Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
• Reduces charged-air temperatures at outlet by up to 60F
• Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197725610
• Cold Side Pipe Inside Diameter: 2.44
• Core Color: Black
• Core Construction: Bar-and-Plate
• Core Height: 6.08
• Core Length: 22.83
• Core Material: Aluminum
• Core Thickness: 3.54
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.44
• Inlet Diameter: 2.44
• Install Difficulty: 3
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 50
• Maximum Horsepower: 526
• OptionLabel: Black Cooler--Black Pipes
• Outlet Diameter: 2.44
• Pipe Color: Black
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
• SellingPoint02: Reduces charged-air temperatures at outlet by up to 60°F
• SellingPoint03: Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp
• SellingPoint04: Maximized core in stock location below the crash bar to maintain even airflow and prevent heat pockets
• SellingPoint05: Designed to mount to subframe with four rubber sandwich mounts for rigidity and vibration isolation
• SellingPoint06: DuraCore™ silicone couplers designed to withstand high temperature and boost pressures
• SellingPoint07: Includes CNC quick-disconnect fittings and high-torque worm-gear clamps for secure fitment
• SellingPoint08: Cast end sections on both pipes provide a smooth transition for maximum airflow and precise fitment
• SellingPoint09: ID-matched transition coupler on cold side for smooth airflow into intercooler
• SellingPoint10: Diverter plate in hot side end tank offers even airflow distribution
• SellingPoint11: Foam strips and custom bottom air deflector maximize airflow and reduce noise and vibration levels
• SellingPoint12: Intercooler available in silver or black for sharp aesthetics behind the grille
• SellingPoint13: Pipes available in polished or wrinkle black finish for a clean underhood look
• SellingPoint14: Mishimoto Lifetime Warranty
• SellingPoint15: N/A
• TechSpec Applications: 2024+ Ford Mustang EcoBoost
• TechSpec Centerline Radius: 3.15
• TechSpec Chassis Codes: S650
• TechSpec Core Height (in): 6.08
• TechSpec Core Length (in): 22.83
• TechSpec Core Thickness (in): 3.54
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: 2.3L EcoBoost I4
• TechSpec Includes: (1) Mishimoto Performance Intercooler--(1) Deflector Panel Kit--(1) Bracket Kit--(2) Hot Side Pipes--(1) Cold Side Pipe--(2) Duracore Couplers--(4) Spring Clamps--(2) O-Rings--(3) Buttonhead Locking Bolts--(1) Tree Clip Zip Tie--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.44
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: 526
• TechSpec Note: N/A
• TechSpec Outlet (in): 2.44
• TechSpec Overall Height (in): 6.5
• TechSpec Overall Length (in): 35.7
• TechSpec Overall Width (in): 5.3
• TechSpec Pipe Diameter: 2.75
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 17
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 21.47 x 21.47 x 21.47 inches
• Weight: 35.5 POUNDS
