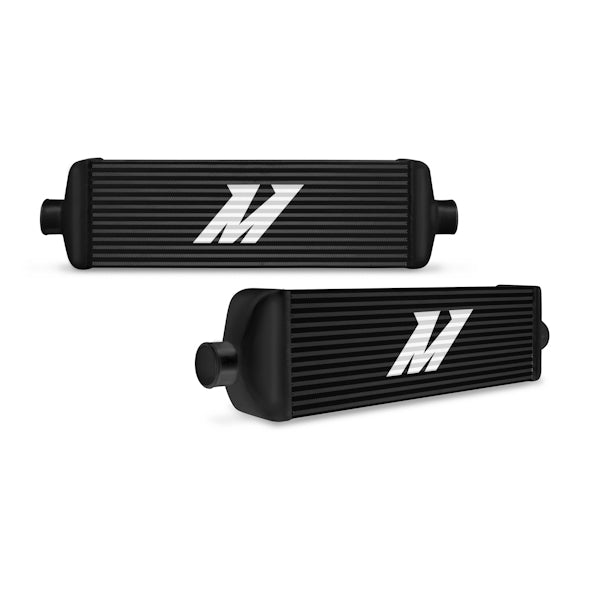

Mishimoto MMINT-UJB Universal Intercooler J-Line Black

A smaller cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size.Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space.In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar.Like all Mishimoto intercoolers, the J-Line is constructed with 6061 aluminum and is TIG welded to perfection.

• Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
• Robust, one-piece cast aluminum end tanks withstand high boost pressures
• Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles

Vehicle Specific

• Universal

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748666003170
• Core Color: Black
• Core Height: 7.2
• Core Length: 22
• Core Material: Aluminum
• Core Thickness: 3.5
• Grade Type: Performance
• Height: 7.5
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 2.5
• Inlet Tank Material: Aluminum
• Install Difficulty: N/A
• Length: 29.5
• OptionLabel: Black
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 2.5
• SellingPoint01: Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
• SellingPoint02: Robust, one-piece cast aluminum end tanks withstand high boost pressures
• SellingPoint03: Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
• SellingPoint04: Constructed with 6061 aluminum
• SellingPoint05: Available in Sleek Silver, Stealth Black, or Bold Gold
• SellingPoint06: Mishimoto Lifetime Warranty
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 7.2
• TechSpec Core Length (in): 22
• TechSpec Core Thickness (in): 3.5
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: N/A
• TechSpec Includes: (1) Mishimoto Intercooler--(2) M12X1.25-14 Bolts--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.5
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 40
• TechSpec Maximum Recommended Horsepower: 500
• TechSpec Note: N/A
• TechSpec Outlet (in): 2.5
• TechSpec Overall Height (in): 7.5
• TechSpec Overall Length (in): 29.5
• TechSpec Overall Width (in): 3.75
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 18.7
• Type: Bar-and-Plate
• Universal Or Specific Fit: Specific
• Width: 3.75

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 31.5 x 5.25 x 9 inches
• Weight: 19.9 POUNDS
