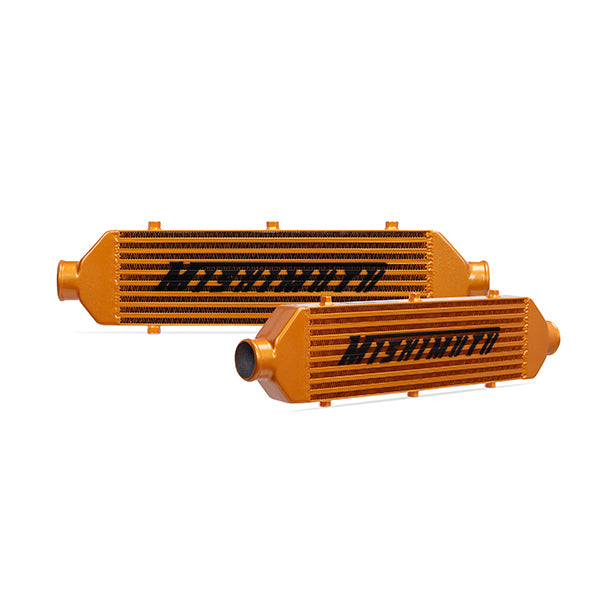

Mishimoto MMINT-UZG Universal Intercooler Z-Line Gold

Sleek and stylish, this universal front-mount intercooler will provide the perfect cooling capacity needed for larger turbo applications. All Mishimoto intercoolers are constructed of 6061 aluminum and are TIG welded to perfection. Note: For your taste, only one side of the intercooler has the Mishimoto logo.

• All-aluminum construction with bar-and-plate core
• TIG-welded end tanks for increased strength and durability
• 6 threaded mounting points for universal fitment

Vehicle Specific

• Universal

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354019728
• Core Color: Gold
• Core Height: 6.25
• Core Length: 20.5
• Core Material: Aluminum
• Core Thickness: 2.5
• Grade Type: Performance
• Height: 7.5
• Inlet Fitting Gender: Male
• Inlet Outside Diameter: 2.5
• Inlet Tank Material: Aluminum
• Install Difficulty: 3
• Length: 28
• OptionLabel: Gold
• Outlet Fitting Gender: Male
• Outlet Outside Diameter: 2.5
• SellingPoint01: All-aluminum construction with bar-and-plate core
• SellingPoint02: TIG-welded end tanks for increased strength and durability
• SellingPoint03: 6 threaded mounting points for universal fitment
• SellingPoint04: Rated to 22 PSI
• SellingPoint05: Available in Sleek Silver, Stealth Black, or Bold Gold
• SellingPoint06: Mishimoto Lifetime Warranty
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 6.25
• TechSpec Core Length (in): 20.5
• TechSpec Core Thickness (in): 2.5
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: N/A
• TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.5
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 22
• TechSpec Maximum Recommended Horsepower: 500
• TechSpec Note: Mounting point thread pitch is M12x1.25
• TechSpec Outlet (in): 2.5
• TechSpec Overall Height (in): 7.5
• TechSpec Overall Length (in): 28
• TechSpec Overall Width (in): 2.5
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Type: Bar-and-Plate
• Universal Or Specific Fit: Specific
• Width: 2.5

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30.3 x 10.1 x 4.6 inches
• Weight: 11.8 POUNDS
