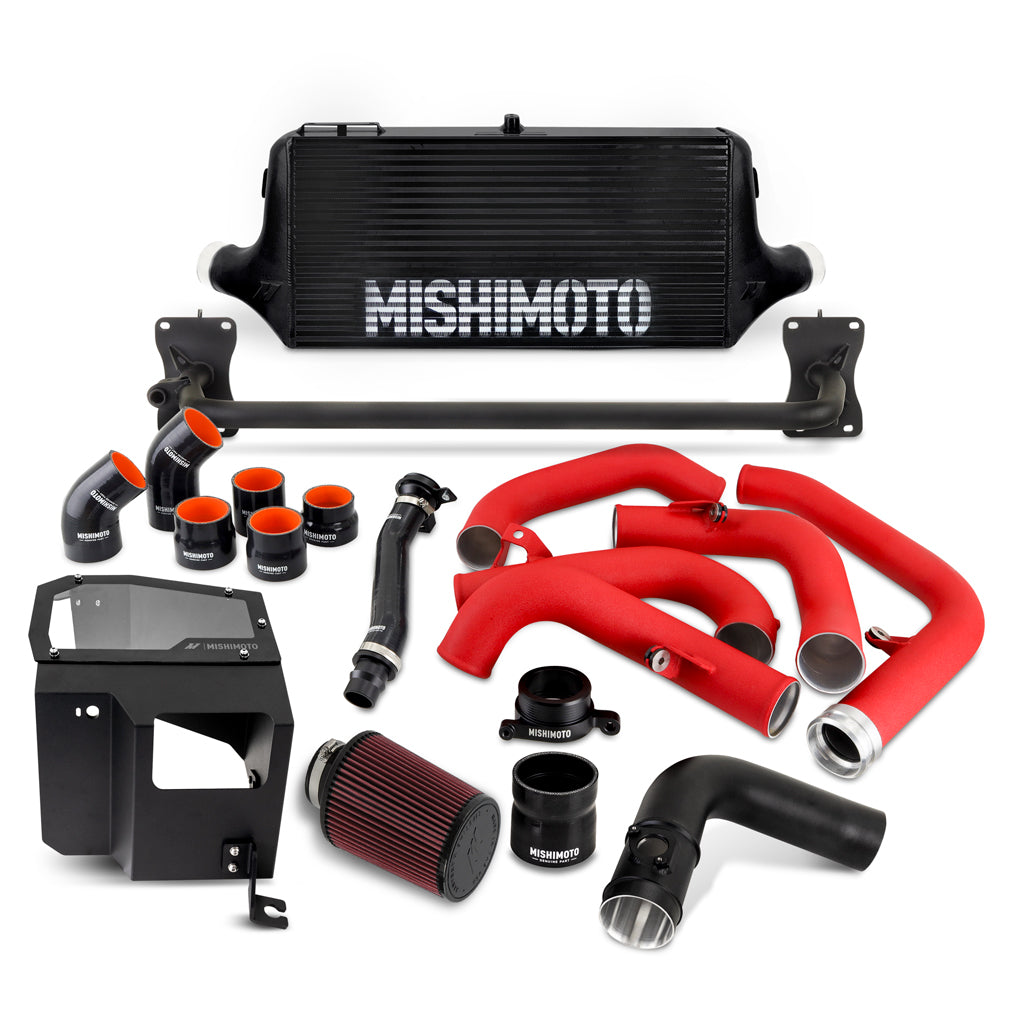

Mishimoto MMINT-WRX-22AIBKRD Front Mount Intercooler Kit W/ Intake Fits Subaru WRX 2022+

For 2022+ WRX owners looking to take the next step in performance, look no further than Mishimoto's Performance Front-Mount Intercooler Kit. Whether you're building your WRX for the track, dragstrip, or the road, upgrading your WRX's intercooler is an absolute must. Designed with a massive core, CFD-optimized cast end tanks, and high-flow pipes, this intercooler offers gains of 12 hp and 11.8 lb-ft torque.----The front mounting location of this kit places the intercooler in the lower bumper grille for maximum airflow through the core, making this system ideal for high-performance builds. In dyno testing, our intercooler was able to bring outlet temperatures to within 10-degrees of ambient air temp, ensuring safe power run after run, even on the stock tune. CFD-optimized end tanks, ID-matched pipes, and a high-flow, 4 inch-thick core result in a 1.5 PSI pressure drop, so less of the boost your turbo makes is wasted. This kit includes our Mishimoto Performance intake for maximum airflow and an easy install.----Performance is great, but if you have to destroy your car for it, it's useless. Our kit contains everything needed for installation with no cutting of the bumper or body required. Our intercooler kit also retains the factory side impact bars and includes a bumper support bar with factory tow hook mounting for safety on the track and the street. The included washer fill neck relocation kit keeps maintenance easy, while allowing for a clean install.----So, If you're ready to ditch your stock, heat-soak-prone intercooler, it's time to upgrade to the Mishimoto Performance Front Mount Intercooler Kit. Designed for dependable performance and backed by Mishimoto's Lifetime Warranty, our 2022+ WRX front mount intercooler kit is the perfect choice for bringing your WRX to the next level.

• Fits 2022+ Subaru WRX
• Max power gains of 12 HP and 11.8 lb-ft. of torque on stock tune
• Lowers outlet temperatures to within 10-degrees of ambient air temp

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197721131
• Cold Side Pipe Inside Diameter: 2.4
• Core Color: Black
• Core Construction: Bar-and-Plate
• Core Height: 12.14
• Core Length: 26.57
• Core Material: Aluminum
• Core Thickness: 3.93
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 2.4
• Inlet Diameter: 2.4
• Install Difficulty: 3
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 60
• Maximum Horsepower: 1000
• OptionLabel: Black Cooler--Red Pipes
• Outlet Diameter: 2.4
• Pipe Color: Red
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Max power gains of 12 HP and 11.8 lb-ft. of torque on stock tune
• SellingPoint02: Lowers outlet temperatures to within 10-degrees of ambient air temp
• SellingPoint03: 4-inch thick core protects against heat soak and detonation
• SellingPoint04: Includes Mishimoto Performance Intake for maximum flow and easy install
• SellingPoint05: Includes bumper support bar with tow hook location to keep your WRX track-ready
• SellingPoint06: Comprehensive kit includes everything needed for installation
• SellingPoint07: Safe for use with stock tuning
• SellingPoint08: ID-matched pipes and intercooler ensure unrestricted airflow and low pressure drop
• SellingPoint09: Built-in crash bar hooks make installation a one-person job
• SellingPoint10: Cast end tanks withstand massive boost pressures
• SellingPoint11: Includes washer fill neck relocation for easy maintenance
• SellingPoint12: No bending of A/C lines required
• SellingPoint13: Fits with most popular strut bars
• SellingPoint14: Patent Pending
• SellingPoint15: Mishimoto Lifetime Warranty
• TechSpec Applications: Subaru WRX 2.4L H4 2022+
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: VB
• TechSpec Core Height (in): 12.14
• TechSpec Core Length (in): 26.57
• TechSpec Core Thickness (in): 3.93
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: FA24F
• TechSpec Includes: (1) Front Mount Intercooler--(1) Pipe and Boot Kit with Adaptors--(1) Performance Intake Kit--(1) Bumper Support Bar--(1) Washer Fluid Fill Neck Relocation-- Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.4
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 60
• TechSpec Maximum Recommended Horsepower: 1000
• TechSpec Note: N/A
• TechSpec Outlet (in): 2.4
• TechSpec Overall Height (in): 12.89 (intercooler)
• TechSpec Overall Length (in): 40.22 (intercooler)
• TechSpec Overall Width (in): 6 (intercooler)
• TechSpec Pipe Diameter: 2.5
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Status Pending

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.76 x 26.76 x 26.76 inches
• Weight: 59.46 POUNDS
