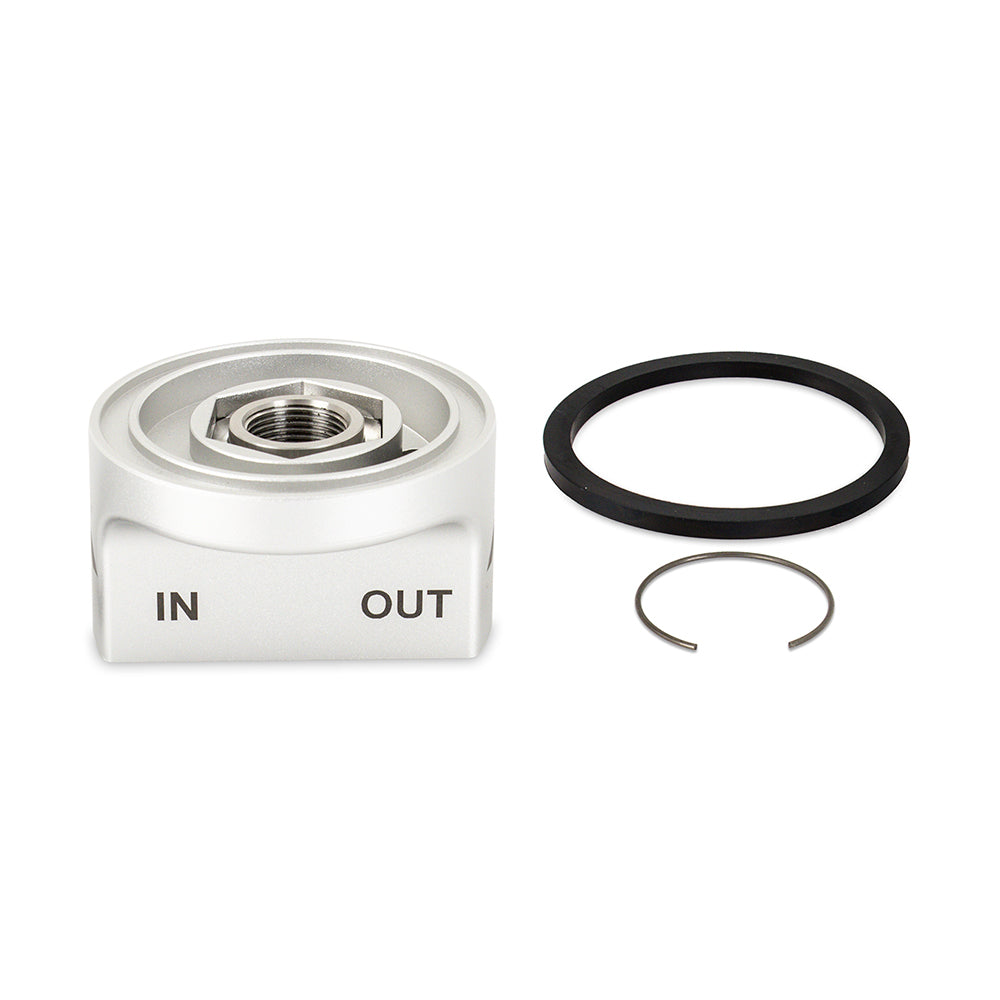

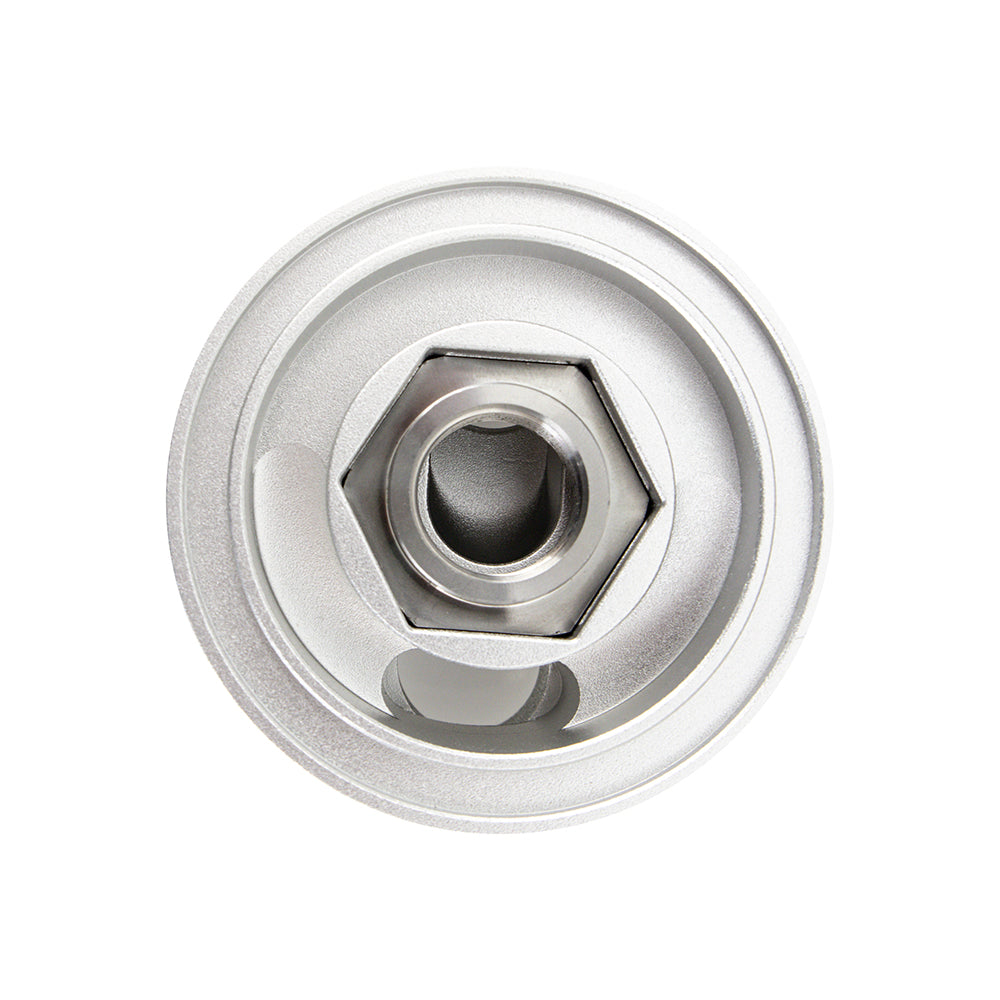

Mishimoto MMOC-FTO-34IN Remote Oil Filter Take-Off Plate 3/4-16

Oil filter relocation is a great way to address issues created by a confined engine bay, improve ground clearance to your filter, upgrade to a large-format filter, or simply make your oil changes more manageable. If you need components to relocate your filter, Mishimoto has everything needed to make the process simple. One of the core components needed for relocation is this Oil Filter Take-Off Plate. This vital piece of the puzzle replaces your existing oil filter with a housing that incorporates oil line ports to re-route oil to your new filter location. Mishimoto's Remote Oil Filter Take-Off Plate was designed using the latest in 3D printing technology and CAD modeling, then precision CNC-machined from a billet of 6061 aluminum to create a versatile and durable take-off plate. This unit features M22 X 1.5 ORB inlet/outlet ports for use with our Mishimoto Remote Oil Filter Fittings . These ports utilize a robust O-ring seal, ensuring a leak-free connection. This Oil Filter Take-Off Plate is also available in most standard oil filter thread sizes. The Mishimoto Remote Oil Filter Take-Off Plate features a durable black anodized finish, ensuring maximum corrosion resistance in harsh environments. As with all our products, this take off plate includes our signature Mishimoto Lifetime Warranty.

• Replaces engine oil filter and provides ports for adding a remote oil filter system
• CNC-machined billet 6061 aluminum
• Female M22 X 1.5 inlet/outlet ports for use with our Mishimoto Remote Oil Filter Fittings

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197706466
• Base Height: 1.75
• Color: Silver
• Core Color: Silver
• Core Height: 0
• Core Row Quantity: 0
• Core Thickness: 0
• Core Type: Bar-and-Plate
• Core Width: 0
• Finish: Anodized
• Fluid Capacity: 0
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Fitting Type: AN Flare
• Inlet Outside Diameter: 0.866
• Install Difficulty: 3
• OptionLabel: 3/4-16
• Outlet Fitting Gender: Male
• Outlet Fitting Type: AN Flare
• Outlet Outside Diameter: 0.866
• SellingPoint01: Replaces engine oil filter and provides ports for adding a remote oil filter system
• SellingPoint02: CNC-machined billet 6061 aluminum
• SellingPoint03: Female M22 X 1.5 inlet/outlet ports for use with our Mishimoto Remote Oil Filter Fittings
• SellingPoint04: Features a robust nitrile O-ring for leak-free operation
• SellingPoint05: Available with multiple center adapter threads to fit most oil filter housings
• SellingPoint06: Designed using the latest in 3D printing and CAD modeling software
• SellingPoint07: Silver anodized finish prevents corrosion
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
• TechSpec Chassis Codes: N/A
• TechSpec Core Construction: N/A
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (qts): N/A
• TechSpec Includes: Oil Filter Take-Off Plate--Pedestal O-ring--Center Adapter--Center Adapter Locking Ring--Mishimoto Lifetime Warranty
• TechSpec Inlet: M22 X 1.5
• TechSpec Installation Notes: N/A
• TechSpec Note: Additional components are necessary to install a remote oil filter system:--Mishimoto Remote Oil Filter Mount--Mishimoto Remote Oil Filter Fittings--Mishimoto Braided Oil Lines----
• TechSpec Outlet: M22 X 1.5
• TechSpec Overall Height (in): 1.75
• TechSpec Overall Length (in): 3
• TechSpec Overall Width (in): 3
• TechSpec Rows: N/A
• Width: 3

Extended Information:

• Country of Origin: China
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.6 x 3.6 x 2.2 inches
• Weight: 1.6 POUNDS
