Mishimoto MMOC-GTO-04T Oil Cooler Kit Silver Thermostatic Fits Pontiac GTO 2004-2006

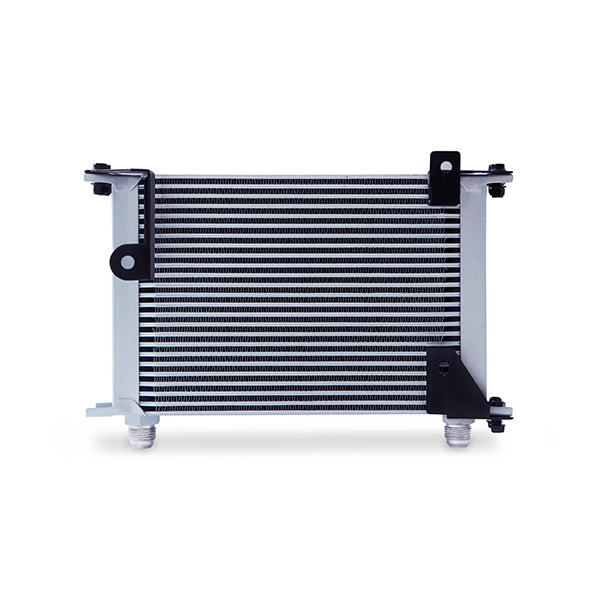

LS series engines are simple, powerful, reliable machines, but no engine can deal with high oil temperatures. To cool the GTO's massive engine, we picked our largest oil cooler for the job. The 25-row stacked-plate cooler will have no problem making sure oil is at an optimal temperature. On the other end of this GTO oil cooler kit is a specially designed oil line adapter that bolts to the oil filter housing to allow for the attachment of our --AN stainless steel lines. The tight space restrictions eliminated the possibility of using a thermostatic sandwich plate, which we use on most of our other direct-fit oil cooler kits. Instead our In-line Oil Thermostat is used to regulate oil temperatures. This meticulously designed thermostat mounts under the headlight by means of its own direct-fit bracket, and will make sure your oil stays at a happy 185 F. During the testing process of this GTO oil cooler, the in-line thermostat was not used in order to eliminate it as a regulating variable. This means oil is constantly flowing through the cooler during testing, and these tests showed a 65 F oil temperature drop. This massive drop shows the cooling capabilities of this GTO oil cooler kit. Just like all of Mishimoto's GTO parts, this kit comes with the Mishimoto Lifetime Warranty to make sure your oil temperatures are always on point.

• Reduces oil temperatures by 65F (without in-line thermostat installed)
• Mishimoto In-Line Oil Thermostat maintains optimum 185F oil temperature
• Minimal pressure drop

Vehicle Specific

• 2004-2006 Pontiac GTO 2001-2005 Holden Monaro (V2 VC8 & VZ) 1999-2006 Holden Commodore (VT, VX, VY & VZ) 1999-2006 Holden Commodore Ute 1999-2006 Holden Statesman (WH
• WK, WL) 1999-2006 Holden Caprice (WH, WK, WL) 2001-2006 Vauxhall Monaro

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354027310
• Base Height: 0
• Color: Silver
• Core Color: Silver
• Core Height: 7.32
• Core Row Quantity: 0
• Core Thickness: 1.97
• Core Type: Bar-and-Plate
• Core Width: 11
• Finish: Anodized
• Fluid Capacity: 0
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Fitting Type: AN Flare
• Inlet Outside Diameter: 0
• Install Difficulty: 3
• OptionLabel: Silver
• Outlet Fitting Gender: Male
• Outlet Fitting Type: AN Flare
• Outlet Outside Diameter: 0
• SellingPoint01: Direct fit for the 2004-2006 Pontiac GTO
• SellingPoint02: Reduces oil temperatures by 65F (without in-line thermostat installed)
• SellingPoint03: Mishimoto In-Line Oil Thermostat maintains optimum 185F oil temperature
• SellingPoint04: Minimal pressure drop
• SellingPoint05: Application-specific mounting brackets
• SellingPoint06: 25-row stacked-plate oil cooler mounted in upper kidney grille for optimum airflow
• SellingPoint07: Includes CNC-machined application-specific oil adapter
• SellingPoint08: Pre-made stainless steel braided oil lines with durable -AN fittings
• SellingPoint09: Cooler available in either Sleek Silver or Stealth Black
• SellingPoint10: Increases oil capacity by 1.0 qt
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2001-2005 Holden Monaro (V2 VC8 & VZ)--1999-2006 Holden Commodore (VT, VX, VY & VZ)--1999-2006 Holden Commodore Ute--1999-2006 Holden Statesman (WH, WK, WL)--1999-2006 Holden Caprice (WH, WK, WL)--2001-2006 Vauxhall Monaro
• TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
• TechSpec Chassis Codes: V-Body
• TechSpec Core Construction: N/A
• TechSpec Core Height (in): 7.32
• TechSpec Core Length (in): 11
• TechSpec Core Thickness (in): 1.97
• TechSpec Engine Codes: LS-1--LS-2
• TechSpec Fluid Capacity (qts): N/A

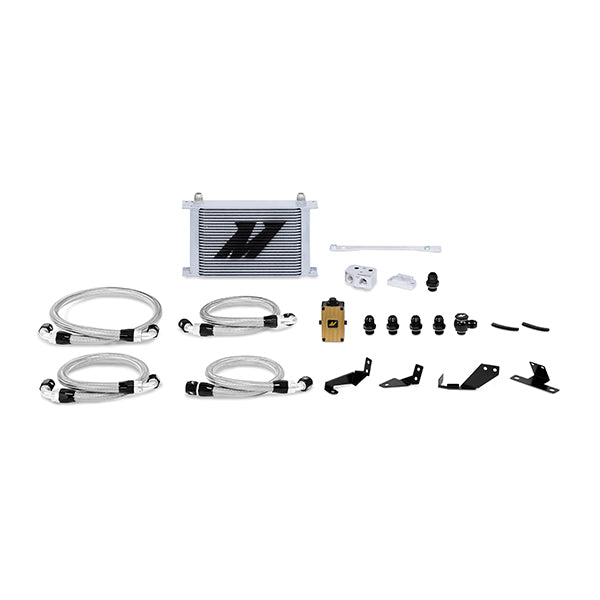

• TechSpec Includes: Application-Specific Mounting Brackets--25-Row Oil Cooler--Mishimoto In-Line Oil Thermostat--In-Line Oil Thermostat Mounting Bracket--Mishimoto LS1/LS2 Oil Cooler Adapter--2-ft, 1-in Stainless Steel Braided Hose w/ 45 and Straight -10AN Fittings--2-ft, 2-in Stainless Steel Braided Hose w/ 90 -10AN Fittings--2-ft, 2.5-in Stainless Steel Braided Hose w/ 45 & 120 -10AN Fittings--3-ft, Stainless Steel Braided Hose w/ 90 -10AN Fittings--Banjo Fitting w/ Bolt M20 x -10AN, Black--M20 x -10AN Straight Fitting, Black--Mounting Hardware Set--Mishimoto Lifetime Warranty
• TechSpec Inlet: N/A
• TechSpec Installation Notes: Torque adapter bolts to between 108 in-lbs and 120 in-lbsRecommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 lb-ft It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, please contact us.
• TechSpec Note: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, please contact us.
• TechSpec Outlet: N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Rows: 25
• Width: 0

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.89 x 14.89 x 14.89 inches
• Weight: 12.19 POUNDS
