Mishimoto MMOC-MIA-19TBK Oil Cooler Kit Black Thermostatic Fits Mazda Miata 2019+

Introducing the Mishimoto 2019 + Mazda Miata ND2 Oil Cooler Kit. We all know that these Miatas will find their way to track, so Mishimoto developed a direct-fit Miata oil cooler kit to keep oil temperatures in check. The ND2 Miata received numerous improvements during its transition from the ND1, including a nice bump in top-end power. Another addition to the ND2 was a liquid-to-liquid oil cooler/warmer. A commonplace component, this unit uses engine coolant to warm up oil during cold starts and keep it cool during aggressive driving. Unfortunately, we've found that these coolers often sacrifice cooling performance when the engine is pushed for long periods.----The Mishimoto Miata oil cooler kit remedies this by removing the liquid-to-liquid cooler and replacing it with a 19-row stacked-plate oil cooler. Application-specific brackets place the cooler directly in front of the radiator for maximum airflow while -10AN braided stainless-steel lines carry oil to the cooler via a direct-fit sandwich plate and adapter. With this kit installed, Mishimoto engineers saw consistent temperature decreases of up to 57-degees (29.5-degrees C) using our non-thermostatic sandwich plate.----This oil cooler kit is available in a sleek silver or stealth black powder-coated finish with your choice of either the Mishimoto thermostatic oil sandwich plate or the Mishimoto non-thermostatic oil sandwich plate. As with all our products, the Mishimoto 2019+ Miata ND2 Oil Cooler Kit comes with the Mishimoto Lifetime Warranty.

• Eliminates factory liquid-to-liquid oil cooler for improved efficiency
• 19-row stacked-plate oil cooler drops temperatures by up to 57F (29.5C)
• Increases oil capacity by 0.75 qt for improved cooling capacity

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197718070
• Base Height: 0
• Color: Black
• Core Color: Black
• Core Height: 5.43
• Core Row Quantity: 0
• Core Thickness: 1.97
• Core Type: Bar-and-Plate
• Core Width: 11
• Finish: Anodized
• Fluid Capacity: 0.75
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Fitting Type: AN Flare
• Inlet Outside Diameter: 0
• Install Difficulty: 3
• OptionLabel: Black Cooler Thermostatic
• Outlet Fitting Gender: Male
• Outlet Fitting Type: AN Flare
• Outlet Outside Diameter: 0
• SellingPoint01: Direct fit for 2019+ Mazda Miata ND2
• SellingPoint02: Eliminates factory liquid-to-liquid oil cooler for improved efficiency
• SellingPoint03: 19-row stacked-plate oil cooler drops temperatures by up to 57F (29.5C)
• SellingPoint04: Increases oil capacity by 0.75 qt for improved cooling capacity
• SellingPoint05: Application-specific mounting brackets position the cooler for optimal airflow
• SellingPoint06: Aluminum brackets for light weight
• SellingPoint07: Direct-fit stainless-steel braided oil lines with durable -AN fittings
• SellingPoint08: Billet-aluminum oil sandwich plate
• SellingPoint09: Available thermostatic option recommended for daily-driven vehicles
• SellingPoint10: Non-thermostatic option recommended for hot climates or dedicated race vehicles
• SellingPoint11: Cooler available in either Sleek Silver or Stealth Black
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2019+ Mazda Miata ND2
• TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
• TechSpec Chassis Codes: ND2
• TechSpec Core Construction: Stacked-Plate
• TechSpec Core Height (in): 5.43
• TechSpec Core Length (in): 11
• TechSpec Core Thickness (in): 1.97
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (qts): 0.75

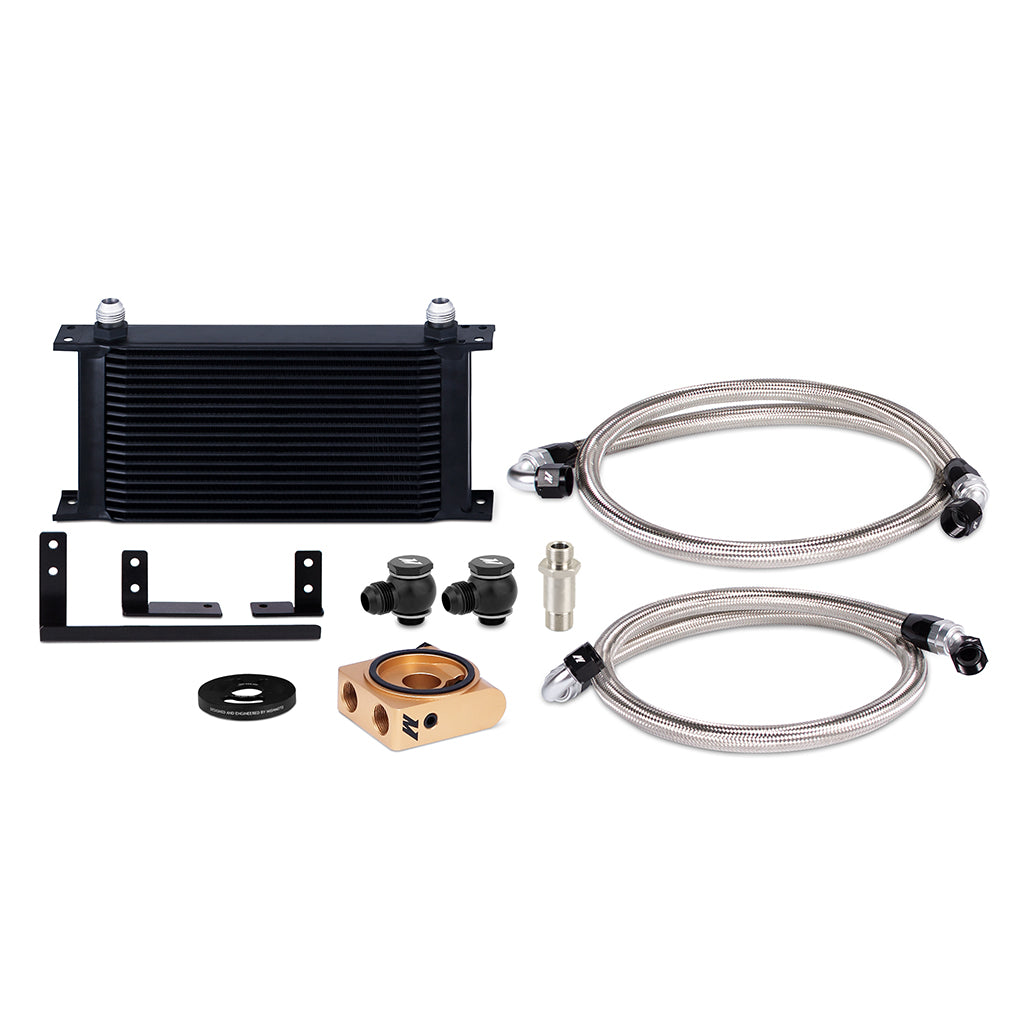

• TechSpec Includes: (3) Mounting Brackets--(1) 19-Row Oil Cooler--(2) Braided Stainless-Steel Lines--(1) Oil Sandwich Plate--(1) Stainless-Steel Sandwich Plate Adapter--(1) Sandwich Plate Spacer--(2) O-rings--(2) Sandwich Plate Banjo Fittings--(1) Allen Key--(1) Hose Connector Barb--Mounting Hardware
• TechSpec Inlet: N/A
• TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ft. Do not exceed the maximum torque rating of 35 ft-lb
• TechSpec Note: N/A
• TechSpec Outlet: N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Rows: 19
• Width: 0

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11.88 x 11.88 x 11.88 inches
• Weight: 9.55 POUNDS
